BulletinTSB2703
Issue Date
September 2, 2009
Title
INITIAL CALIBRATION OF COMPASS DURING PDS
Component
GENERAL INFORMATION
Models
'10 SC430
INTRODUCTION:
2010 model year SC 430 vehicles without navigation system are equipped with a compass in the instrument cluster. Use the following procedure to complete initial calibration of the compass during Pre-Delivery Service (PDS).

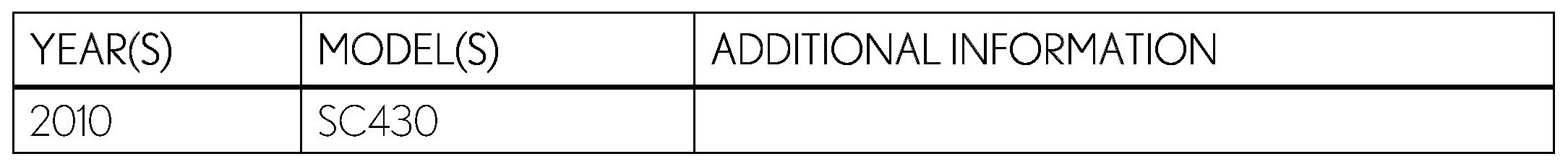

APPLICABILITY:

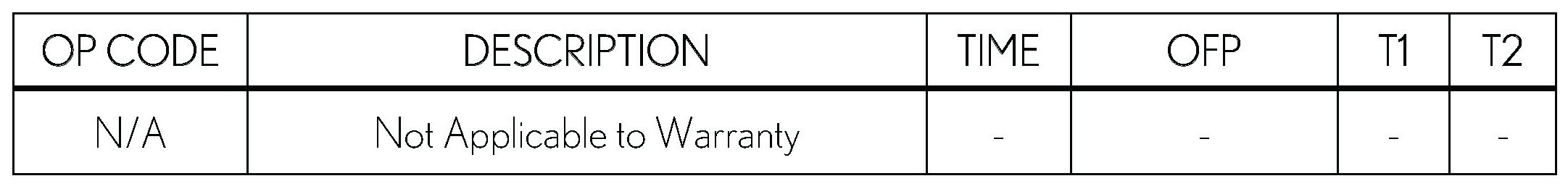

WARRANTY INFORMATION:
INITIAL CALIBRATION PROCEDURE:
1. Cycle the ignition switch to the "IG-ON" position and check that the direction (N, NE, E, SE, S, SW, W, NW) appears on the compass display.
2. Push and hold the "ODO/TRIP" and "RESET" buttons simultaneously for 3 seconds until the zone number (1-15) appears on the compass display. Then push the "RESET" button to select the number of the zone where the vehicle is located.

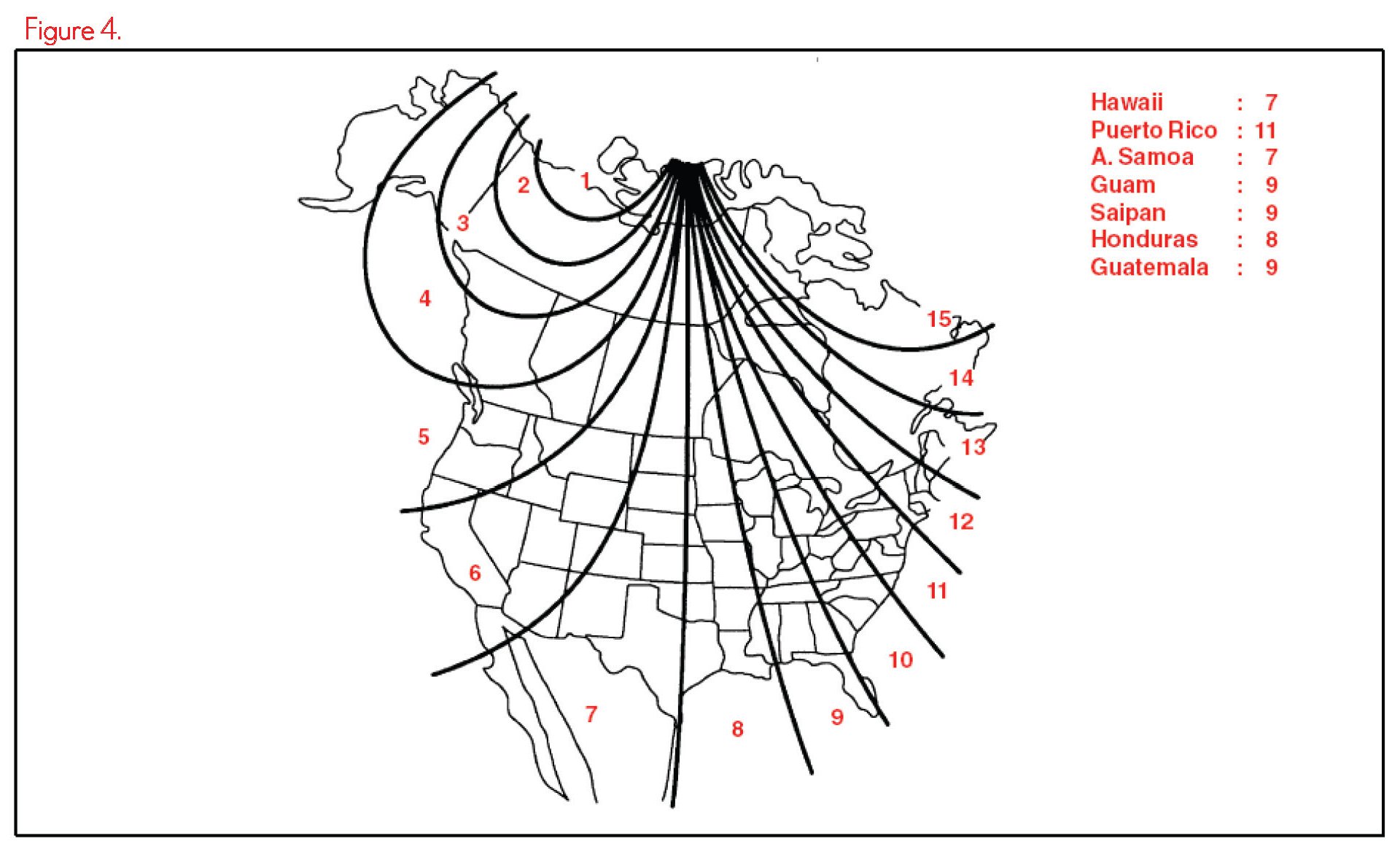

See the map in figure 4 for zone reference.
3. Start the engine and push the "ODO/TRIP" button until "-- --" blinks on the compass display.
4. Drive the vehicle slowly at 8km/h (5 mph) , or less, in a circle until the direction is displayed. If there is NOT enough space to drive in a circle, drive around the block until the direction is displayed.
Once the direction is displayed, the calibration is complete.
NOTE
- Do NOT perform calibration of the compass in a place where the Earth's magnetic field is subject to interference (underground parking, under a steel tower, between buildings, roof parking, near a railroad crossing, near a large vehicle, etc.)
- During calibration, do NOT operate electric systems (sliding roof, power windows, etc.) as they may interfere with the calibration.
- To cancel the calibration before it is complete, push the "ODO/TRIP" button.
