Reassembly





METER: COMBINATION METER: REASSEMBLY

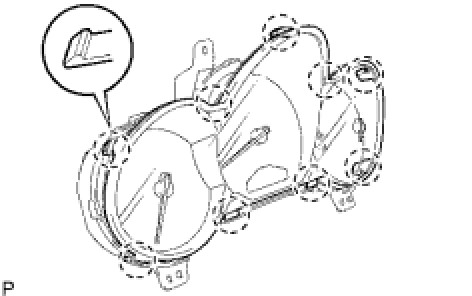

1. INSTALL COMBINATION METER GLASS





(a) Attach the 9 claws to install the glass.
