Disassembly





METER: COMBINATION METER: DISASSEMBLY

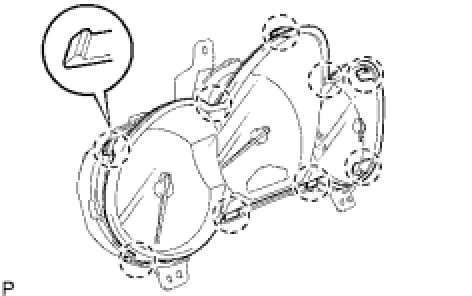

1. REMOVE COMBINATION METER GLASS





(a) Detach the 9 claws and remove the glass.
