Meter / Gauge System

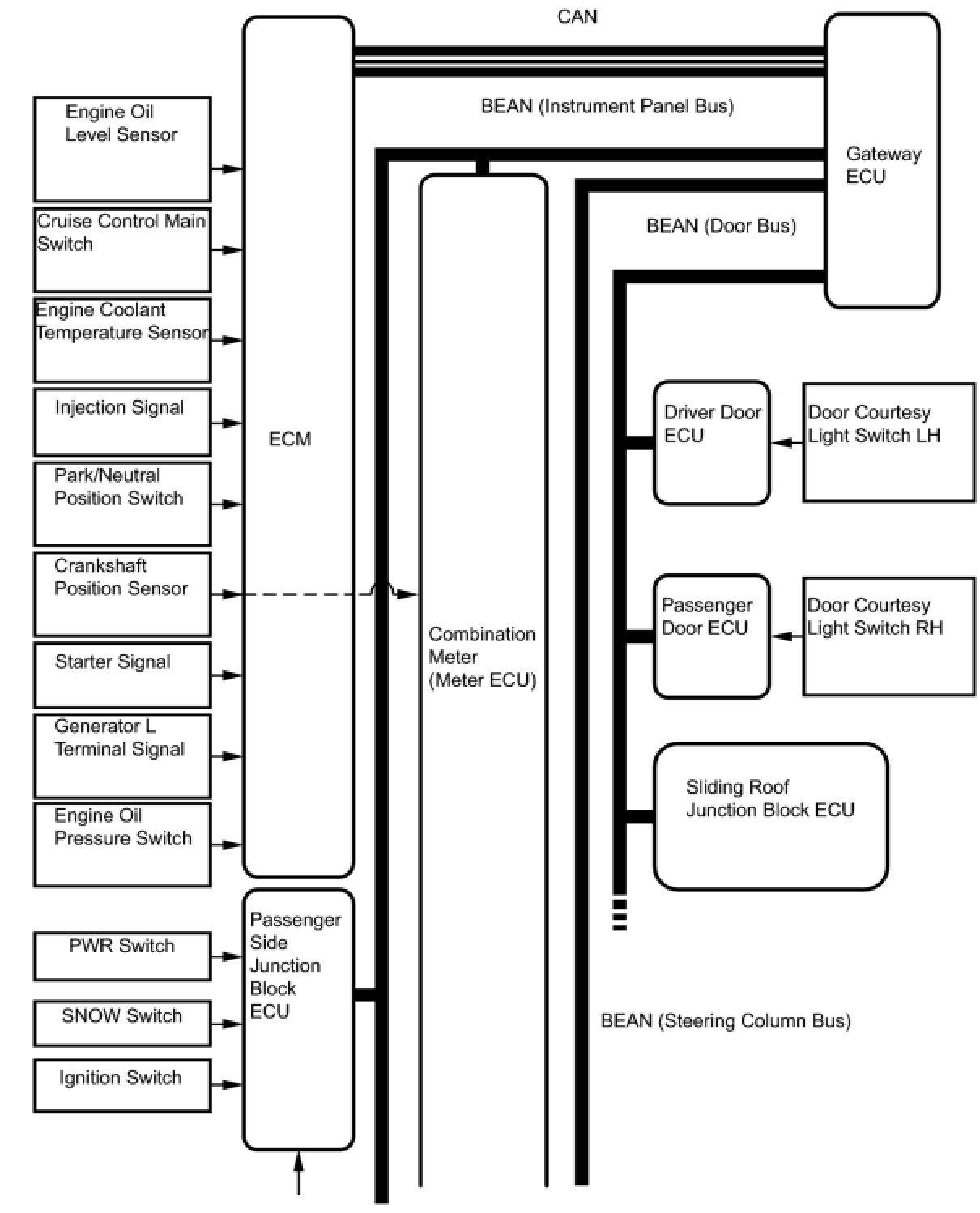

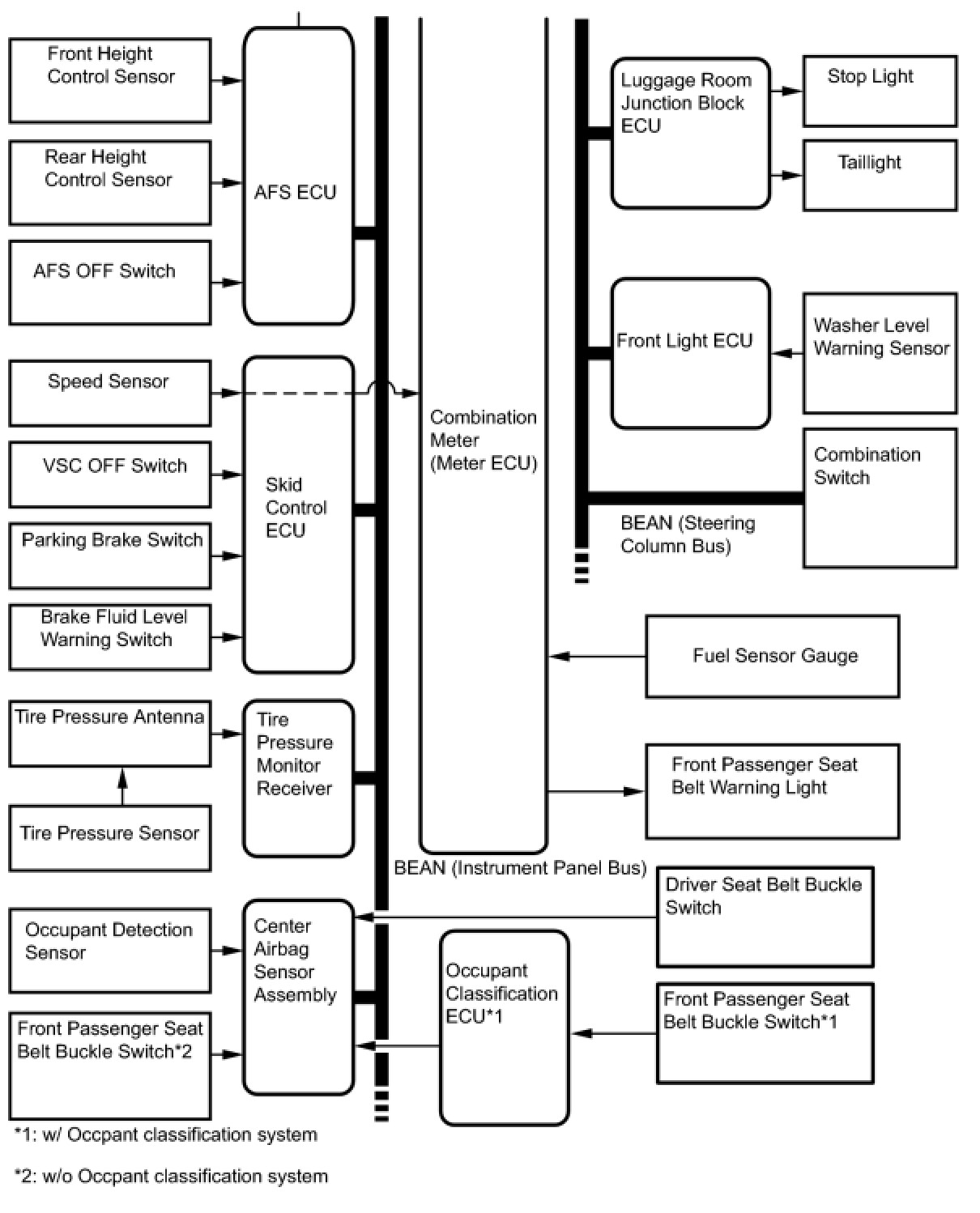

METER: METER / GAUGE SYSTEM: SYSTEM DIAGRAM














METER: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION

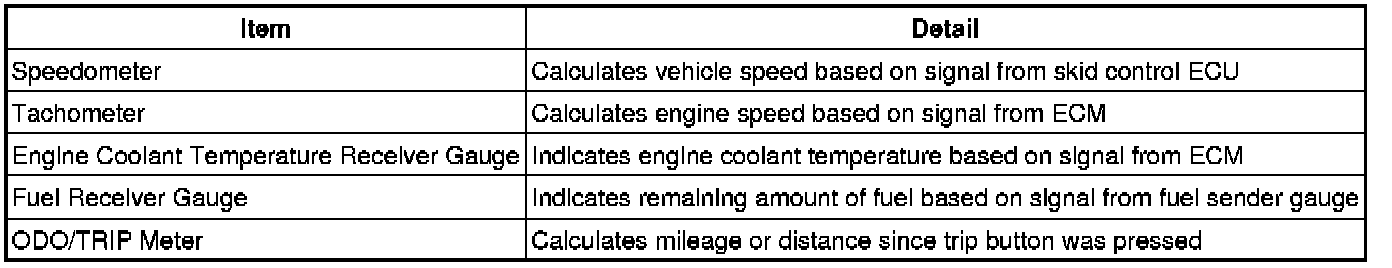

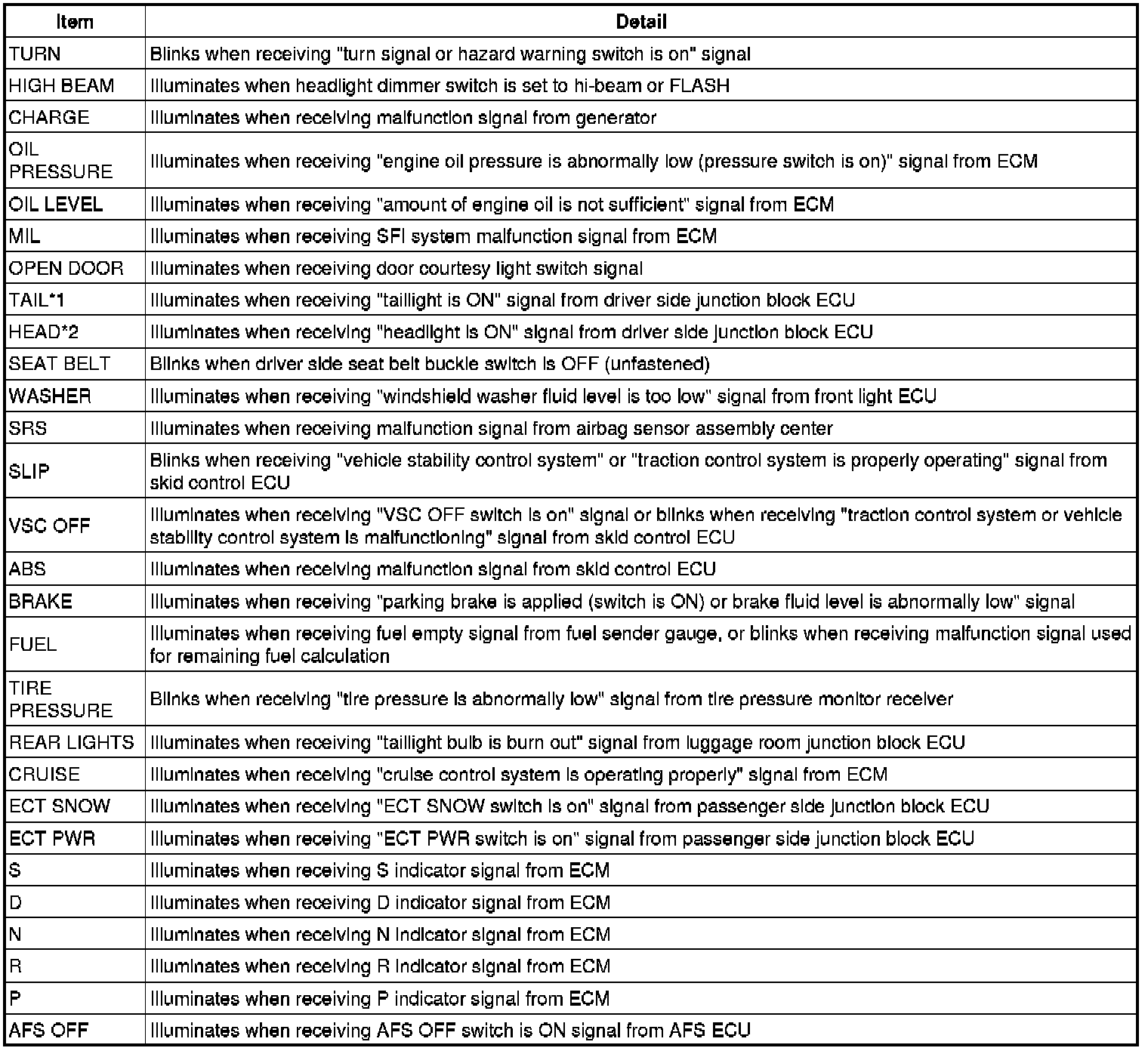

1. METER GAUGE WARNING LIGHT/INDICATOR









HINT
*1: w/ Taillight

*2: w/ Headlight
