Key Reminder Warning System

DOOR LOCK: KEY REMINDER WARNING SYSTEM: SYSTEM DIAGRAM










DOOR LOCK: KEY REMINDER WARNING SYSTEM: SYSTEM DESCRIPTION

1. KEY REMINDER WARNING SYSTEM DESCRIPTION

When the driver door is opened with the ignition switch on ACC or OFF, the system sounds a buzzer to warn the driver that the key has not been removed from the ignition key cylinder.

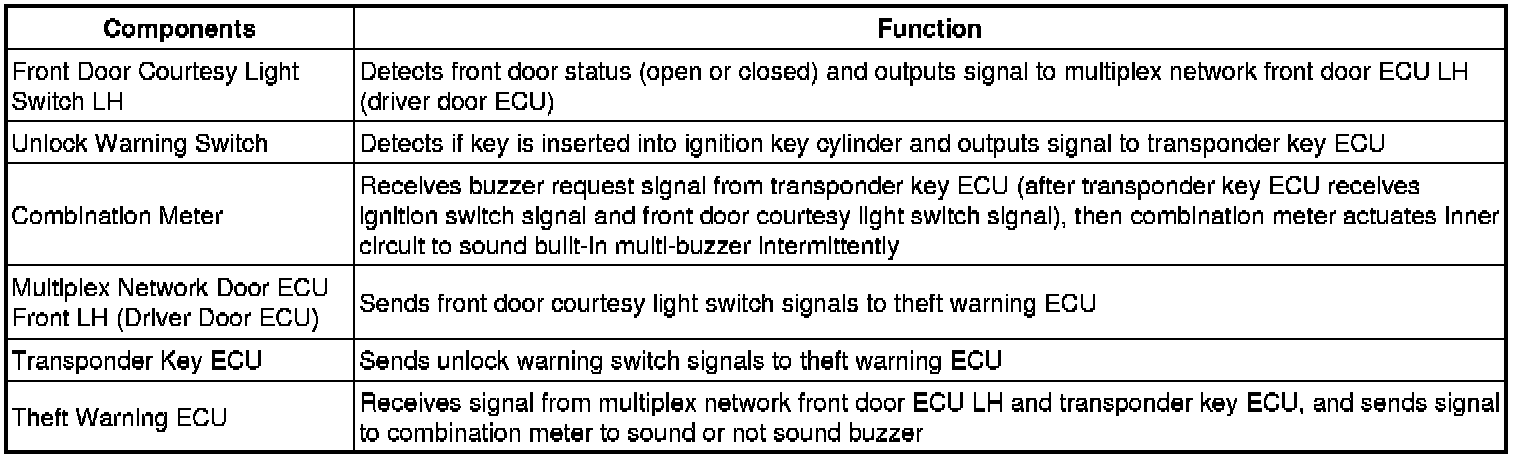

2. FUNCTION OF COMPONENT
