Home >> Lexus >> 2010 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Hose/Line HVAC >> Service and Repair

Hose/Line HVAC: Service and Repair

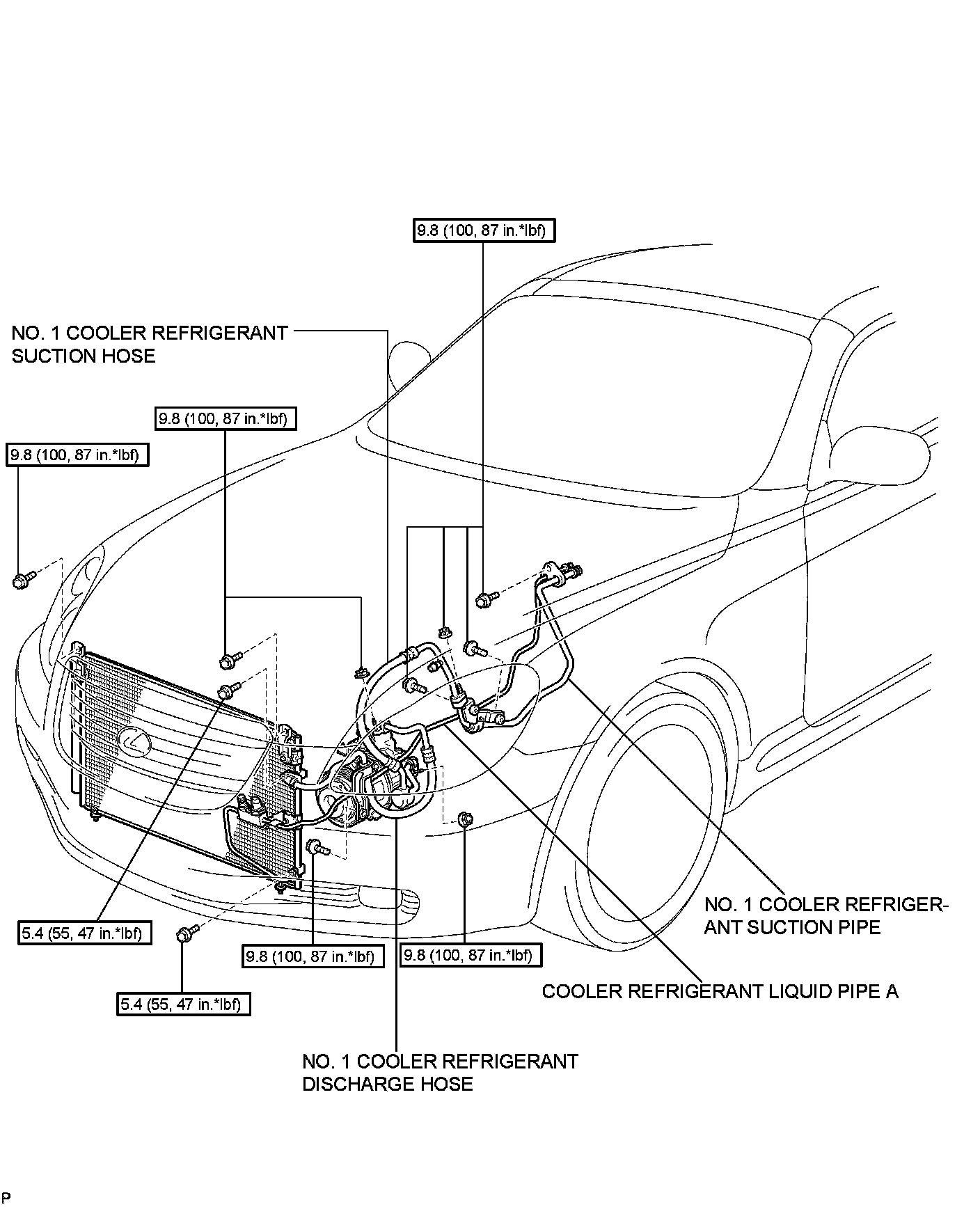

AIR CONDITIONING: REFRIGERANT LINE: COMPONENTS
