Heating and Air Conditioning: Description and Operation

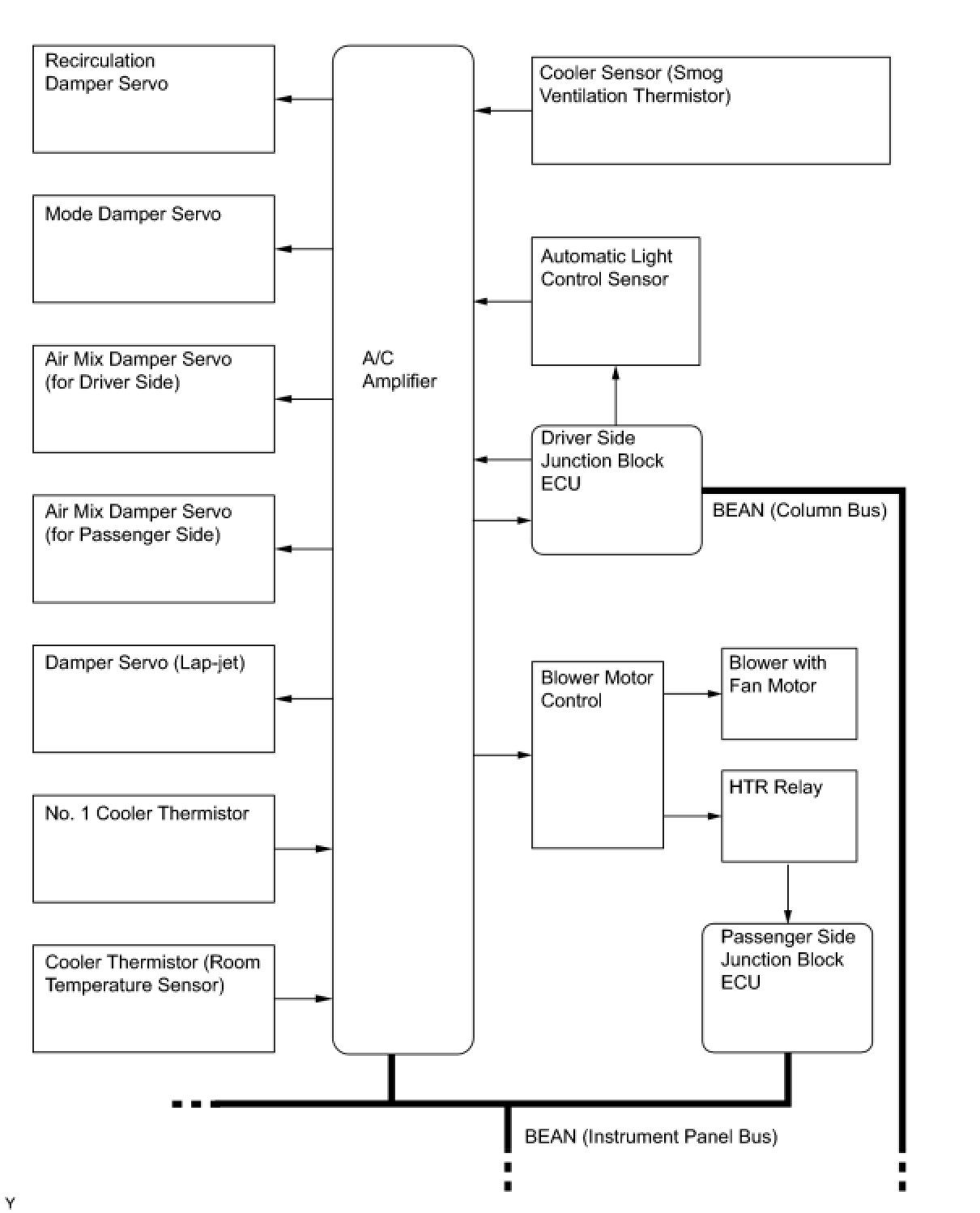

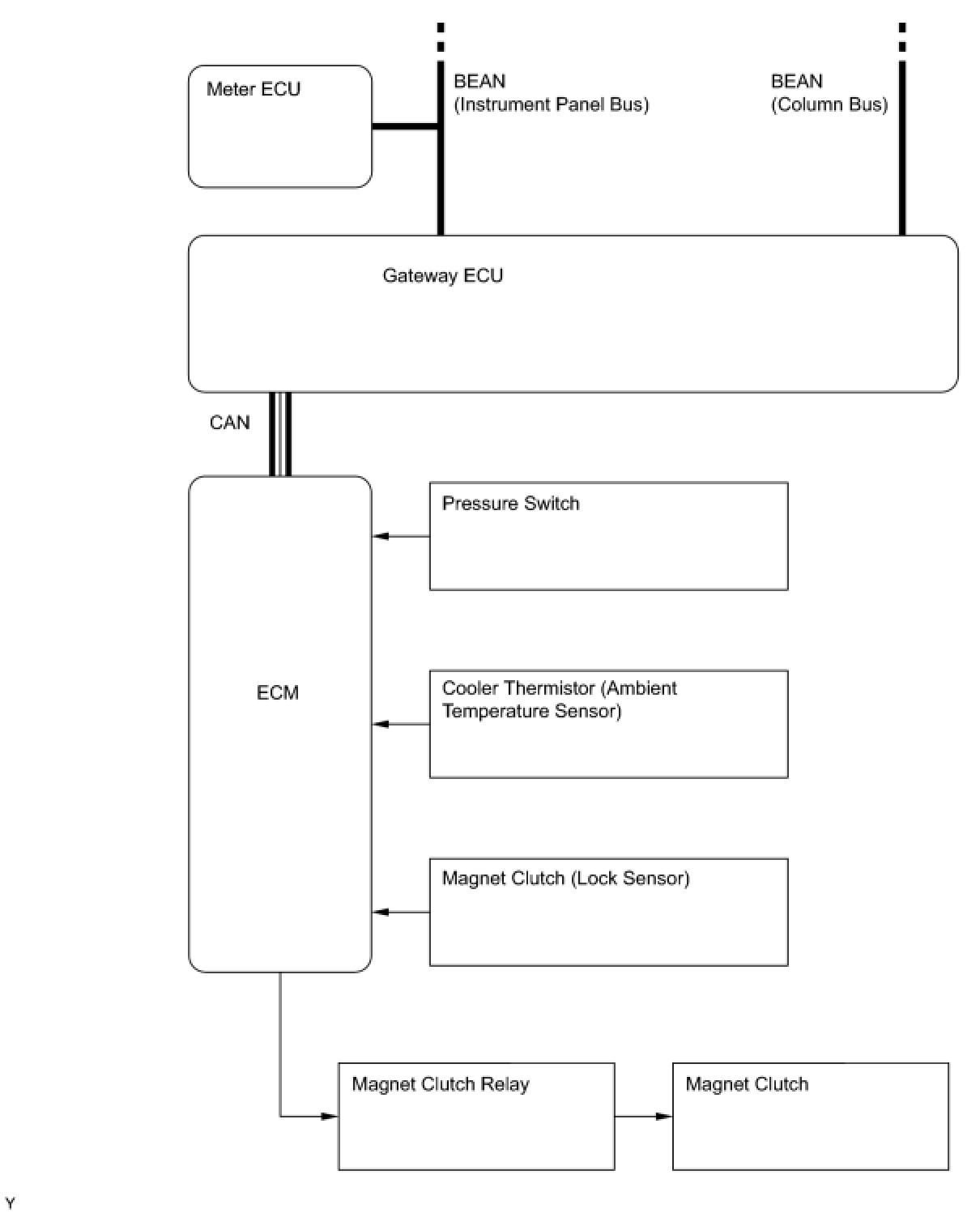

AIR CONDITIONING: AIR CONDITIONING SYSTEM: SYSTEM DIAGRAM

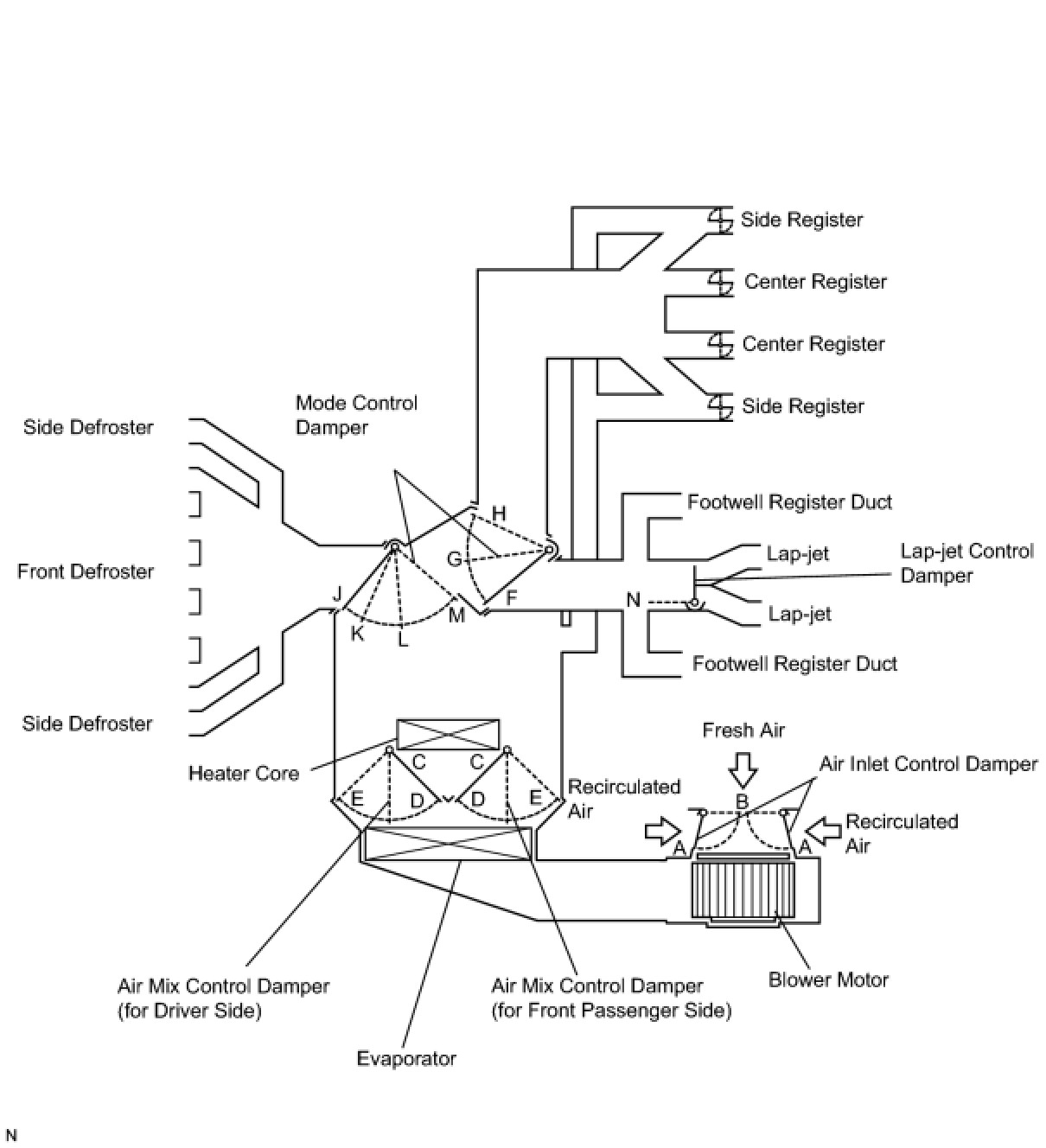

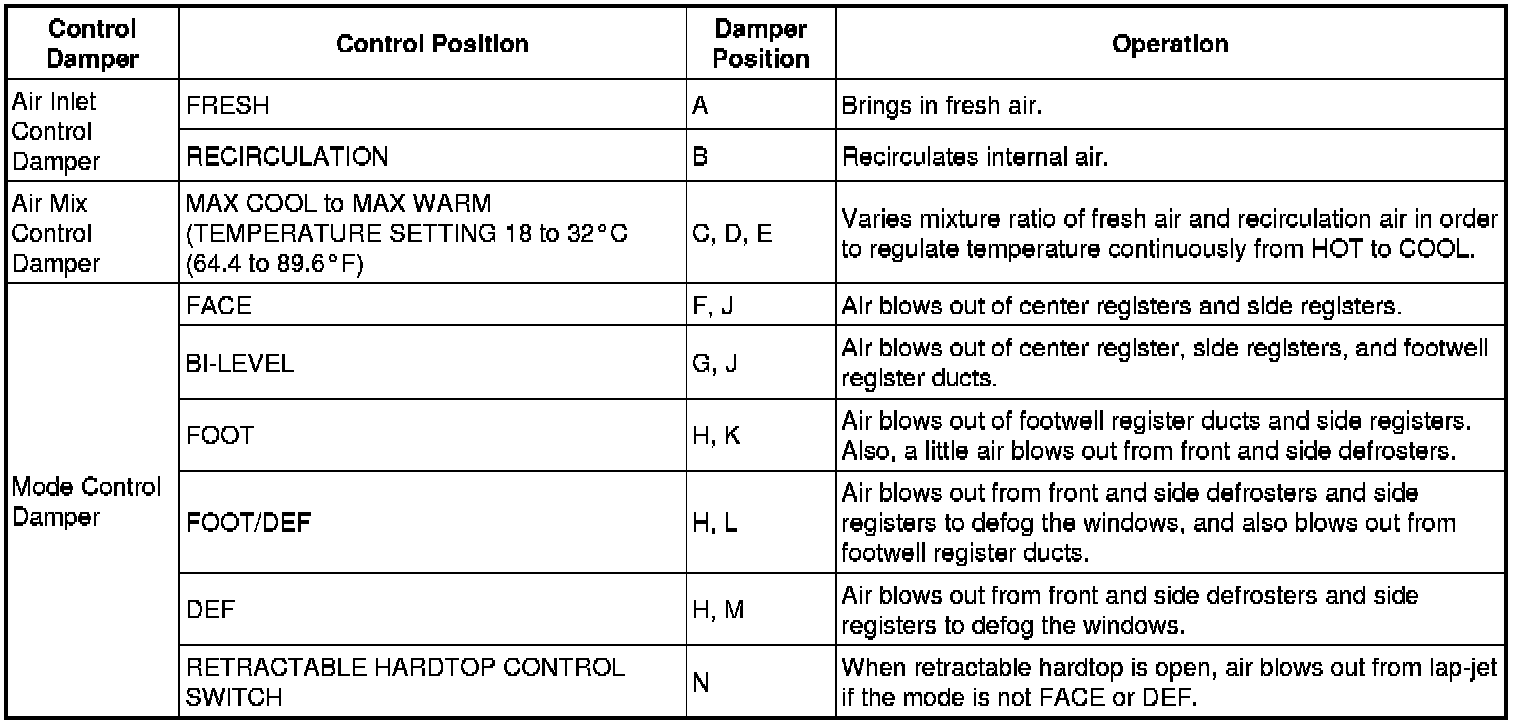

1. MODE POSITION AND DAMPER OPERATION

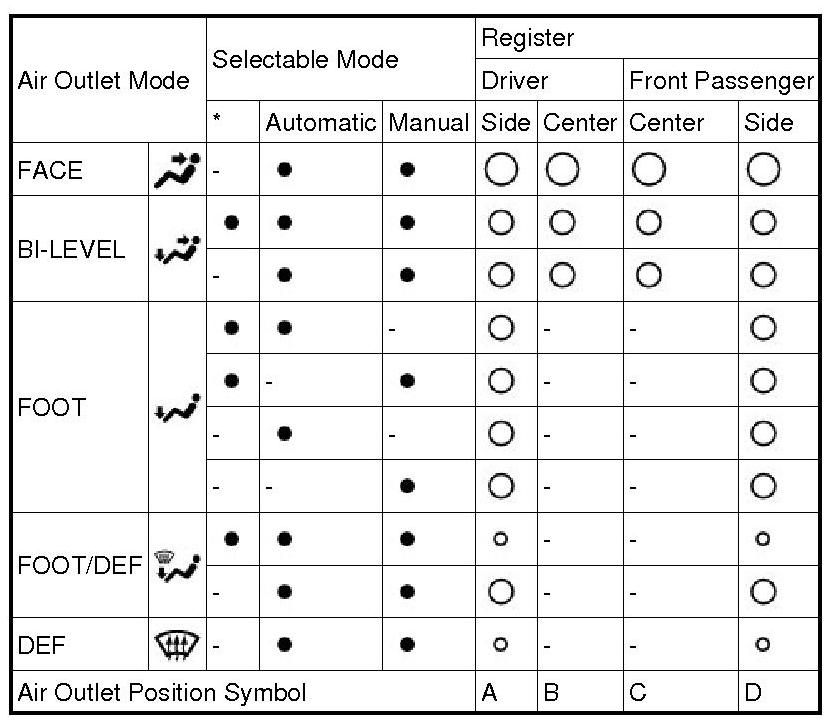

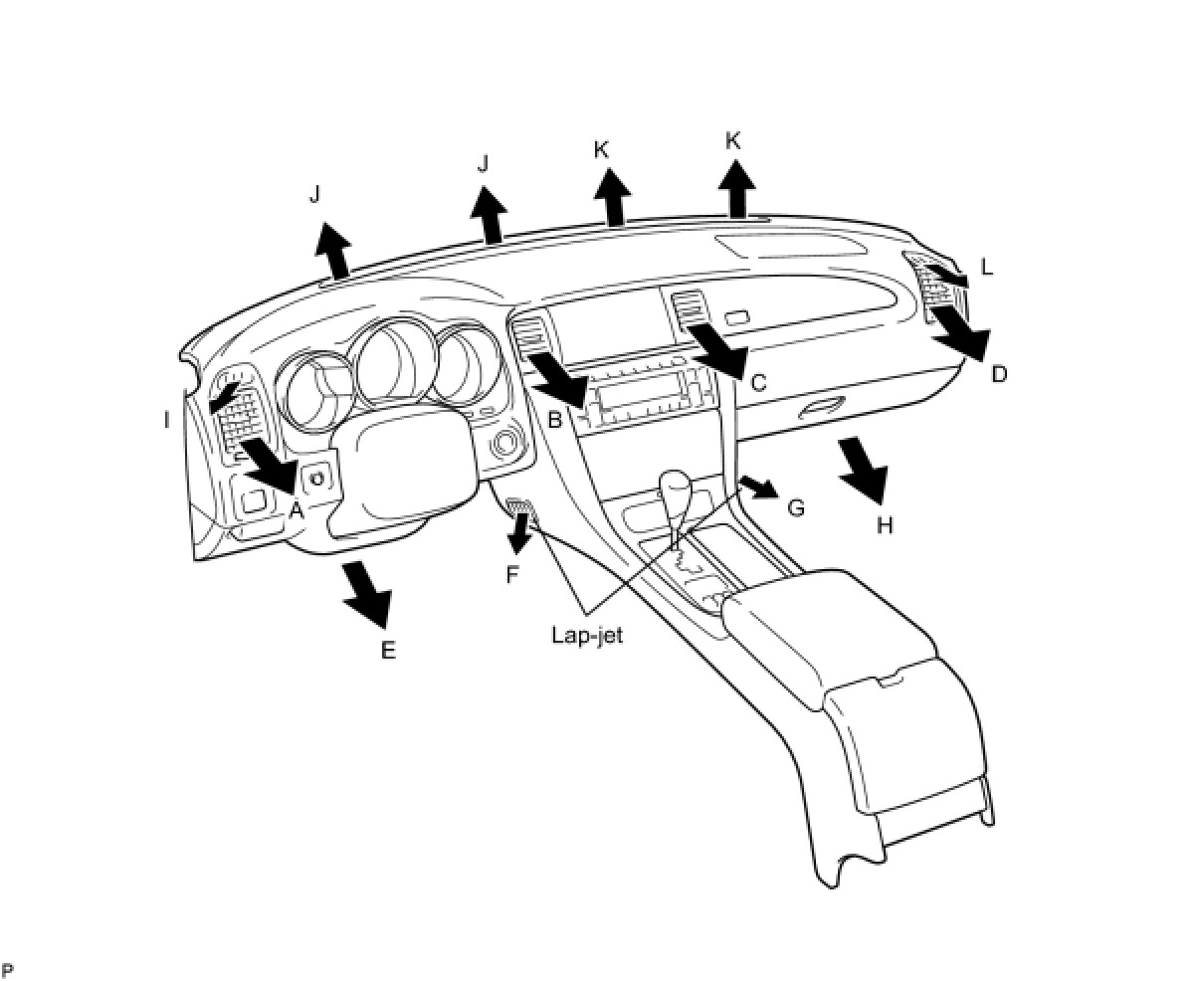

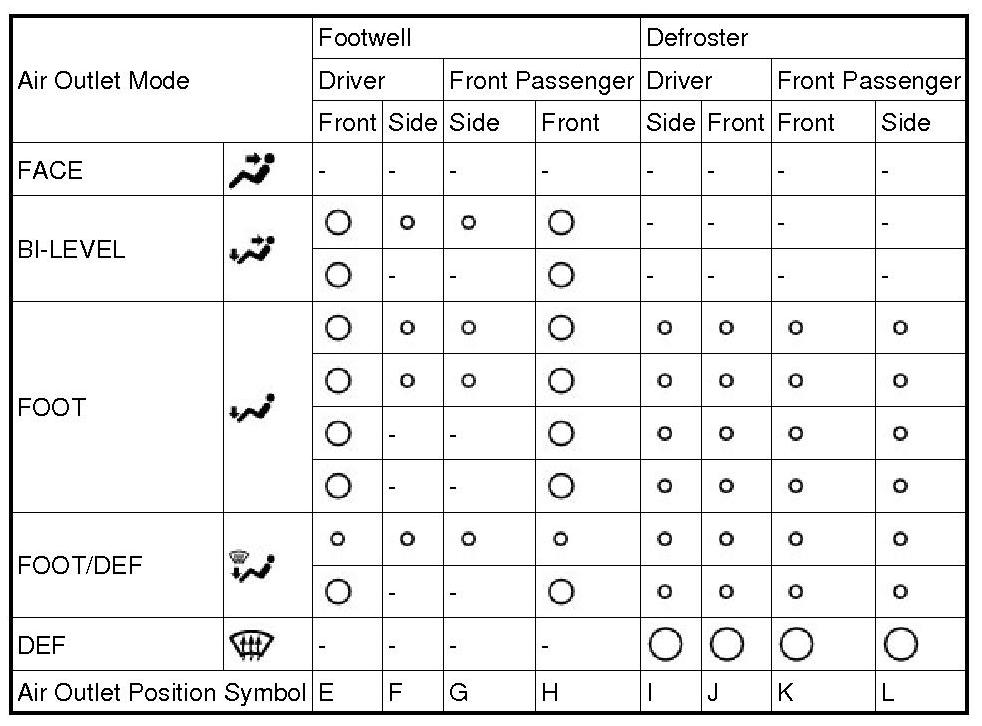

2. AIR OUTLETS AND AIR VOLUME RATIONS













HINT
* ●: Available
* -: Not available
* The size of the white circle indicates the proportion of the airflow volume. There are 3 sizes.
* *: When the retractable hardtop is opened.





AIR CONDITIONING: AIR CONDITIONING SYSTEM: SYSTEM DESCRIPTION

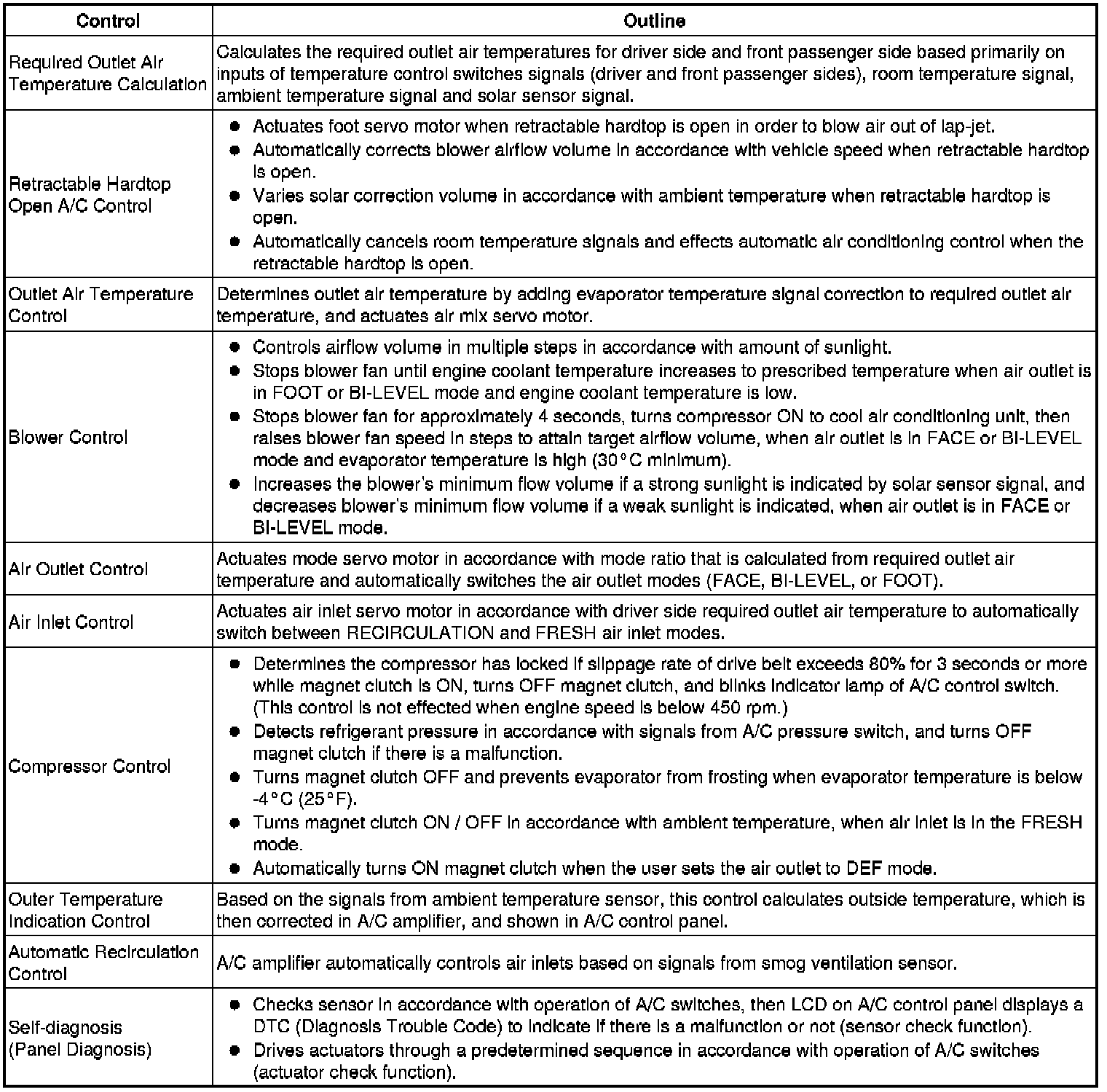

1. SYSTEM CONTROL
