Installation

AIR CONDITIONING: CONDENSER: INSTALLATION

1. INSTALL COOLER CONDENSER ASSEMBLY

(a) Install the bracket to the cooler condenser with the bolt.





Torque : 9.8 Nm (100 kgf-cm, 7 ft-lbf)

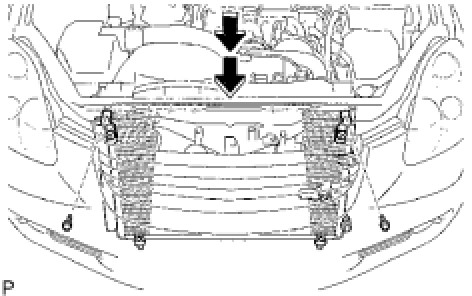

(b) Insert the lower support on the lower side of the cooler condenser into the crossmember.

(c) Install the cooler condenser with the 2 bolts.

Torque : 9.8 Nm (100 kgf-cm, 7 ft-lbf)

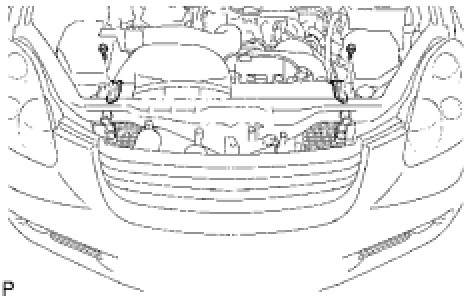

(d) Install the radiator upper support to the upper part of the radiator with the 2 bolts.





Torque : 9.8 Nm (100 kgf-cm, 7 ft-lbf)

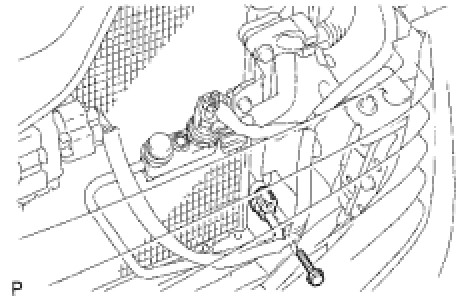

2. INSTALL COOLER REFRIGERANT LIQUID PIPE A

(a) Remove the vinyl tape attached to the pipe and condenser.





(b) Install a new O-ring to the liquid pipe.

(c) Sufficiently apply compressor oil to the O-ring and pipe joint.

Compressor oil:

ND-OIL 8 or equivalent

(d) Connect the liquid pipe to the cooler condenser with the bolt.

Torque : 5.4 Nm (55 kgf-cm, 47 in-lbf)

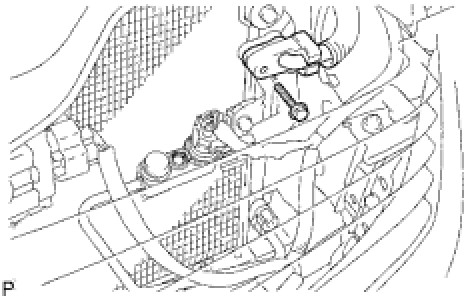

3. INSTALL NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

(a) Remove the vinyl tape attached to the hose and connecting part of the cooler condenser.





(b) Install a new O-ring to the discharge hose.

(c) Sufficiently apply compressor oil to the O-ring and hose joint.

Compressor oil:

ND-OIL 8 or equivalent

(d) Connect the discharge hose to the cooler condenser with the bolt.

Torque : 5.4 Nm (55 kgf-cm, 47 in-lbf)

4. INSTALL AIR CLEANER ASSEMBLY Installation

5. INSTALL NO. 1 AIR CLEANER INLET Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

8. CHARGE REFRIGERANT Service and Repair

9. WARM UP ENGINE Service and Repair

10. CHECK FOR LEAKAGE OF REFRIGERANT Service and Repair
