Removal

3UZ-FE COOLING: WATER PUMP: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE ENGINE UNDER COVER

3. DRAIN ENGINE COOLANT Service and Repair

4. REMOVE V-BANK COVER

(a) Remove the 2 nuts and cover.

5. REMOVE NO. 1 AIR CLEANER INLET

(a) Remove the bolt and inlet.

6. REMOVE INTAKE AIR CONNECTOR PIPE Removal

7. REMOVE AIR CLEANER ASSEMBLY Removal

8. DISCONNECT NO. 1 RADIATOR HOSE Removal

9. DISCONNECT NO. 2 RADIATOR HOSE Removal

10. DISCONNECT NO. 1 OIL COOLER INLET TUBE Removal

11. DISCONNECT NO. 1 OIL COOLER OUTLET TUBE Removal

12. REMOVE RADIATOR ASSEMBLY Removal

13. REMOVE TIMING BELT

(a) Remove the timing belt Removal.

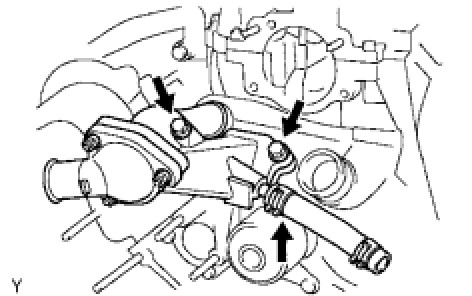

14. REMOVE WATER INLET HOUSING

(a) Disconnect the water by-pass hose and remove the 2 bolts and water inlet housing.

(b) Remove the O-ring from the inlet housing.

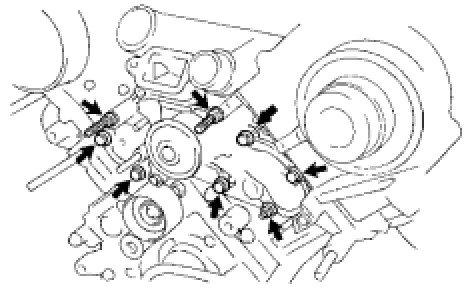

15. REMOVE WATER PUMP ASSEMBLY

(a) Remove the 5 bolts, 2 stud bolts and nut.

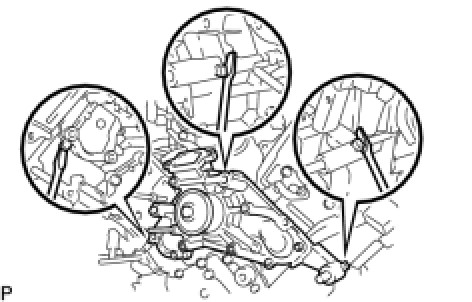

(b) Using a screwdriver, remove the water pump and gasket.
