Replacement

3UZ-FE LUBRICATION: OIL PUMP: REPLACEMENT

1. REMOVE OIL PUMP SEAL





(a) Using a screwdriver, pry out the seal.

HINT
Tape the screwdriver tip before use.

NOTICE:
To protect the oil pump body while prying out the seal, place a wooden block between the screwdriver and oil pump body.

2. INSTALL OIL PUMP SEAL

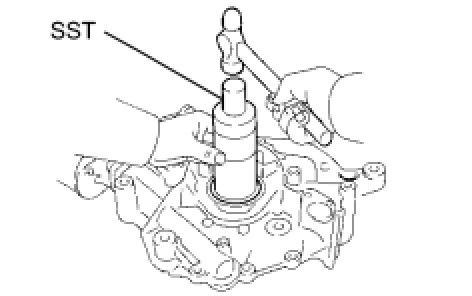

(a) Using SST and a hammer, tap in a new oil seal until its surface is flush with the oil pump body edge.

SST : 09316-60011

09316-00011

NOTICE:
Be careful not to tap the oil seal in at an angle.

(b) Apply a small amount of MP grease to the oil seal lip.
