Cylinder Head Assembly: Specifications

Cylinder head bolts





Standard outside diameter 9.770 to 9.960 mm (0.3846 to 0.3921 in.)
Minimum outside diameter 9.70 mm (0.3819 in.)
If the diameter is less than the minimum, replace the bolt

Tightening








Step 1 59 Nm (602 kgf-cm, 44 ft-lbf)
Step 2 90°

Maximum warpage

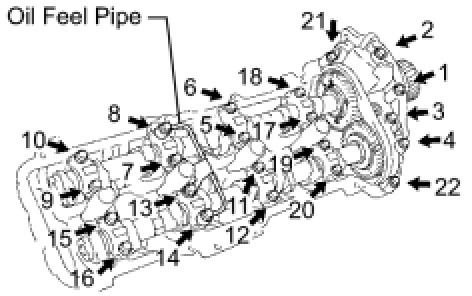

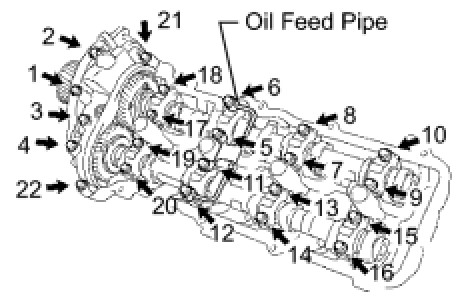

Camshaft bearing caps








Bolts 21 and 22 7.5 Nm (76 kgf-cm, 66 in-lbf)
Other bolts 16 Nm (163 kgf-cm, 12 ft-lbf)

Intake manifold Specifications

Exhaust manifold Specifications

Camshaft gear Specifications
