Home >> Lexus >> 2010 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Camshaft, Lifters and Push Rods >> Camshaft >> Service and Repair >> Camshaft (for Bank 2) >> Components

Components

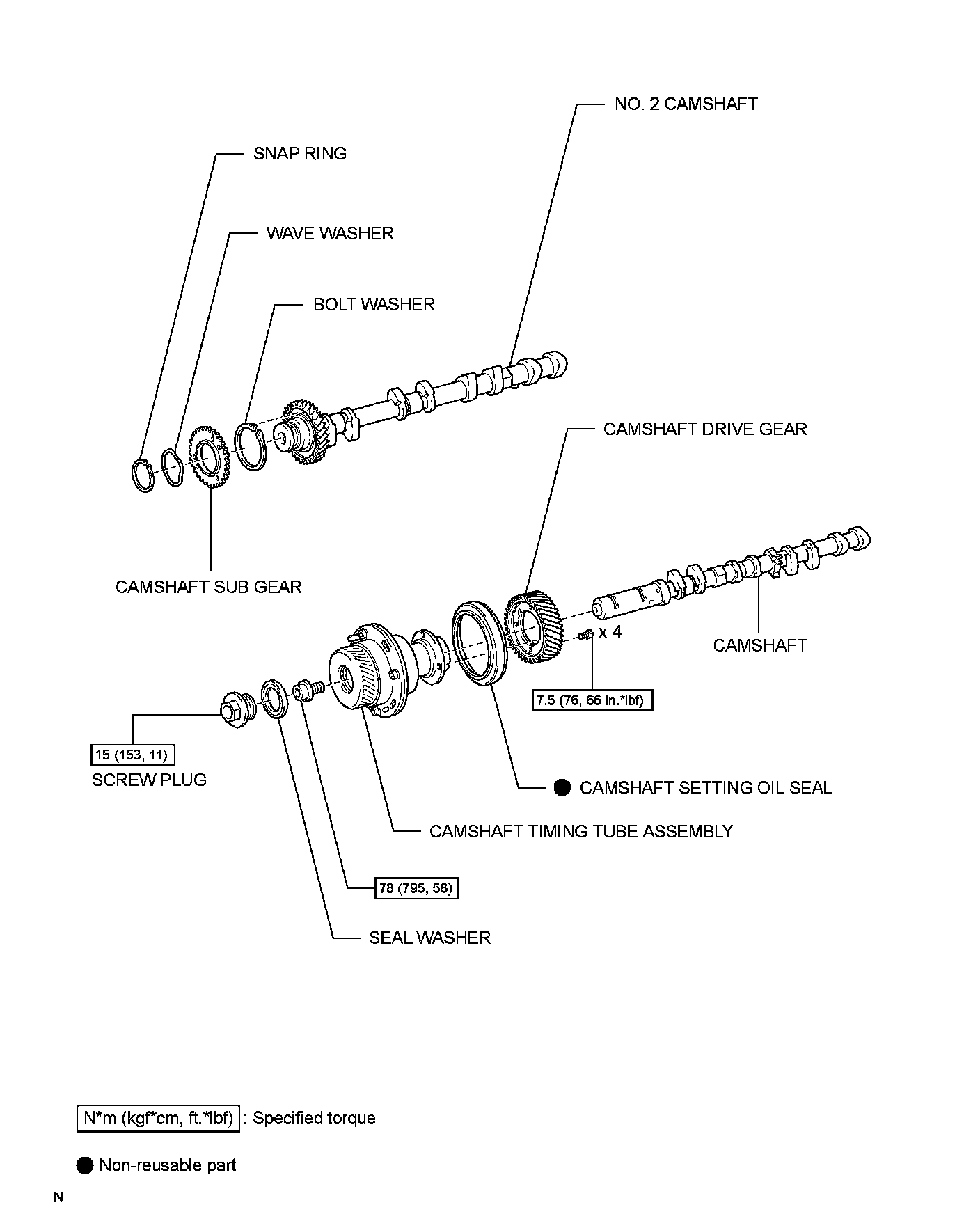

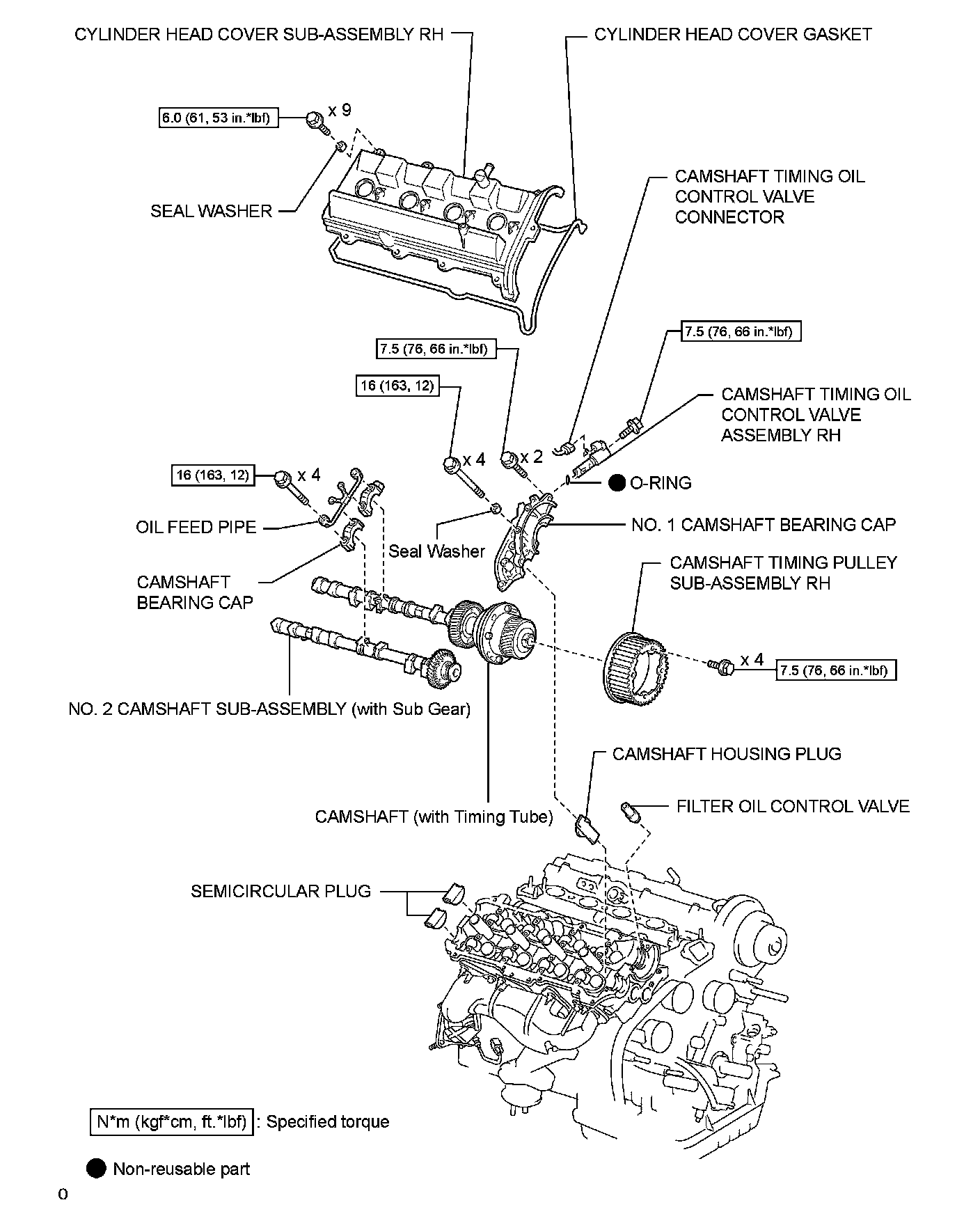

3UZ-FE ENGINE MECHANICAL: CAMSHAFT (for Bank 2): COMPONENTS
