Installation

3UZ-FE COOLING: RADIATOR: INSTALLATION

1. INSTALL FAN SHROUD SUB-ASSEMBLY Installation

2. INSTALL RADIATOR ASSEMBLY

(a) Install the 2 grommets to the radiator.

(b) Install the 2 radiator support brackets with the 2 nuts.





Torque : 13.5 Nm (138 kgf-cm, 10 ft-lbf)

(c) Connect the cooling fan ECU connector.

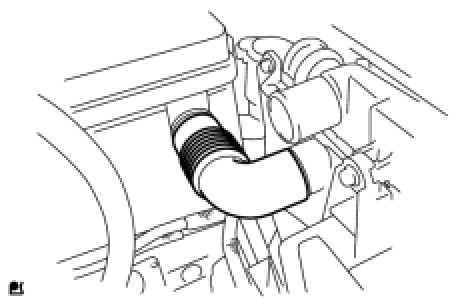

(d) Install the outlet duct.





3. CONNECT NO. 1 OIL COOLER OUTLET TUBE

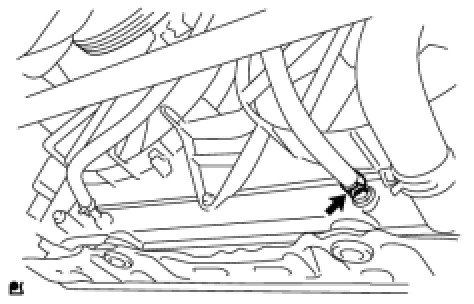

(a) Connect the outlet tube.





4. CONNECT NO. 1 OIL COOLER INLET TUBE

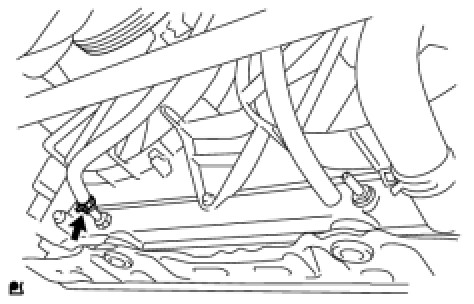

(a) Connect the inlet tube.





5. CONNECT NO. 2 RADIATOR HOSE

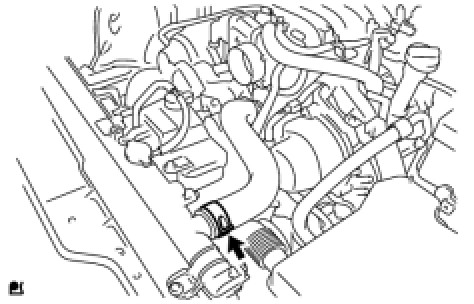

(a) Connect the radiator hose.





6. CONNECT NO. 1 RADIATOR HOSE

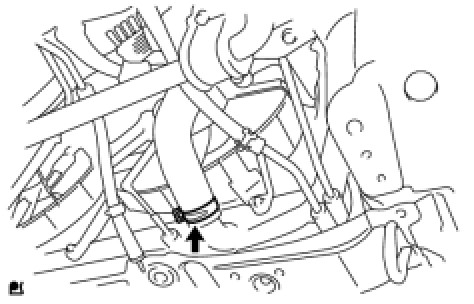

(a) Connect the radiator hose.





7. INSTALL AIR CLEANER ASSEMBLY Installation

8. INSTALL INTAKE AIR CONNECTOR PIPE Installation

9. INSTALL V-BANK COVER Installation

10. INSTALL RADIATOR RESERVE TANK ASSEMBLY Installation

11. INSTALL NO. 1 AIR CLEANER INLET Installation

12. ADD ENGINE COOLANT Service and Repair

13. CHECK FOR ENGINE COOLANT LEAKS Testing and Inspection

14. INSTALL ENGINE UNDER COVER

15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

16. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
