Installation

3UZ-FE COOLING: FAN: INSTALLATION

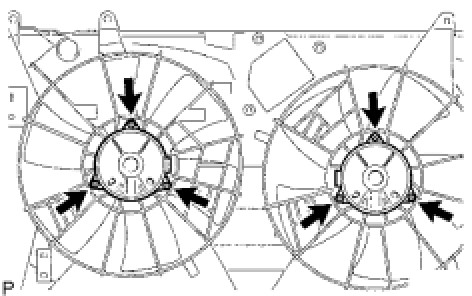

1. INSTALL COOLING FAN MOTOR

(a) Install the fan motor with the 3 screws.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

2. INSTALL NO. 2 COOLING FAN MOTOR

(a) Install the fan motor with the 3 screws.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

(b) Connect the 2 wires to the fan shroud.

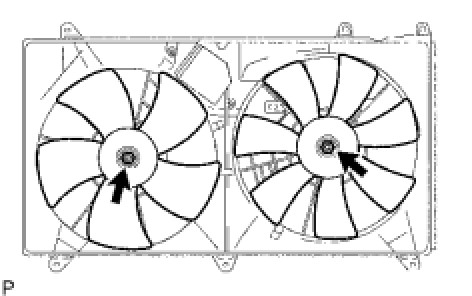

3. INSTALL FAN

(a) Install the 2 fans with the 2 nuts.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

4. INSTALL COOLING FAN ECU

(a) Install the ECU with the 2 screws.

(b) Connect the 2 connectors.

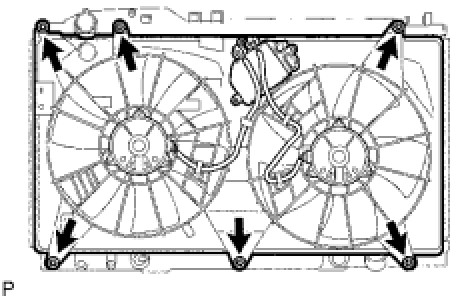

5. INSTALL FAN SHROUD SUB-ASSEMBLY

(a) Install the fan shroud with the 6 bolts.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

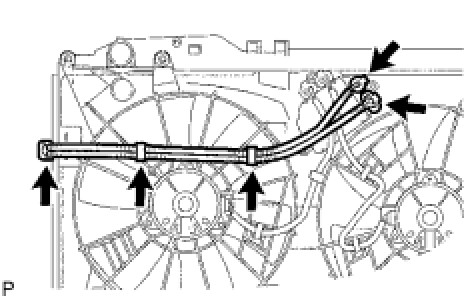

(b) Connect the 3 clamps and wire harness to the fan shroud.

7. CONNECT NO. 1 RADIATOR HOSE Installation

8. INSTALL AIR CLEANER ASSEMBLY Installation

9. INSTALL INTAKE AIR CONNECTOR PIPE Installation

10. INSTALL RADIATOR RESERVE TANK ASSEMBLY

(a) Install the reserve tank with the 2 bolts.

(b) Squeeze the clip and install the reserve tank inlet hose to the radiator assembly.

11. INSTALL NO. 1 AIR CLEANER INLET Installation

12. ADD ENGINE COOLANT Service and Repair

13. CHECK FOR ENGINE COOLANT LEAKS Testing and Inspection

14. INSTALL ENGINE UNDER COVER

15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

16. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
