Wire and Wire, Ground Points In Engine Compartment

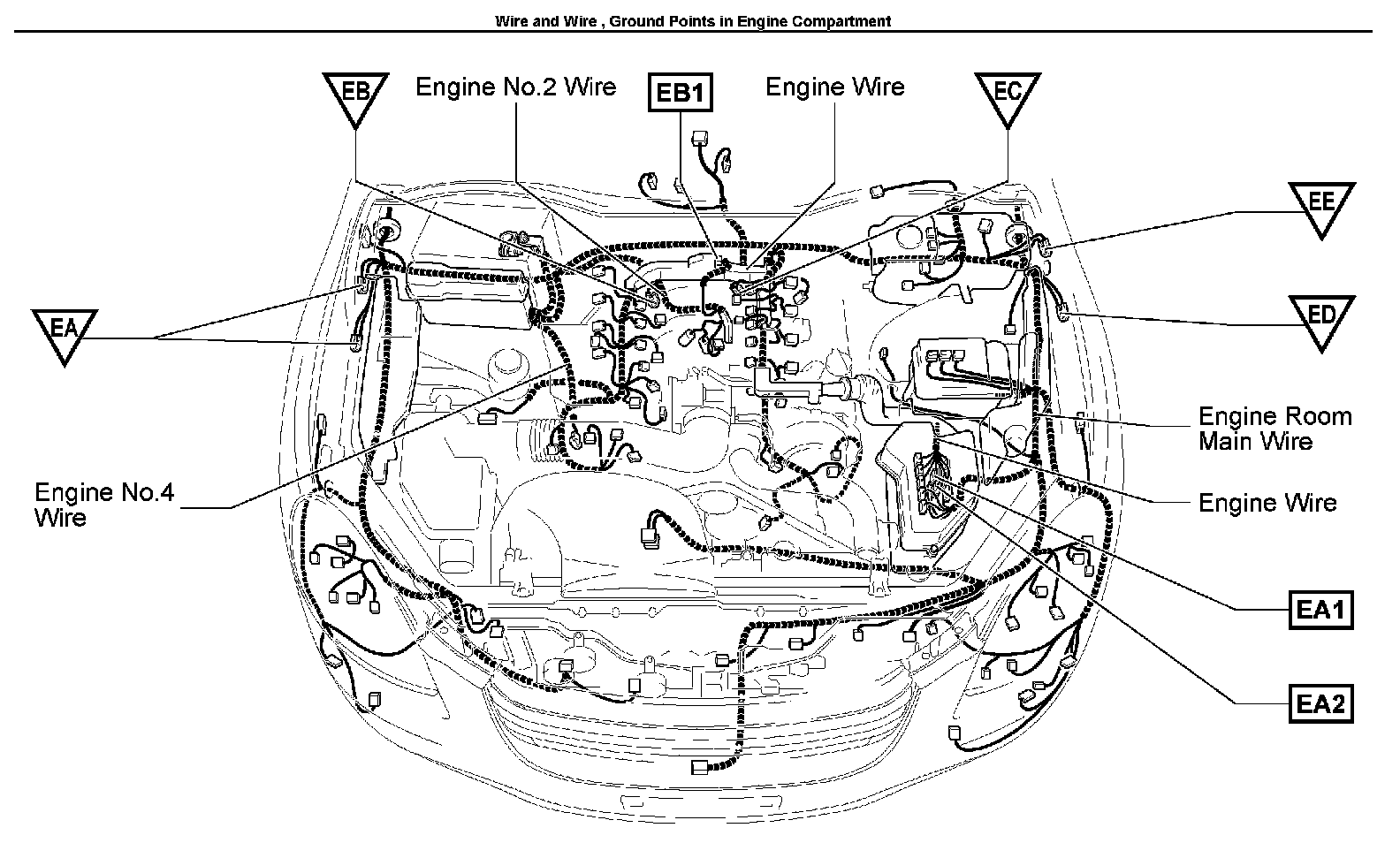

EA-EE, EA1-EB1 Positions:

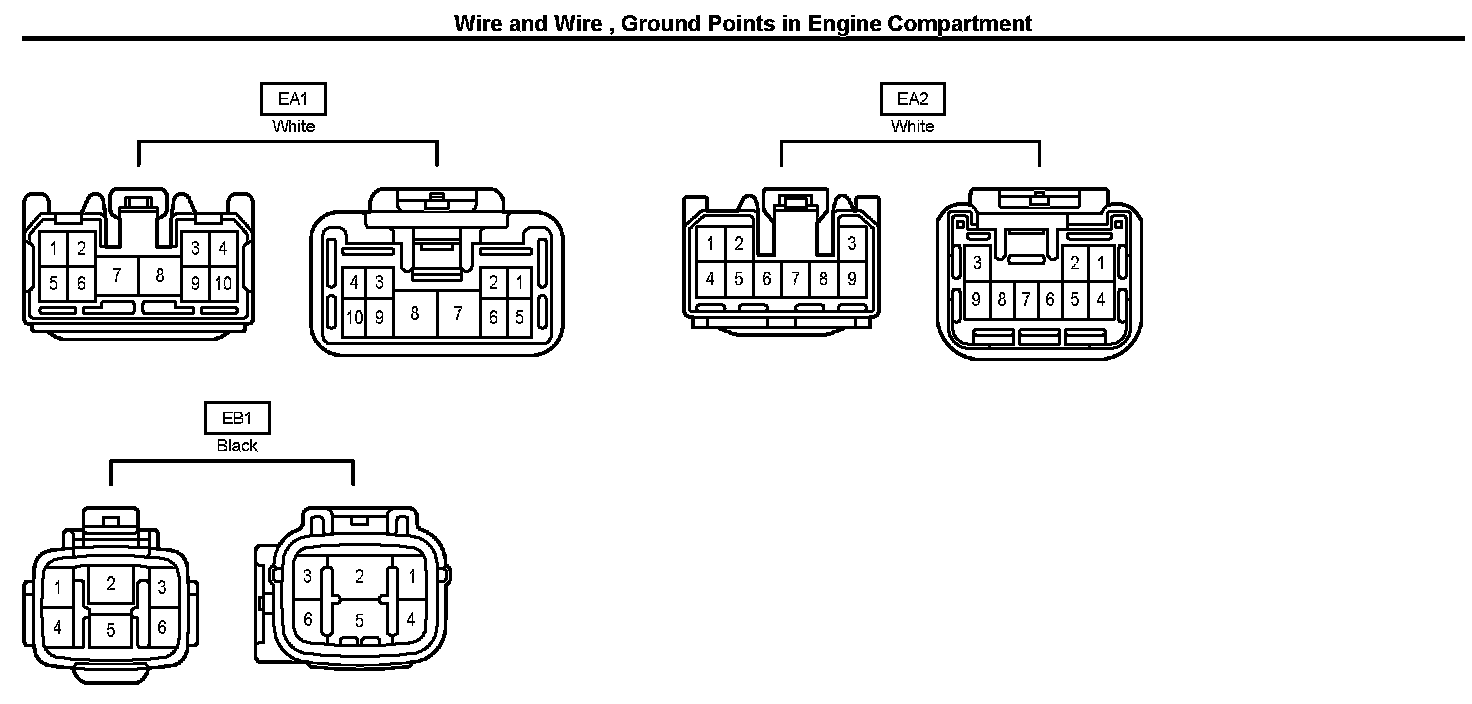

EA1-EB1 Connector Views:
