LEXUS Navigation System [Except USA]

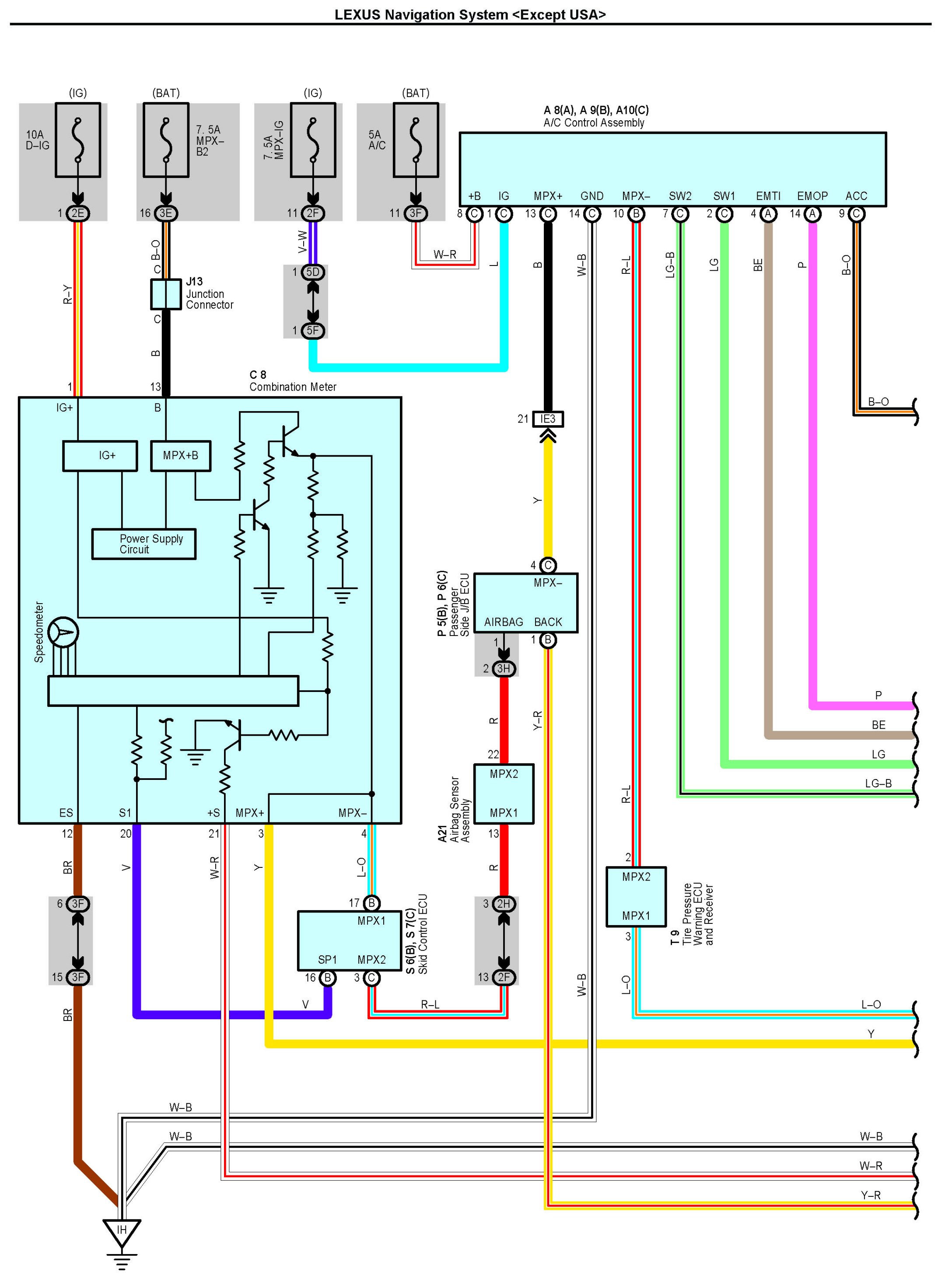

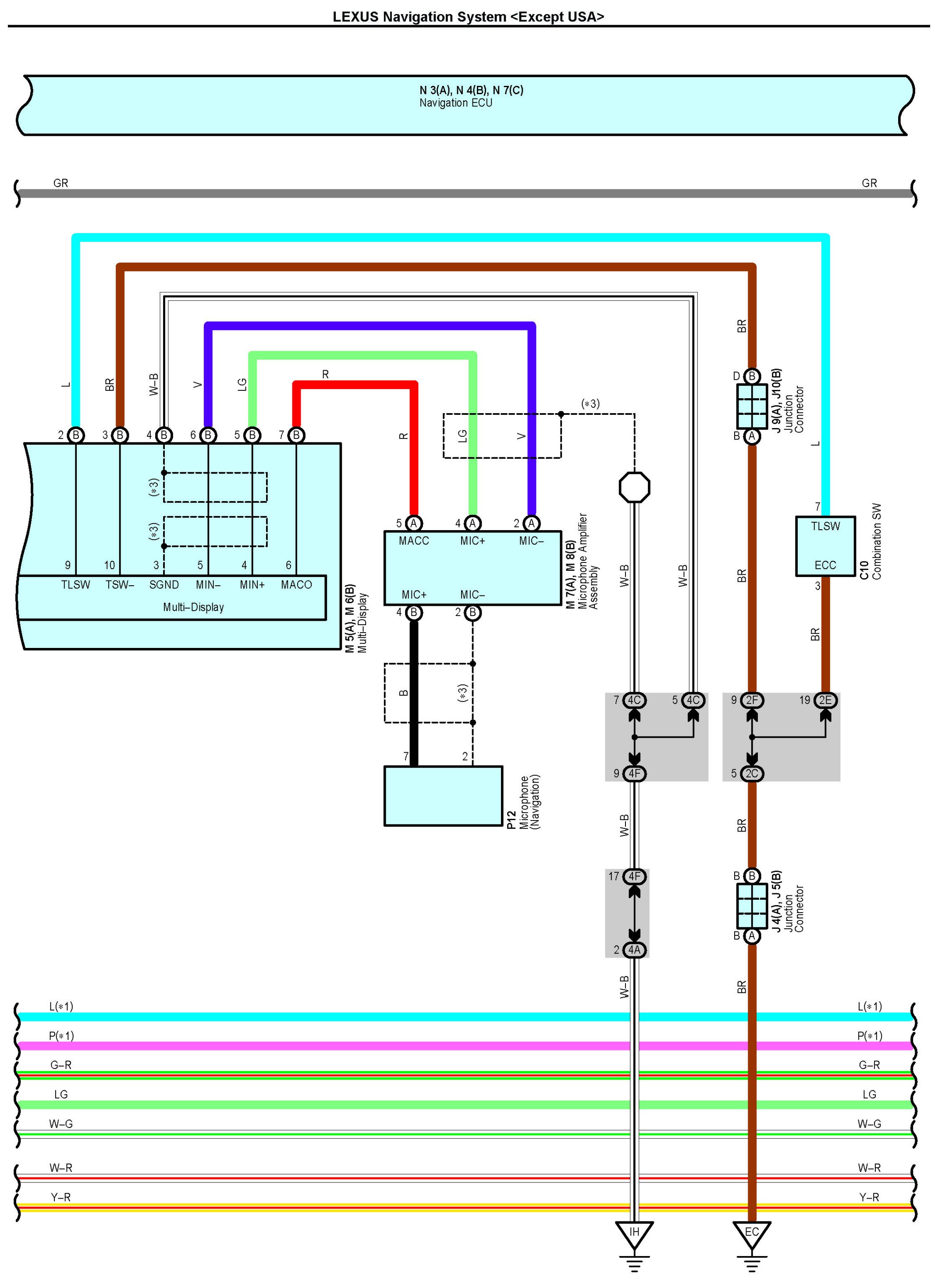

Lexus Navigation System [Except USA] Part 1:

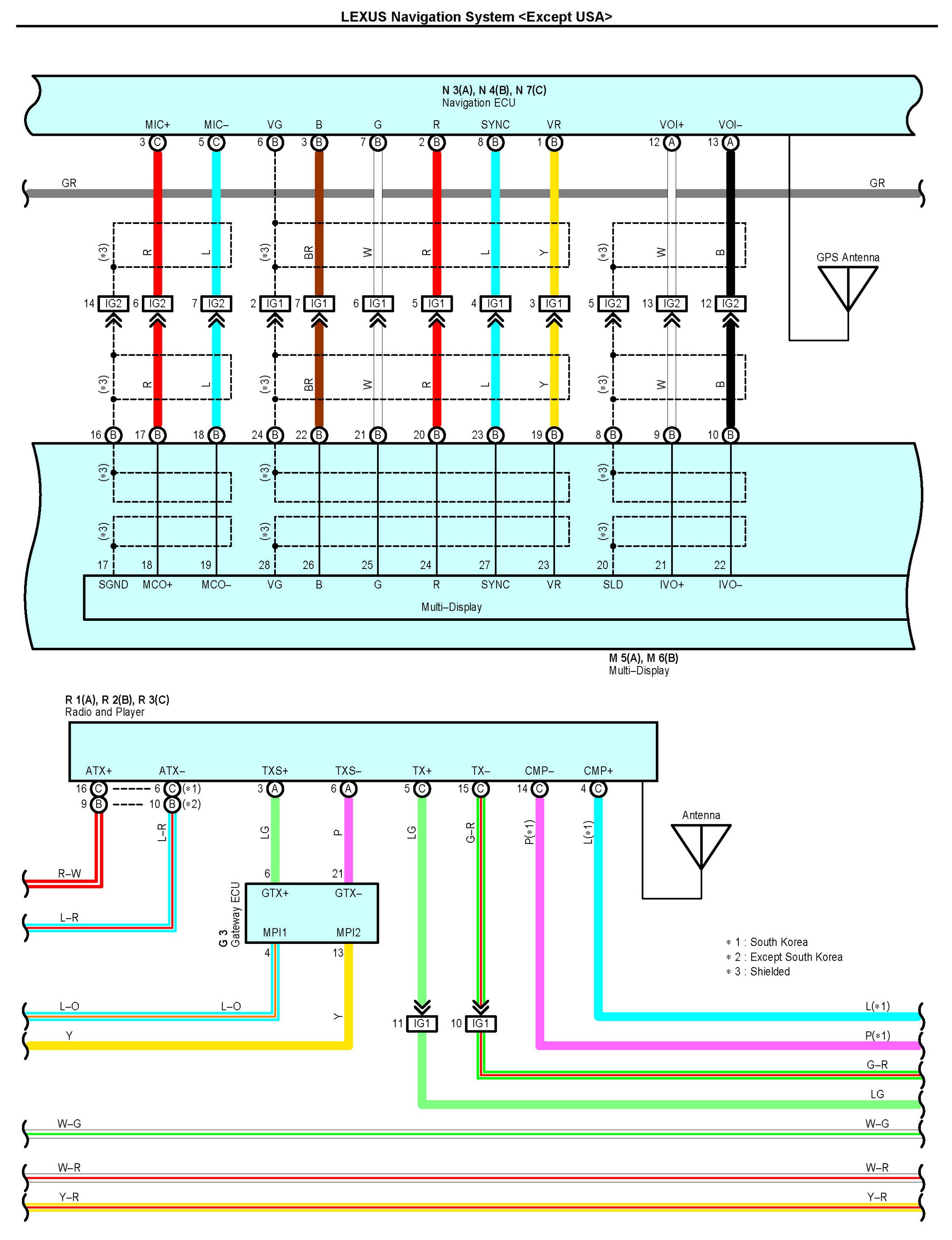

Lexus Navigation System [Except USA] Part 2:

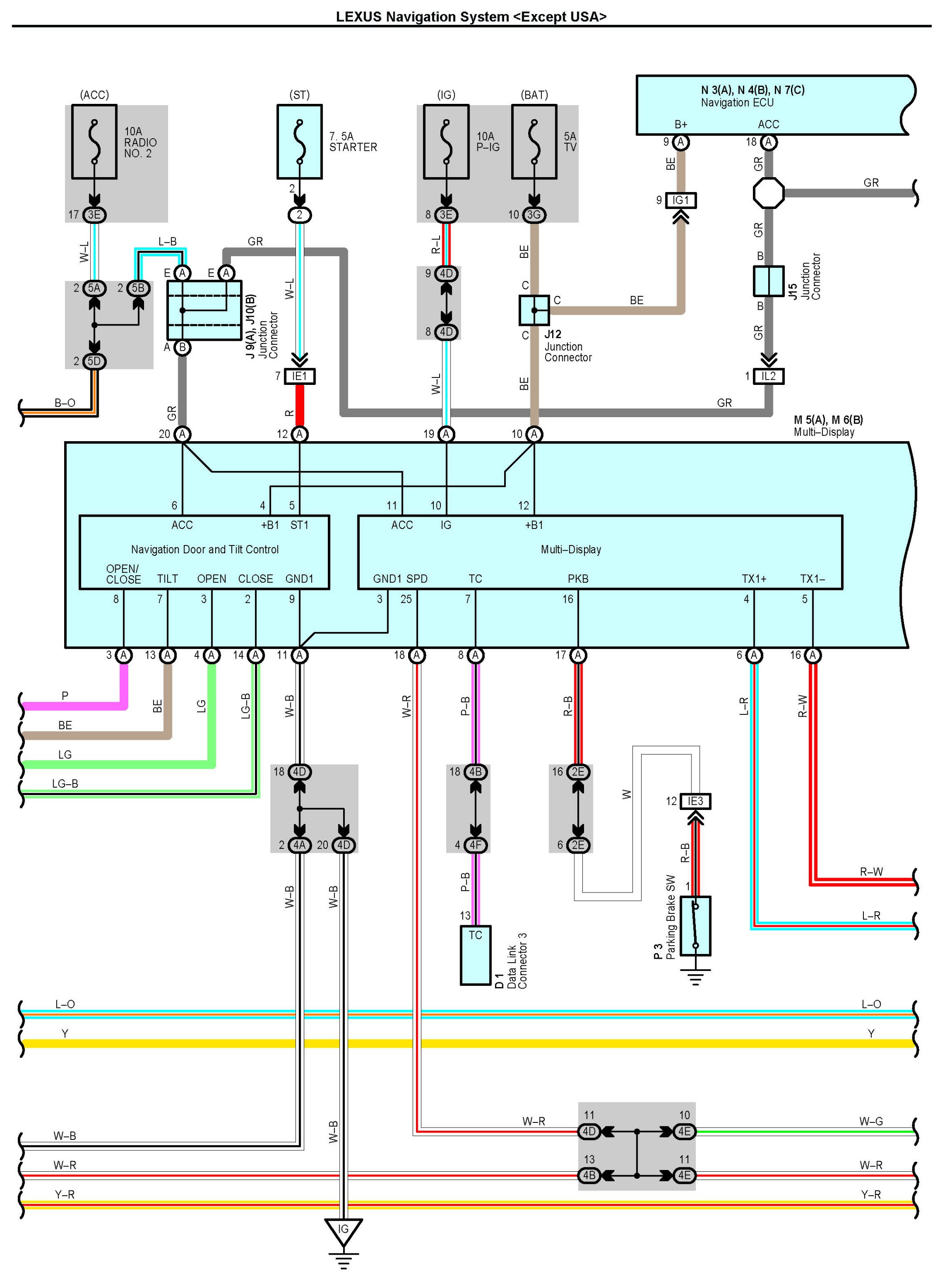

Lexus Navigation System [Except USA] Part 3:

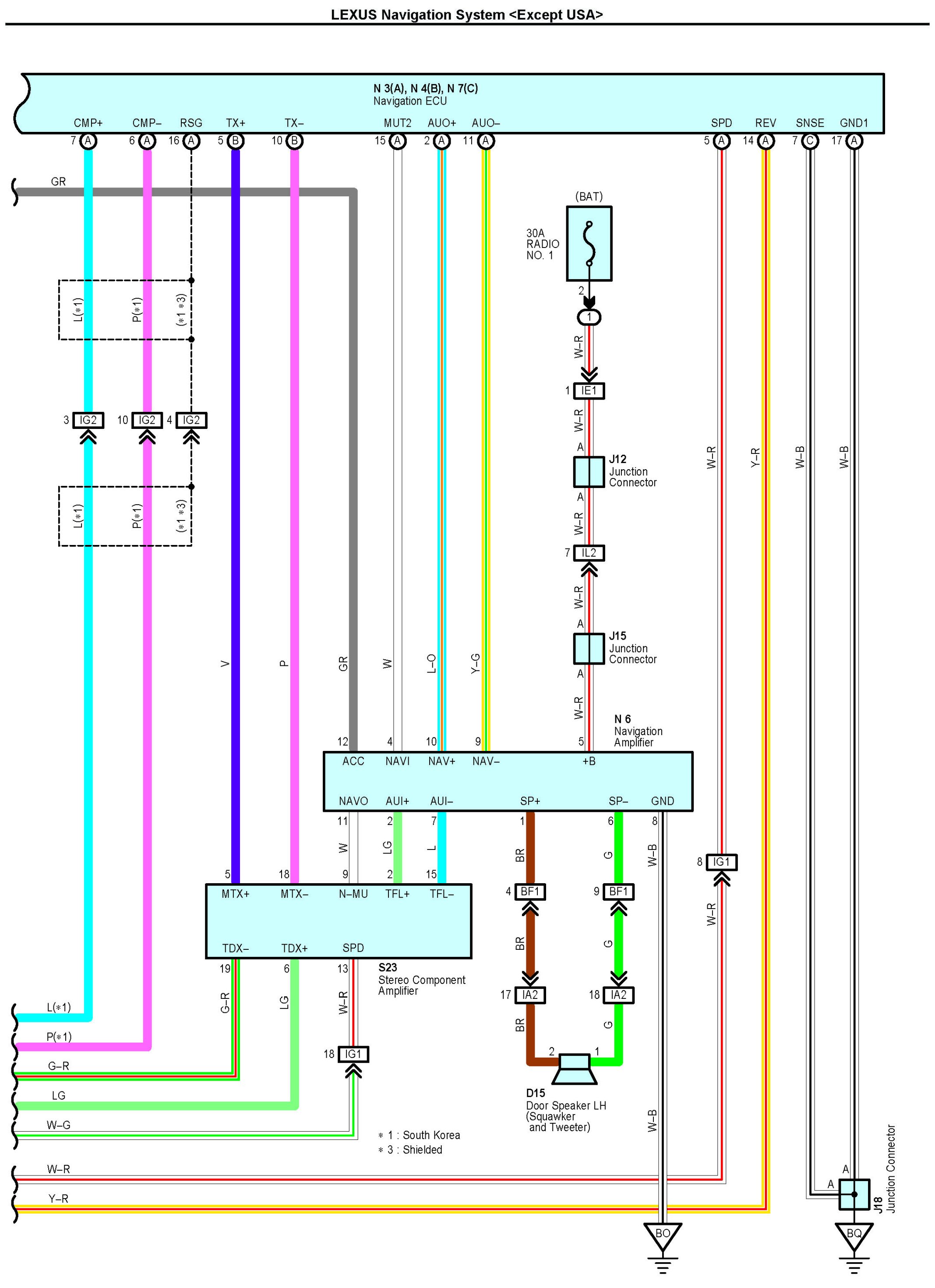

Lexus Navigation System [Except USA] Part 4:

Lexus Navigation System [Except USA] Part 5:

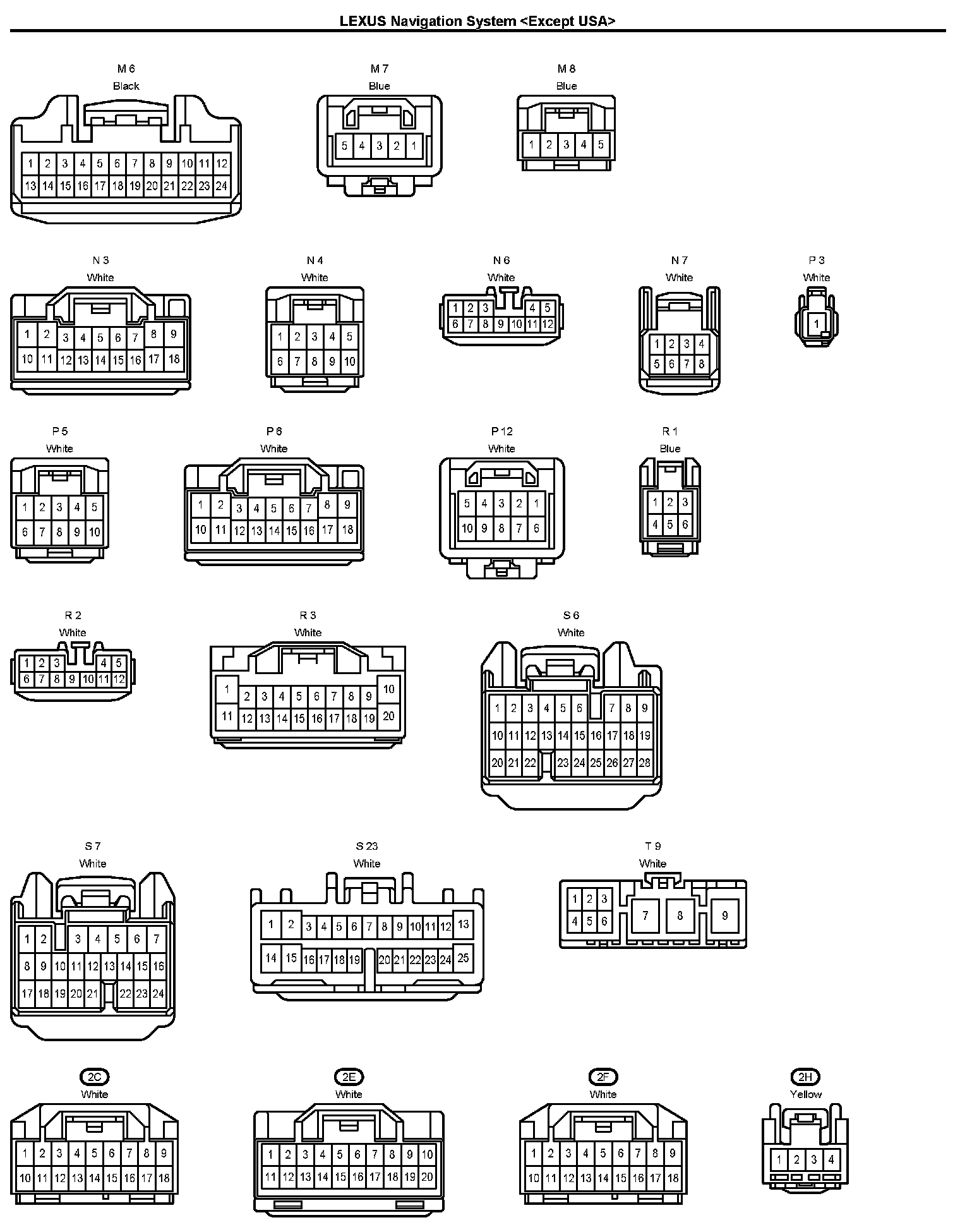

Connectors Part 1:

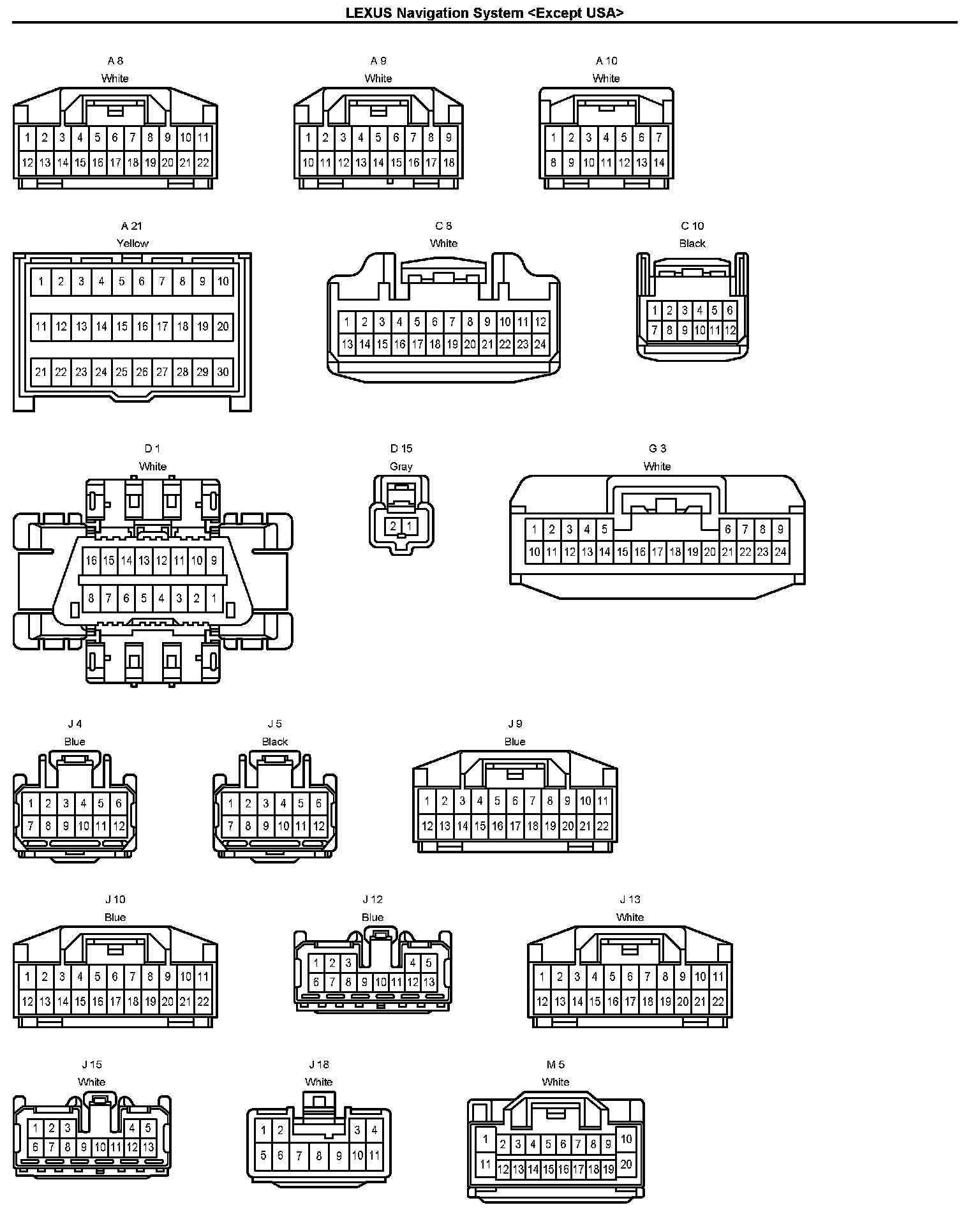

Connectors Part 2:

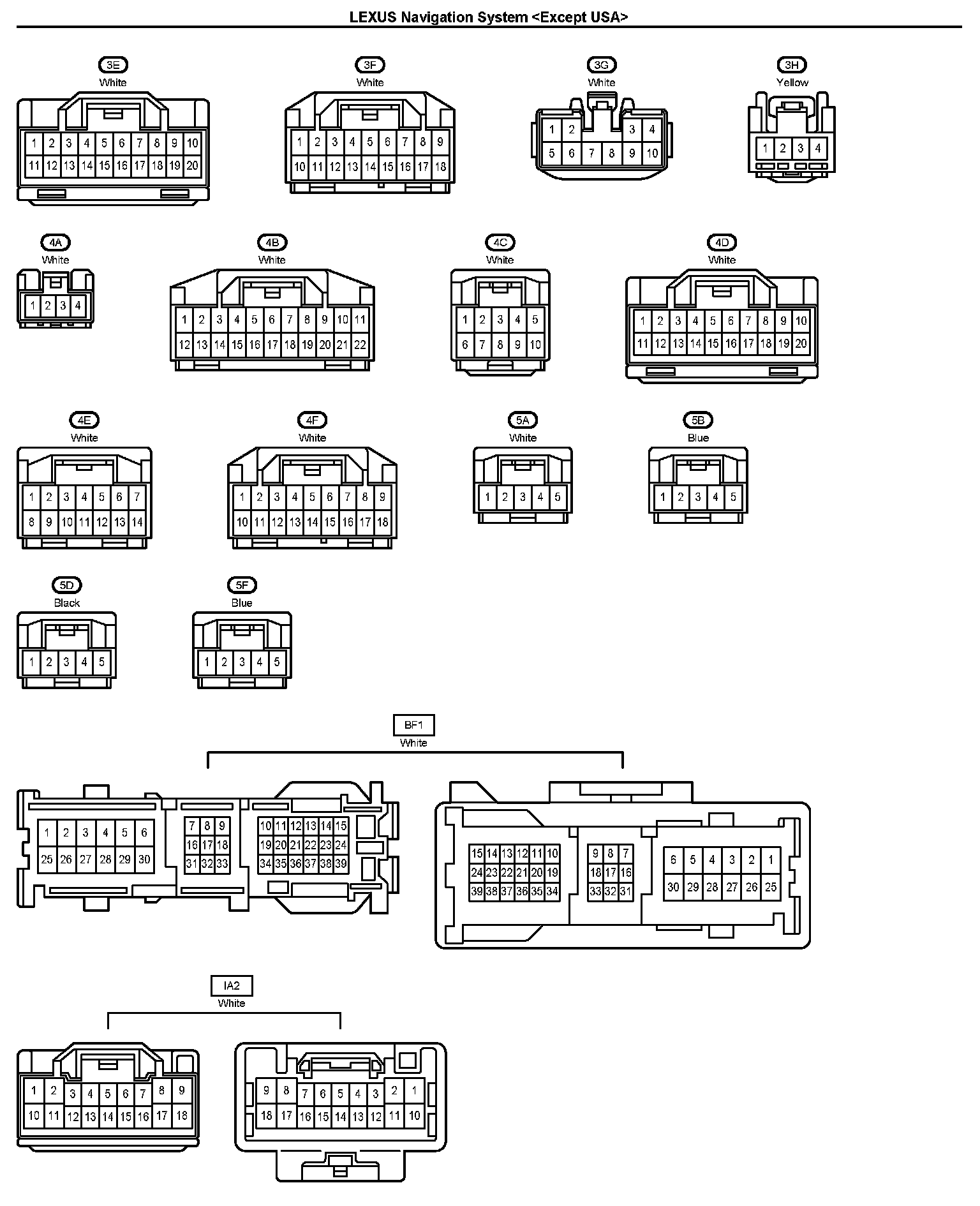

Connectors Part 3:

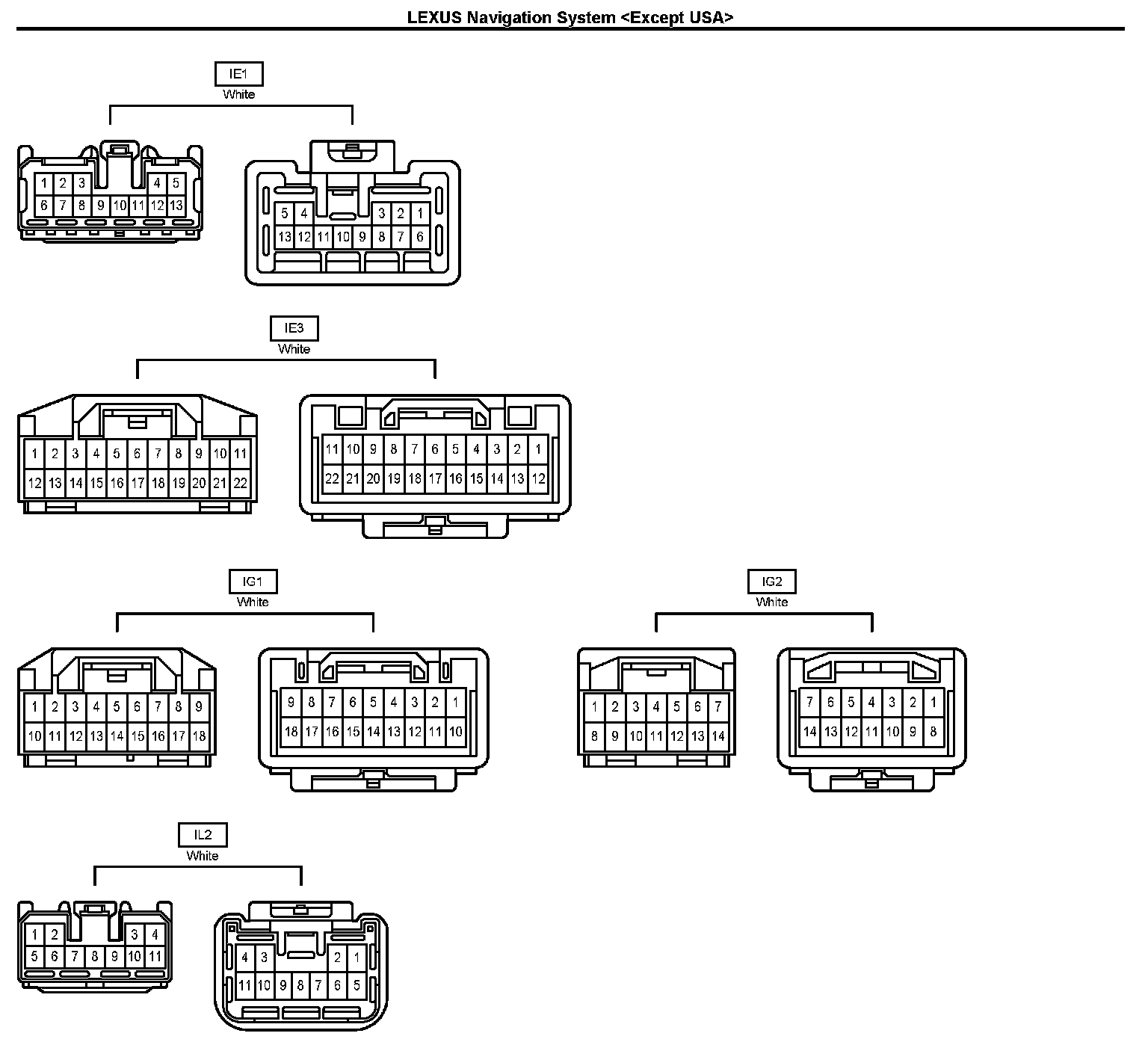

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
