Audio System [USA], Auto Antenna [USA], LEXUS Navigation System [USA]

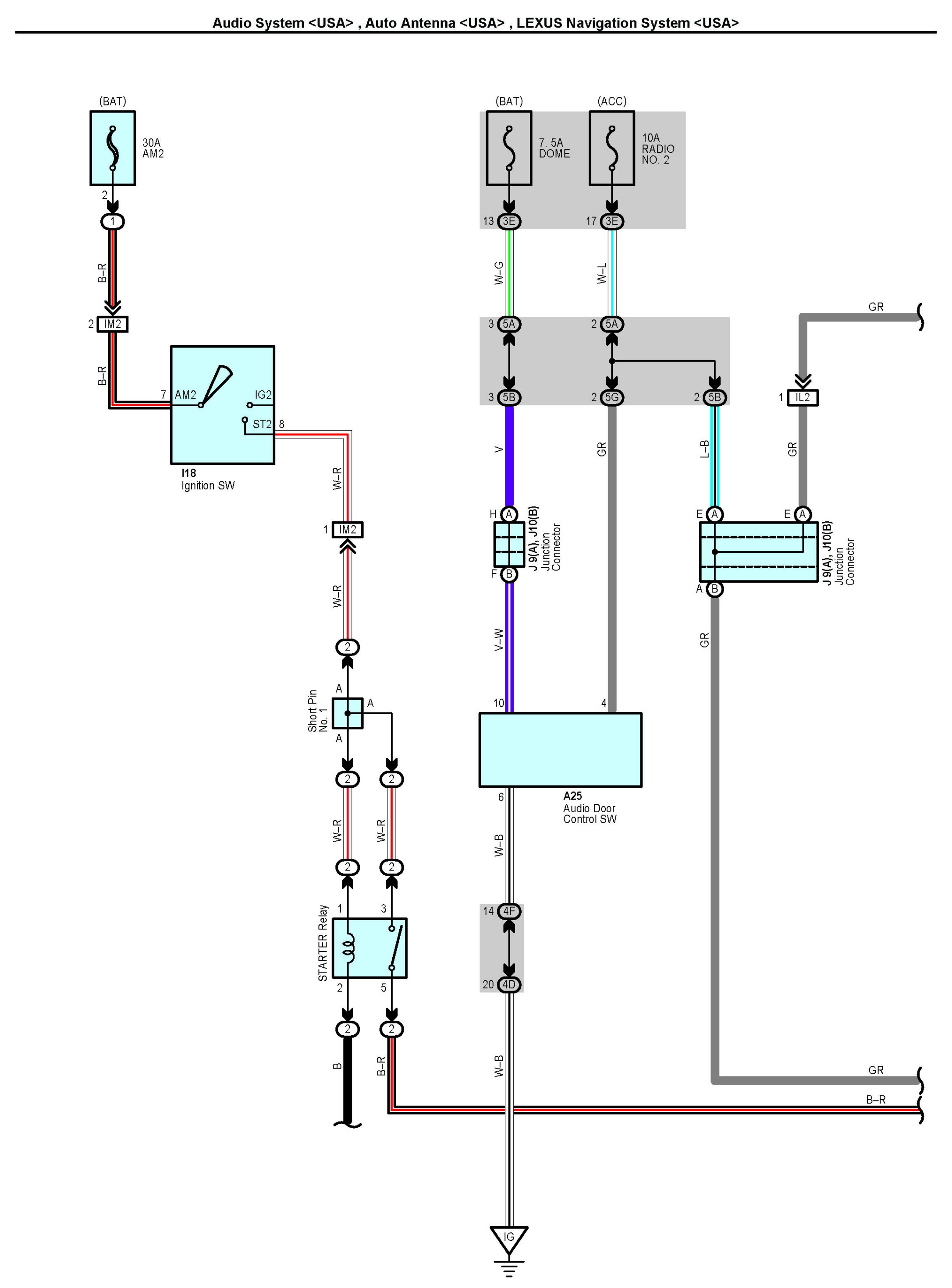

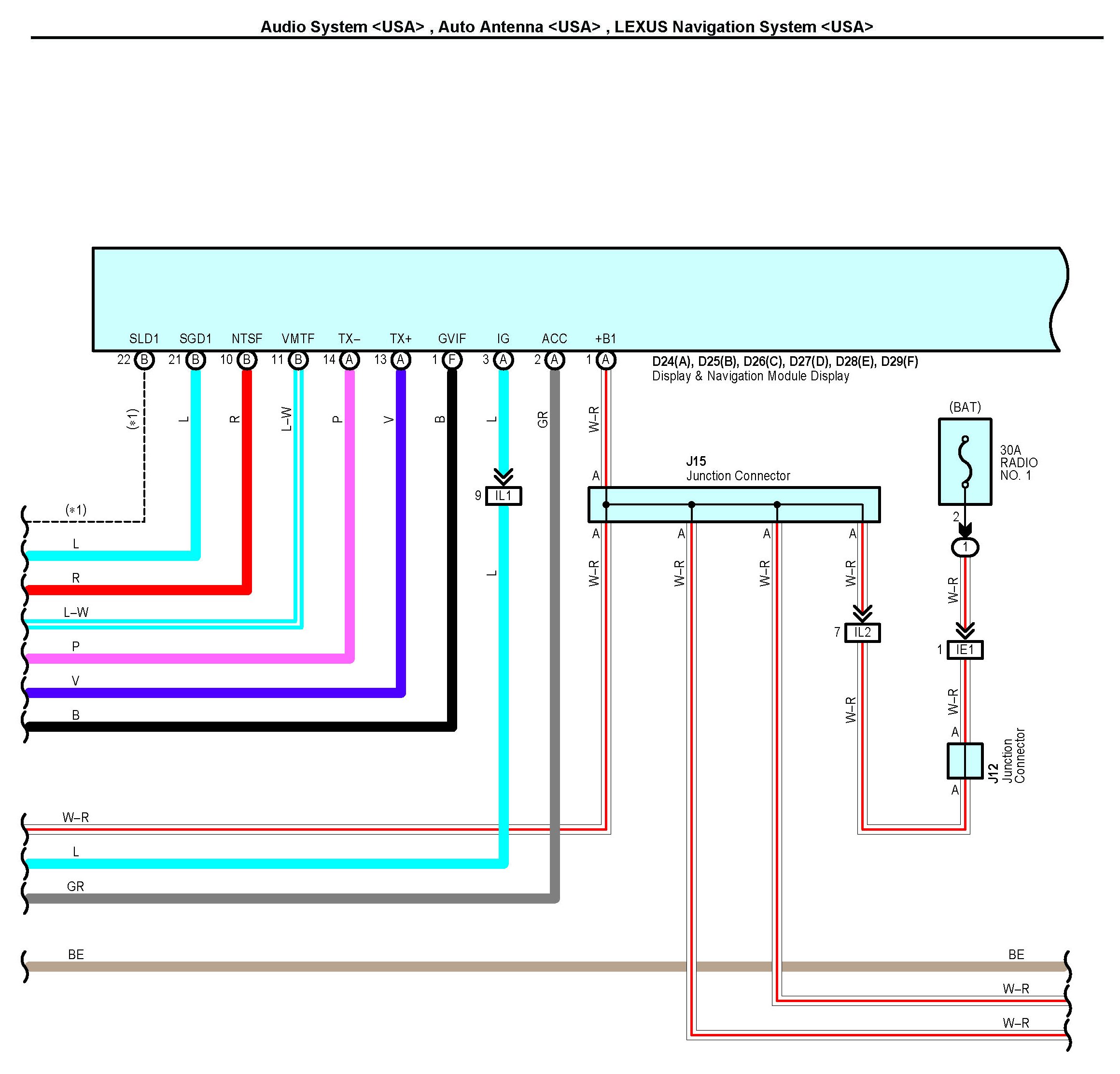

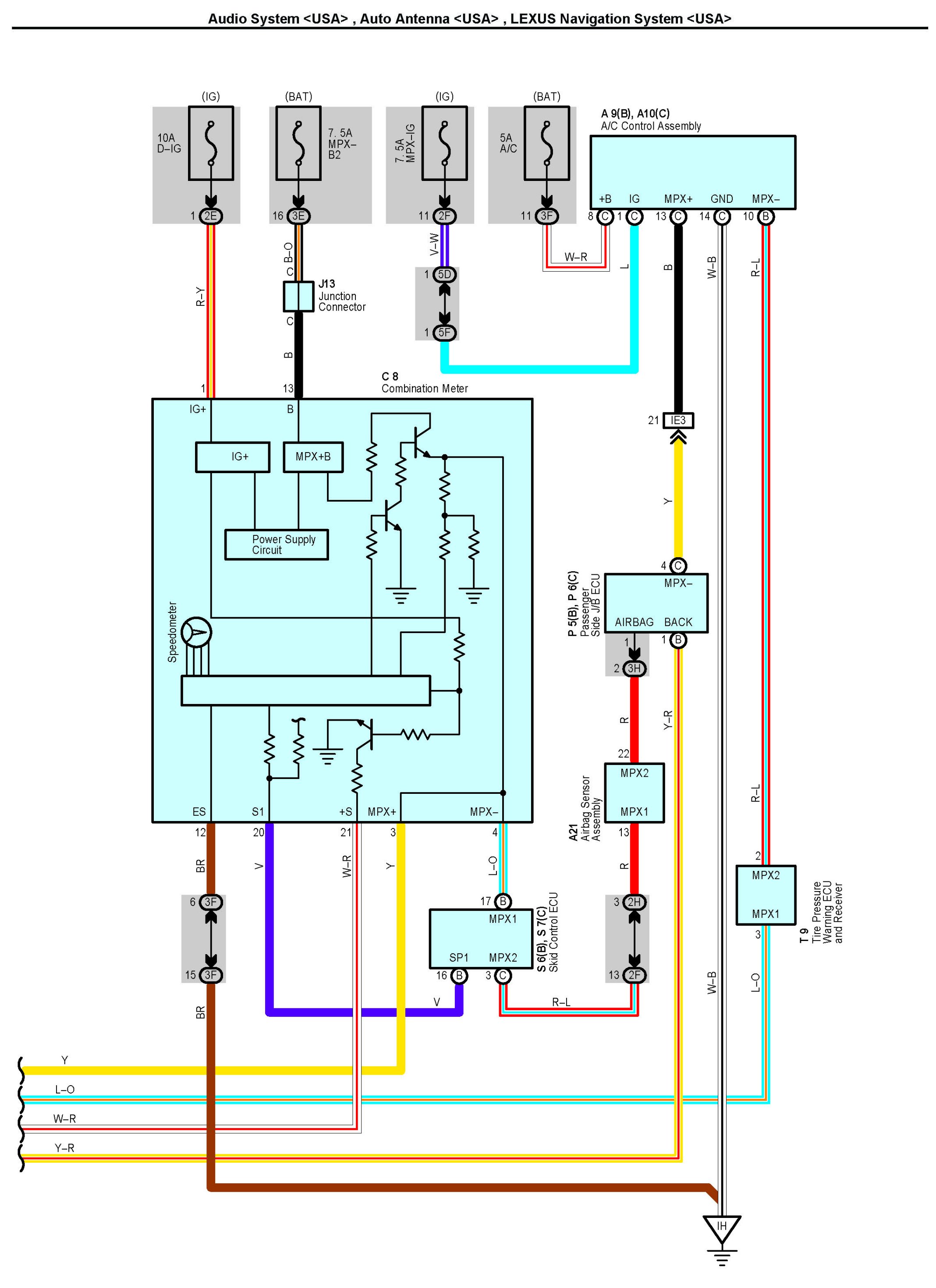

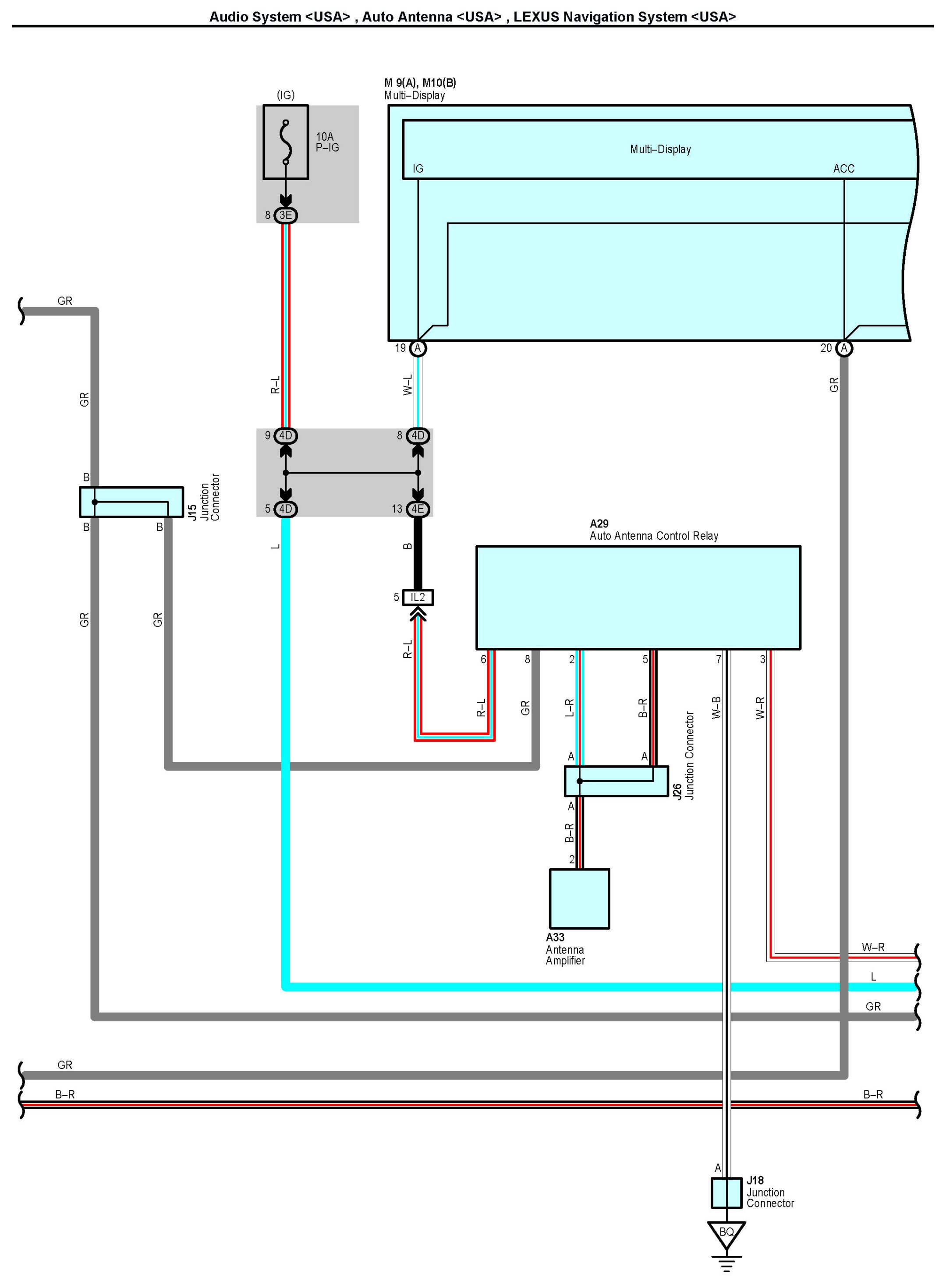

Audio System [USA], Auto Antenna [USA], Lexus Navigation System [USA] Part 1:

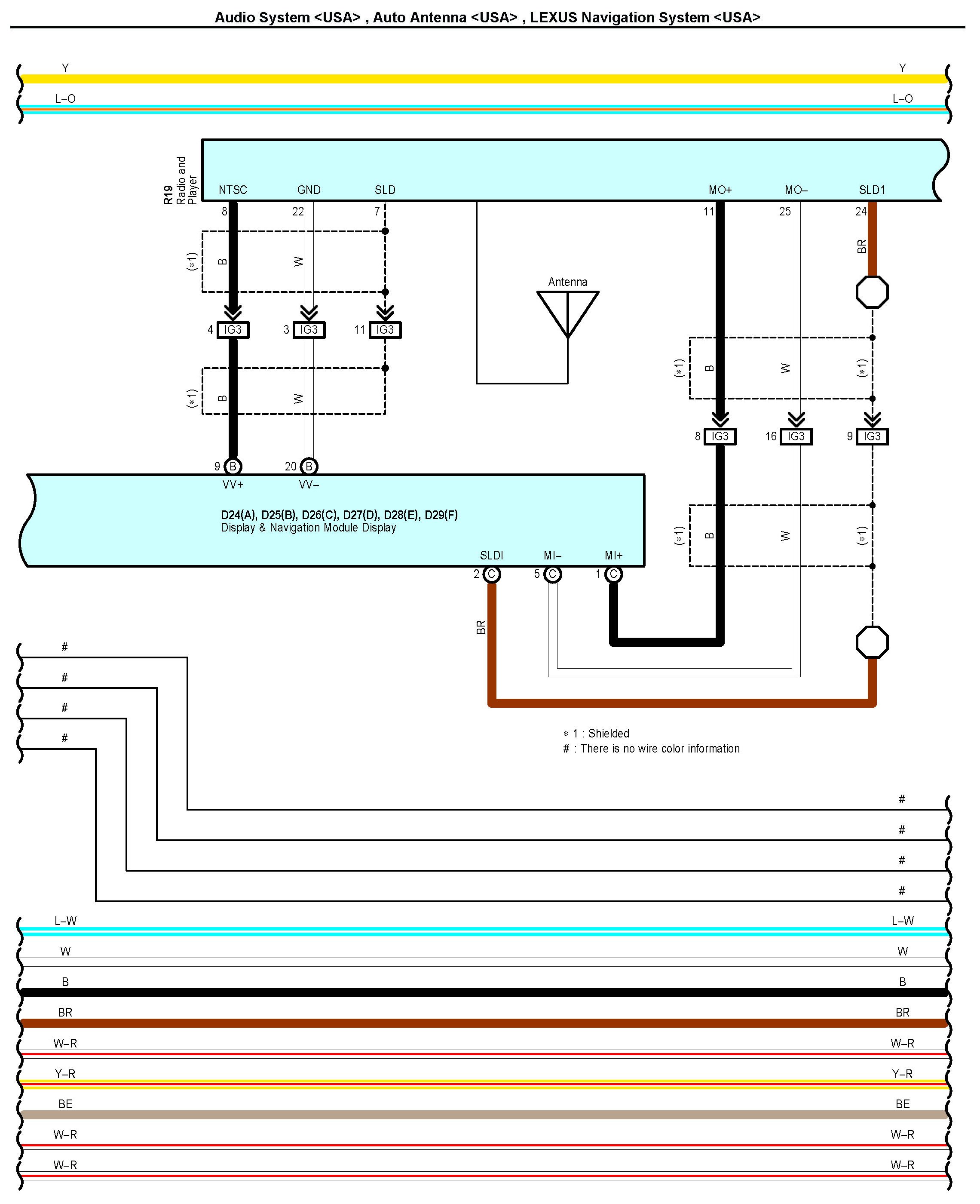

Audio System [USA], Auto Antenna [USA], Lexus Navigation System [USA] Part 2:

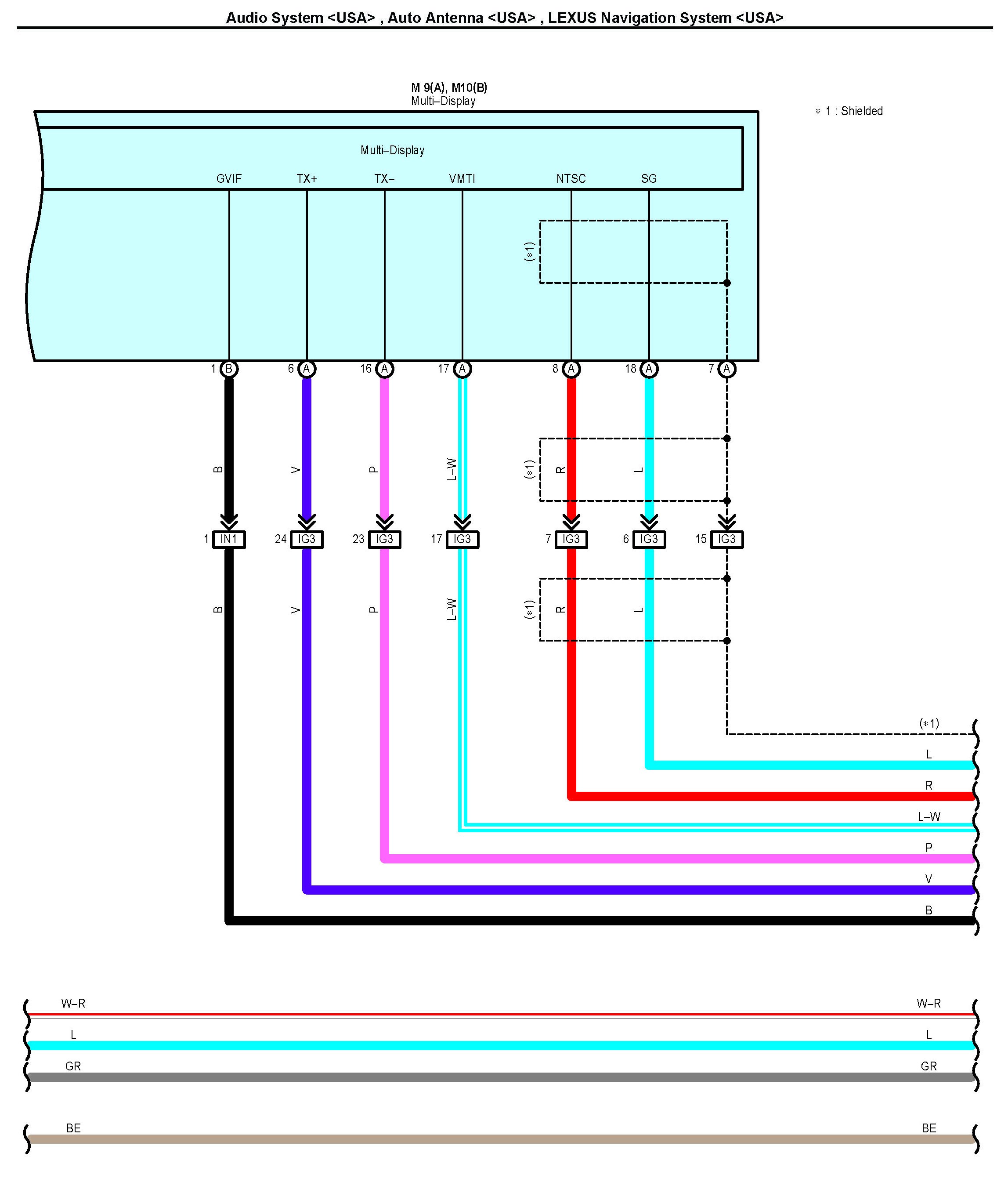

Audio System [USA], Auto Antenna [USA], Lexus Navigation System [USA] Part 3:

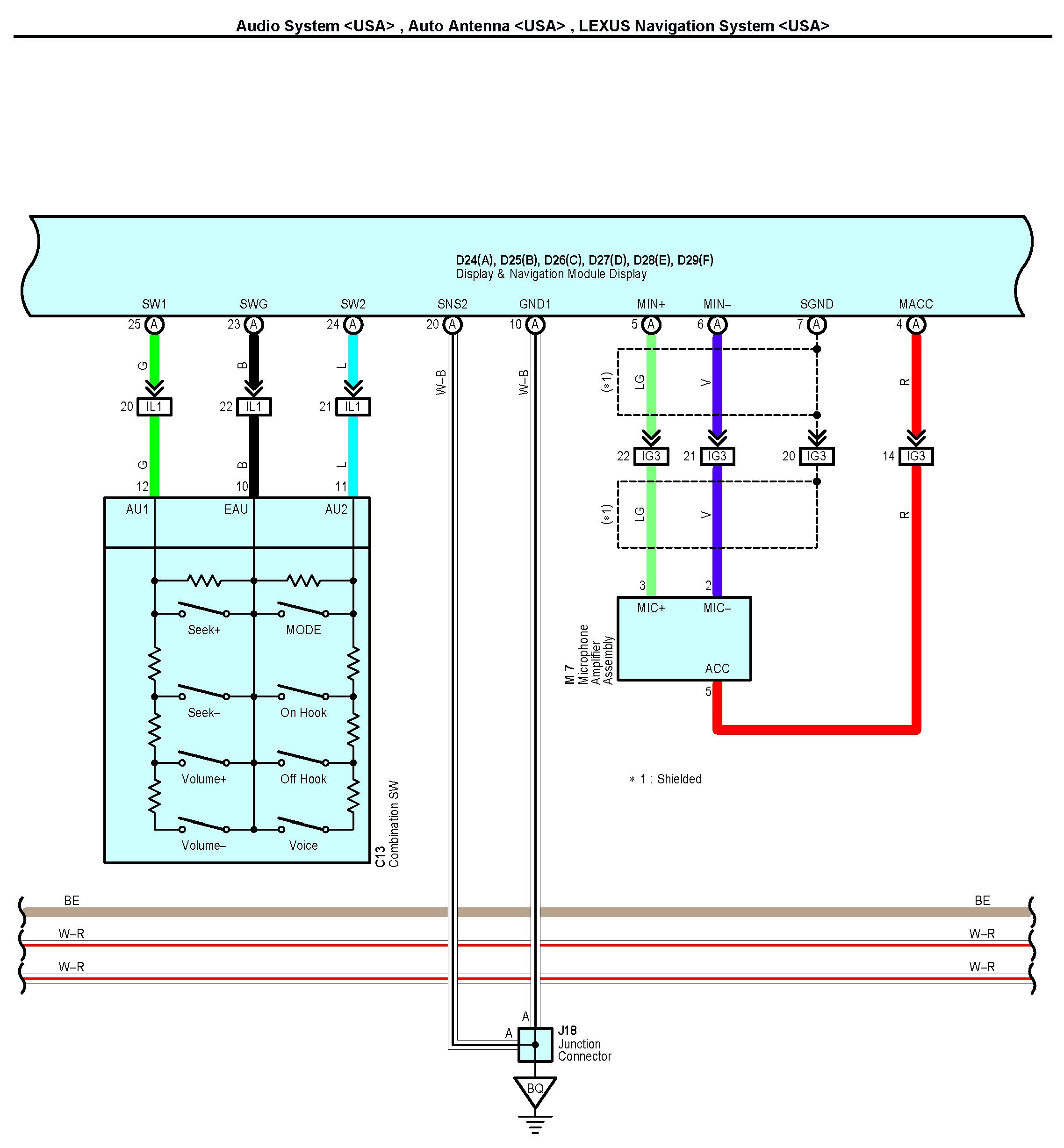

Audio System [USA], Auto Antenna [USA], Lexus Navigation System [USA] Part 4:

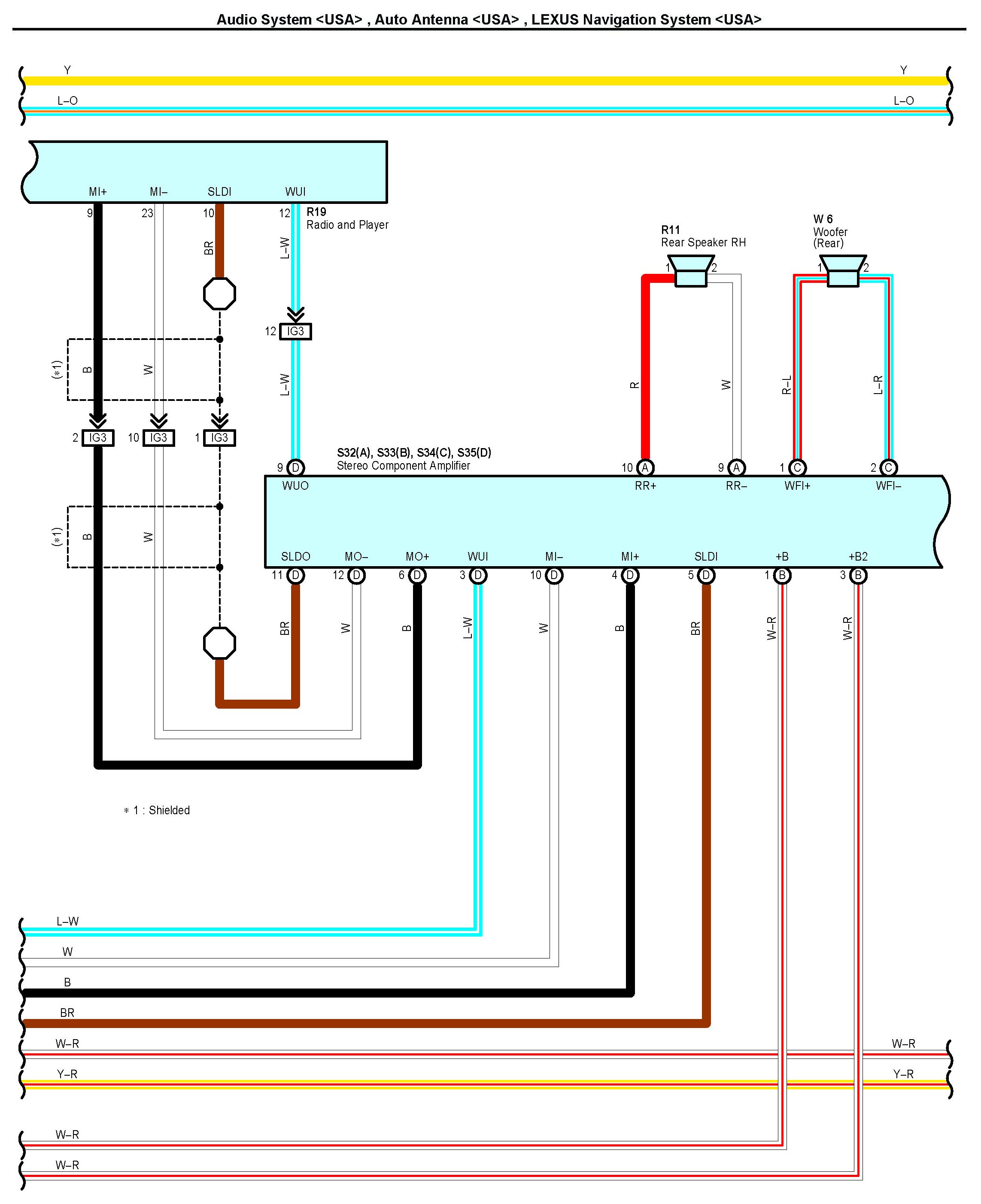

Audio System [USA], Auto Antenna [USA], Lexus Navigation System [USA] Part 5:

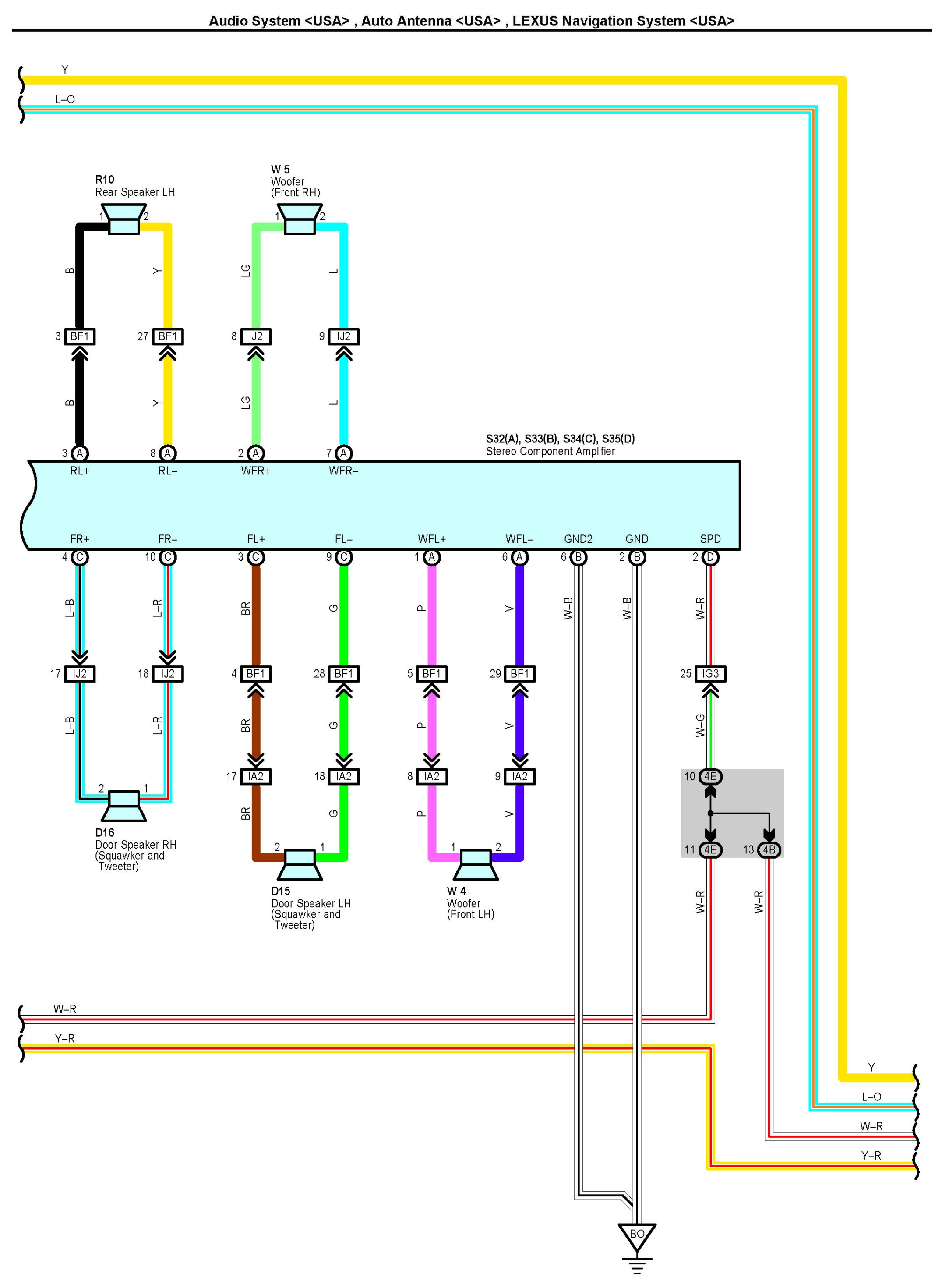

Audio System [USA], Auto Antenna [USA], Lexus Navigation System [USA] Part 6:

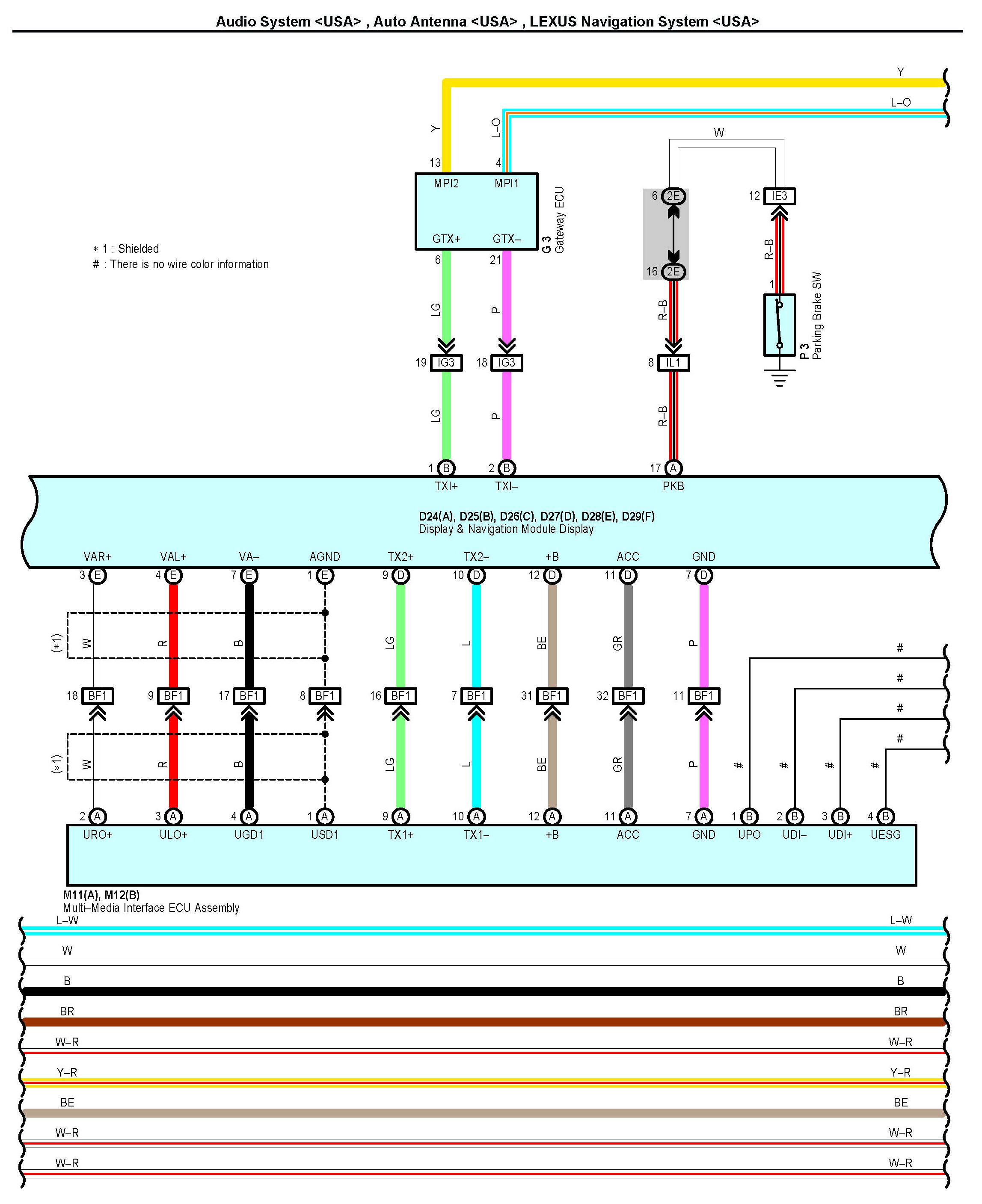

Audio System [USA], Auto Antenna [USA], Lexus Navigation System [USA] Part 7:

Audio System [USA], Auto Antenna [USA], Lexus Navigation System [USA] Part 8:

Audio System [USA], Auto Antenna [USA], Lexus Navigation System [USA] Part 9:

Audio System [USA], Auto Antenna [USA], Lexus Navigation System [USA] Part 10:

Audio System [USA], Auto Antenna [USA], Lexus Navigation System [USA] Part 11:

Audio System [USA], Auto Antenna [USA], Lexus Navigation System [USA] Part 12:

Audio System [USA], Auto Antenna [USA], Lexus Navigation System [USA] Part 13:

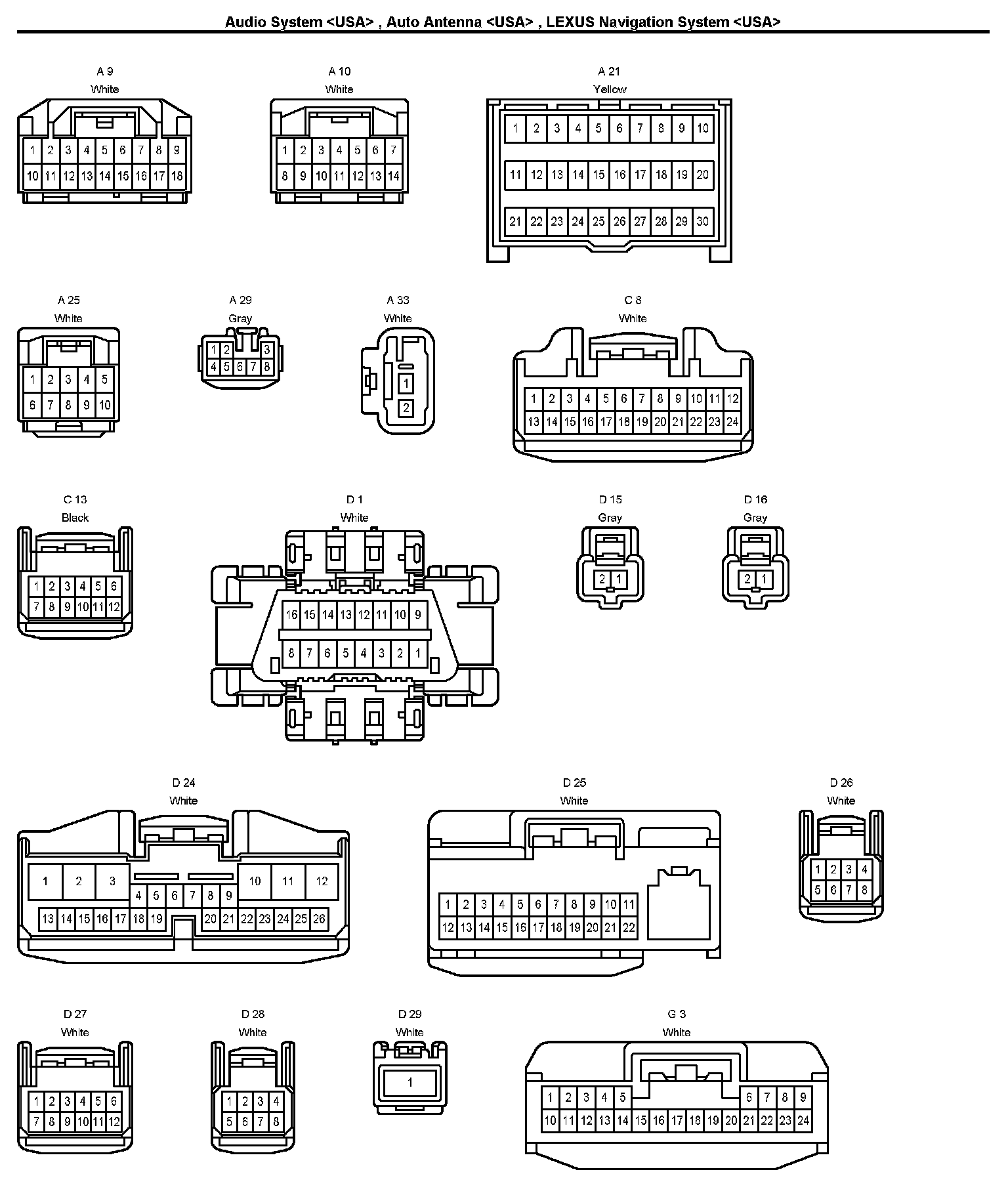

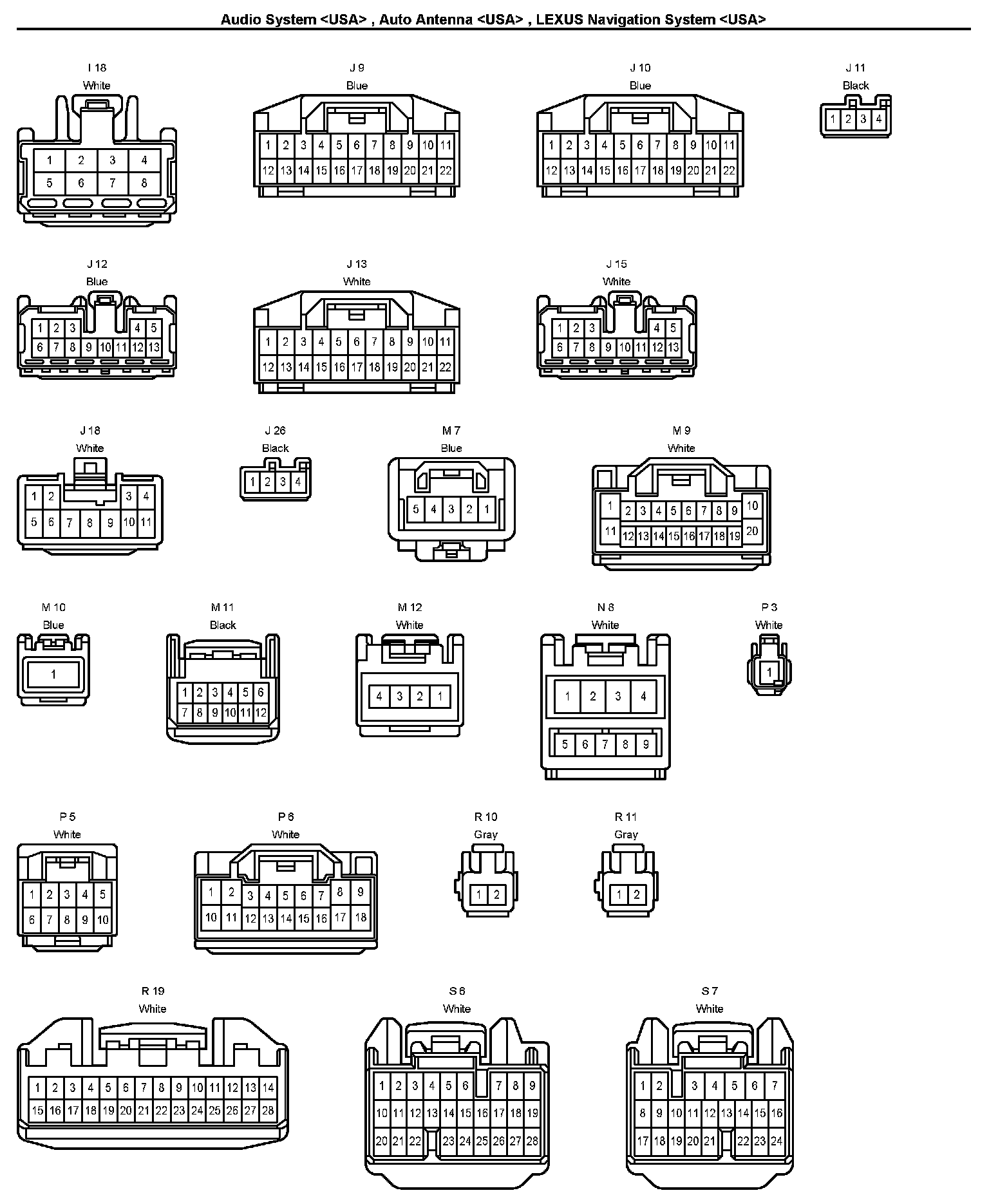

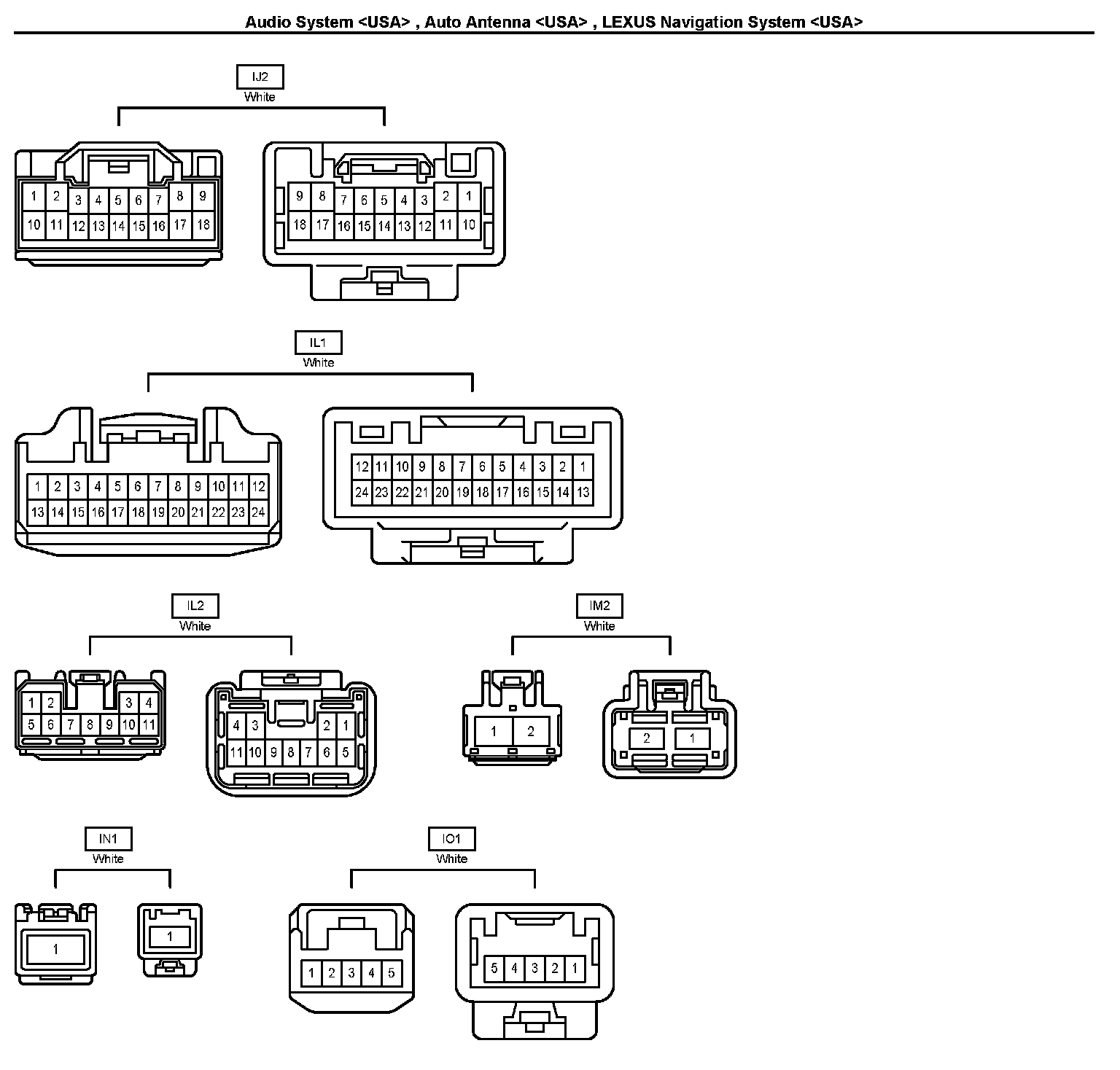

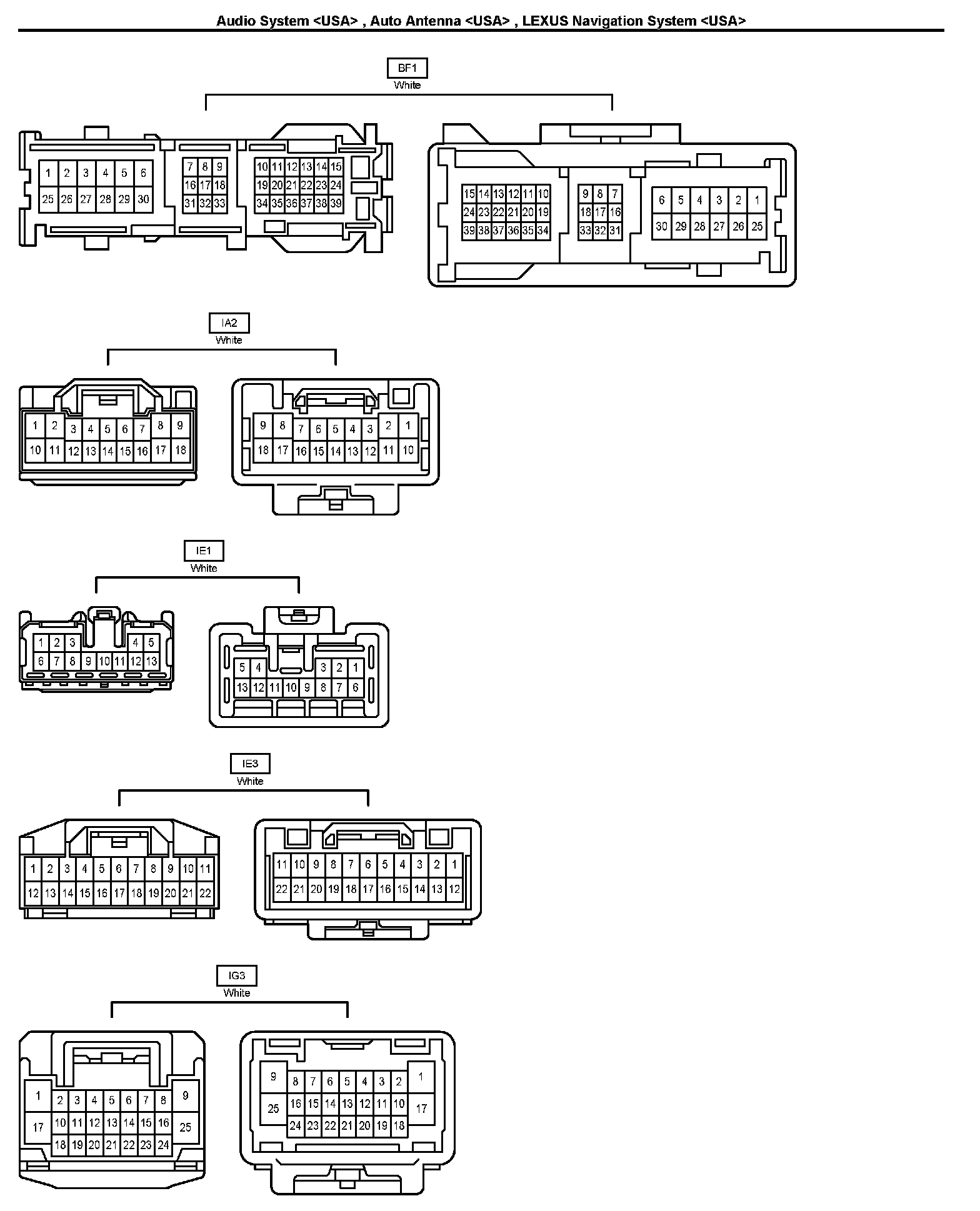

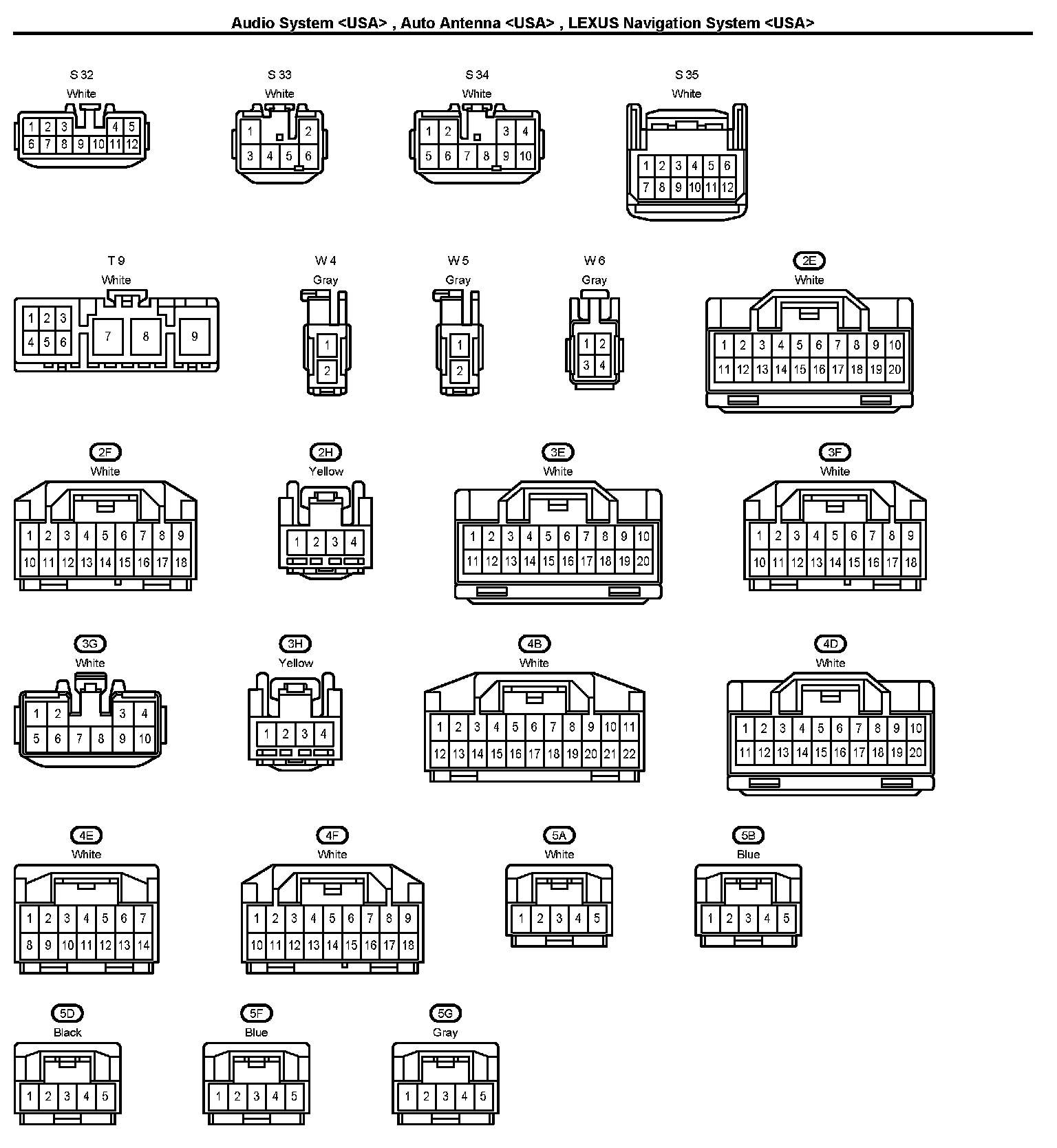

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
