Audible Warning Device

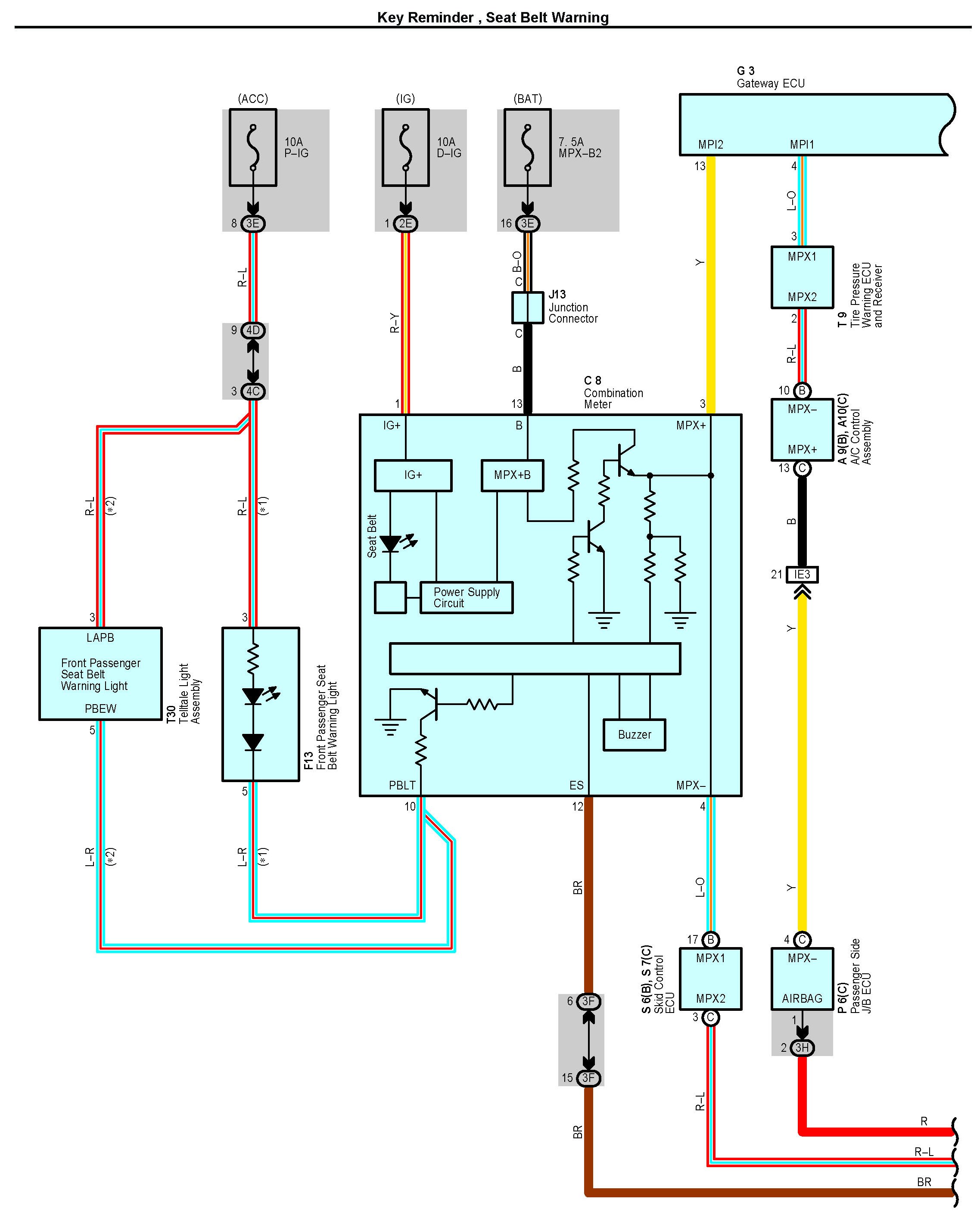

Key Reminder, Seat Belt Warning Part 1:

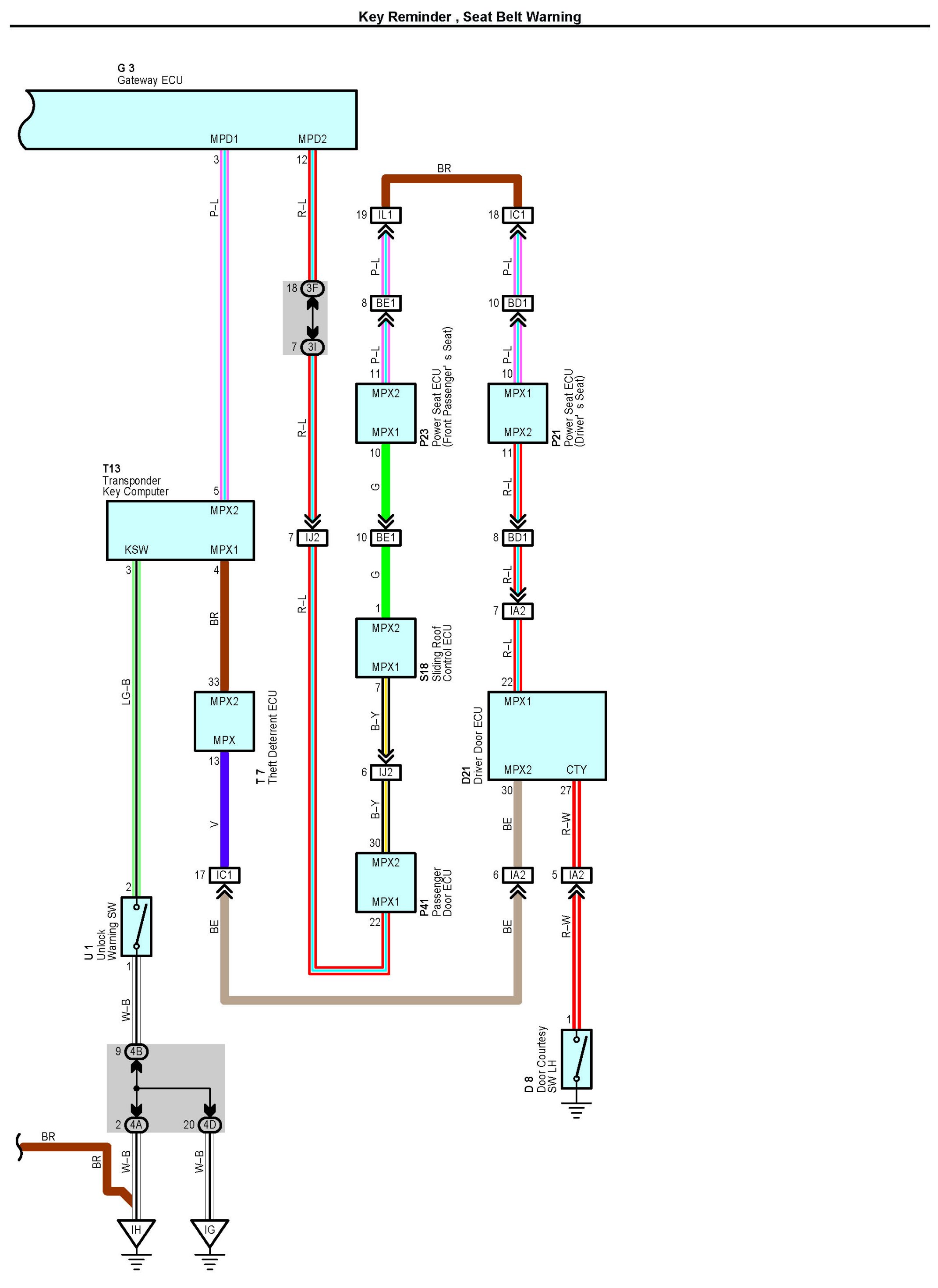

Key Reminder, Seat Belt Warning Part 2:

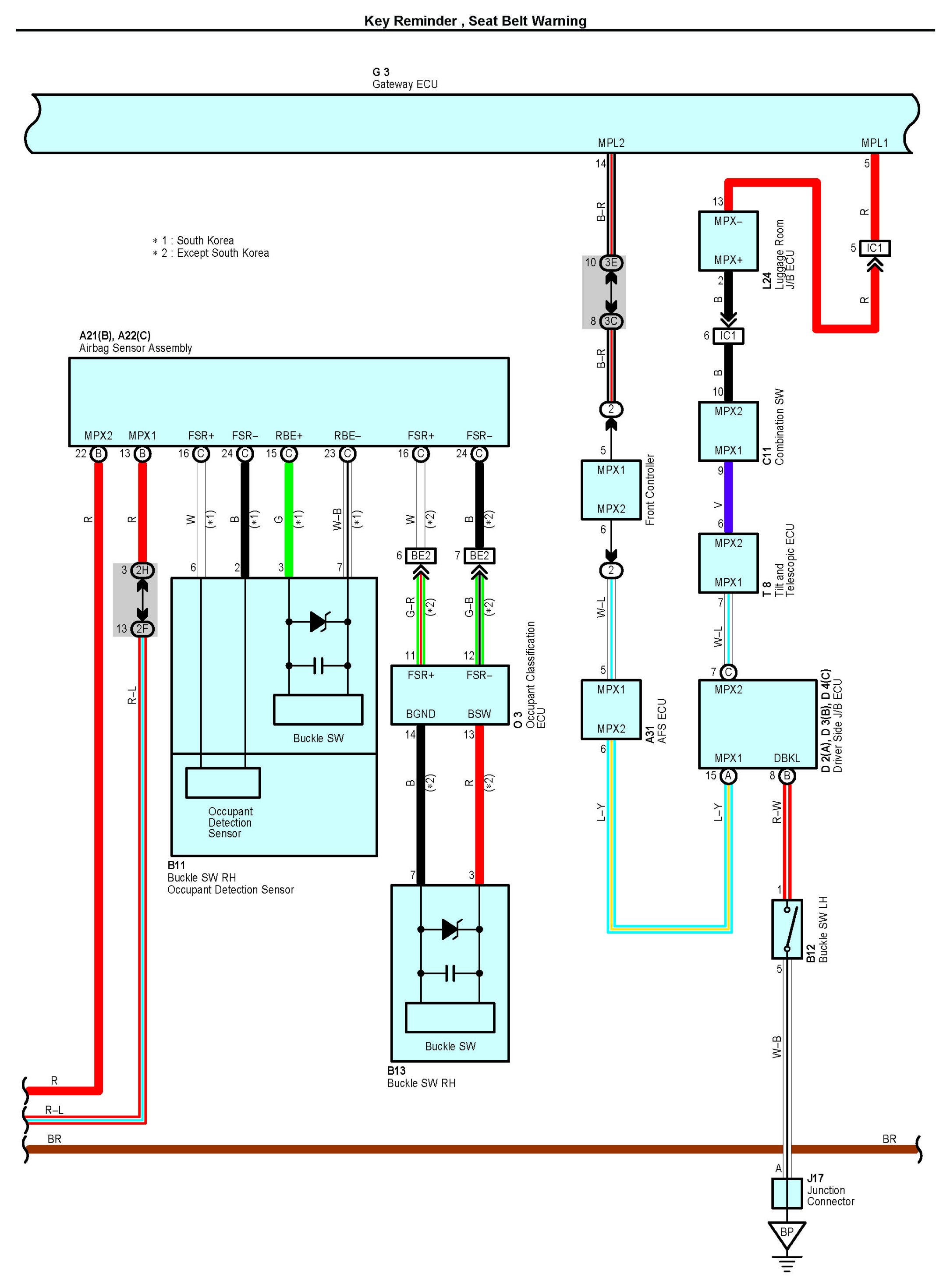

Key Reminder, Seat Belt Warning Part 3:

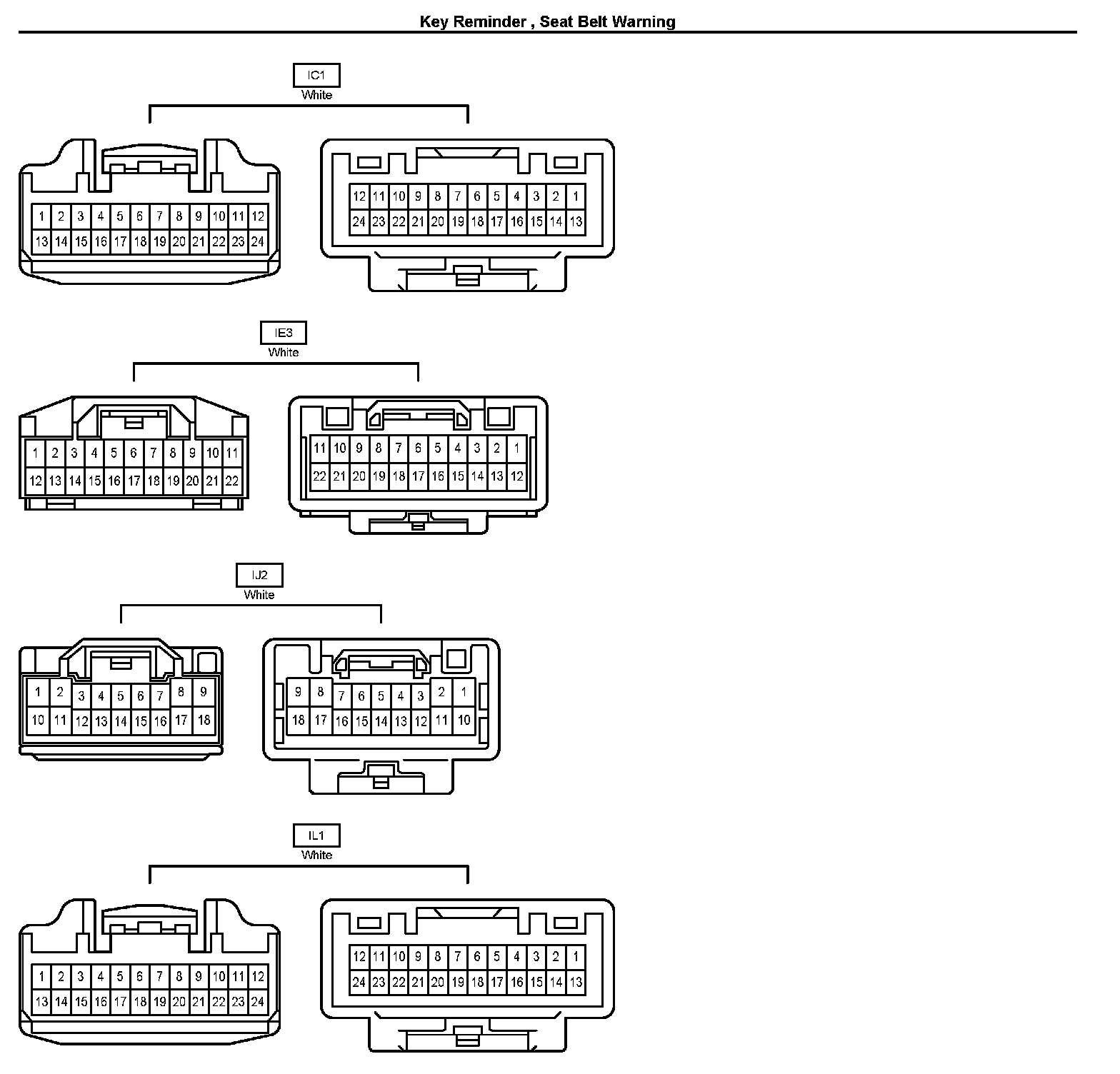

Connectors Part 1:

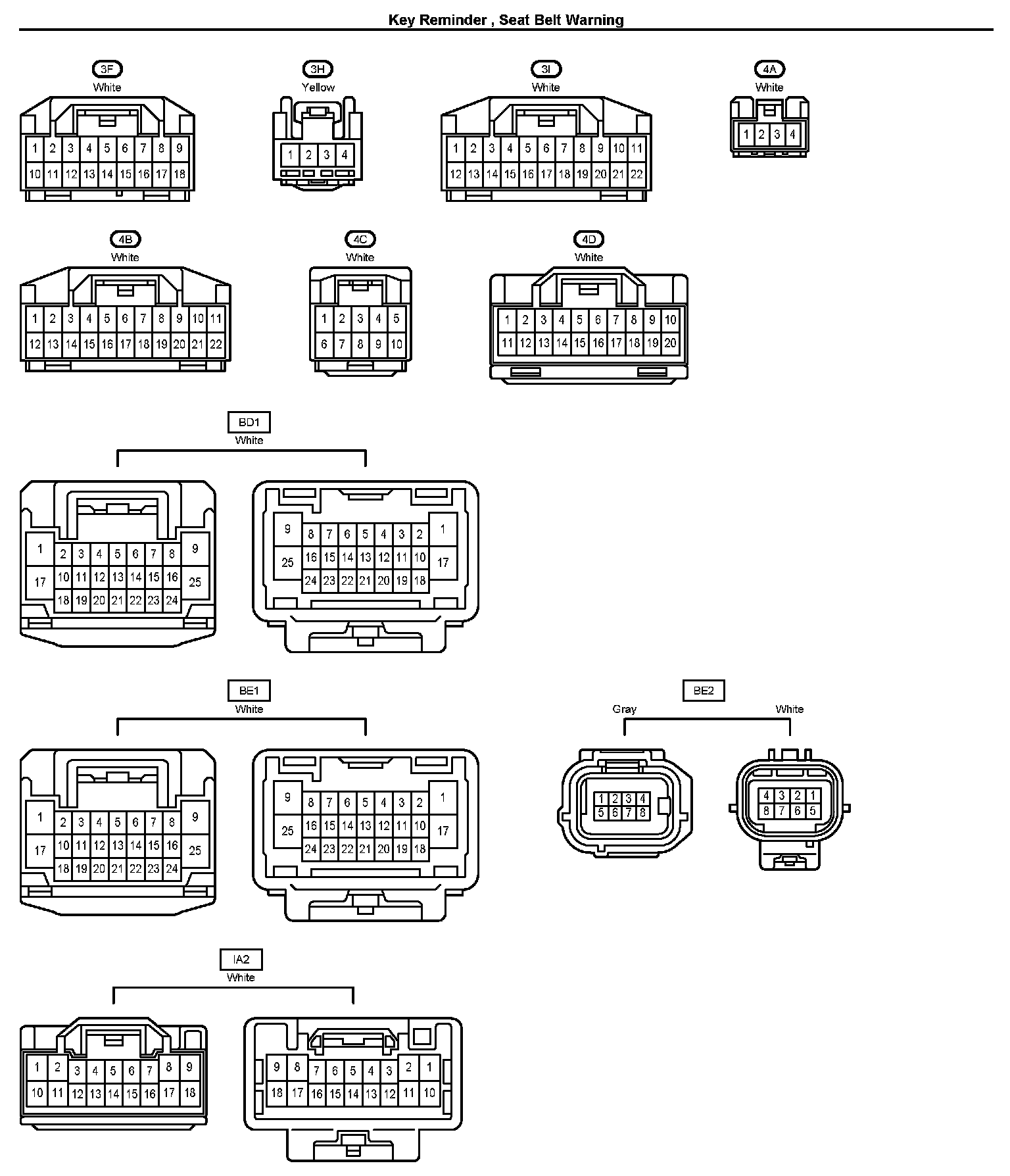

Connectors Part 2:

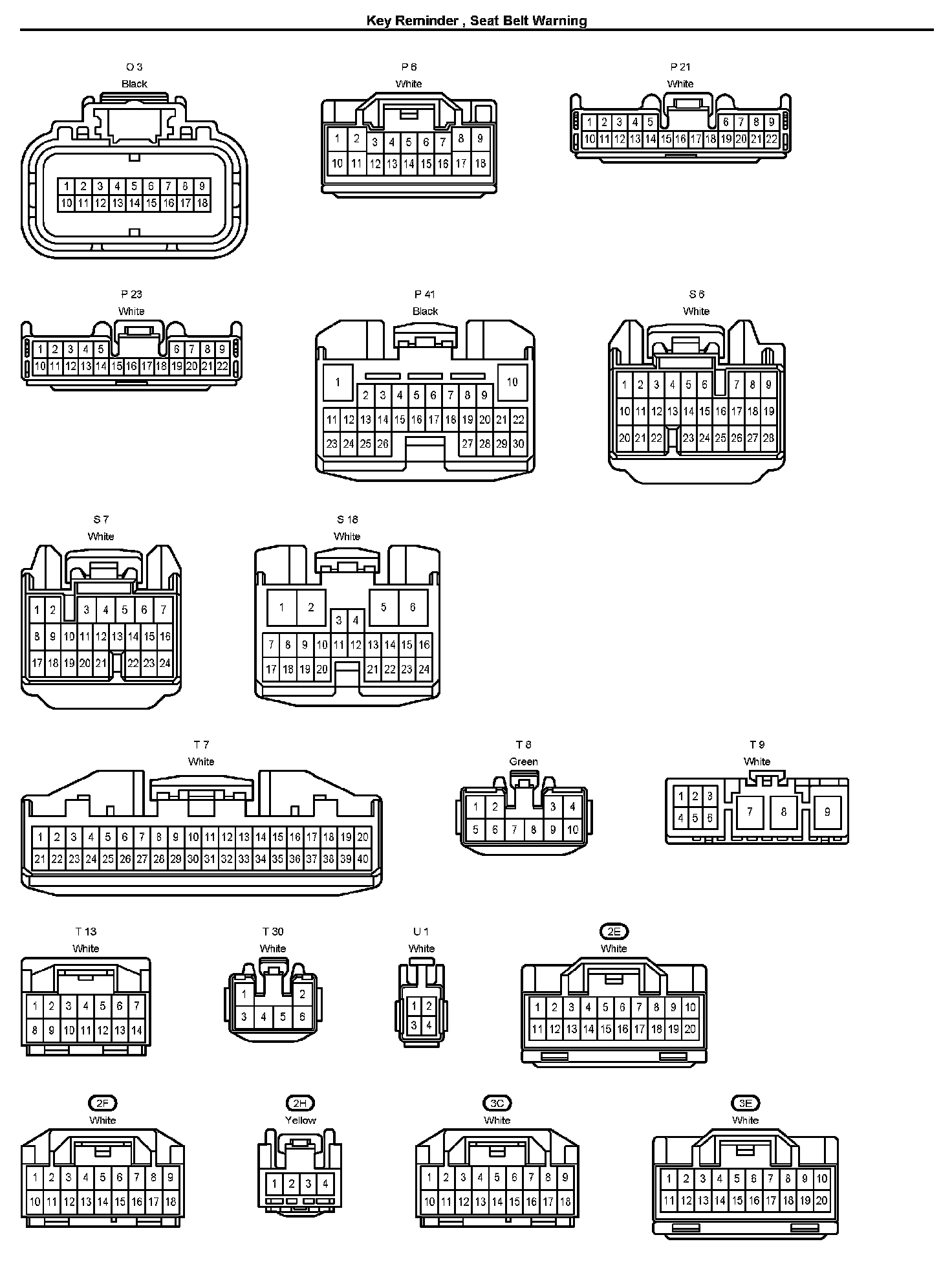

Connectors Part 3:

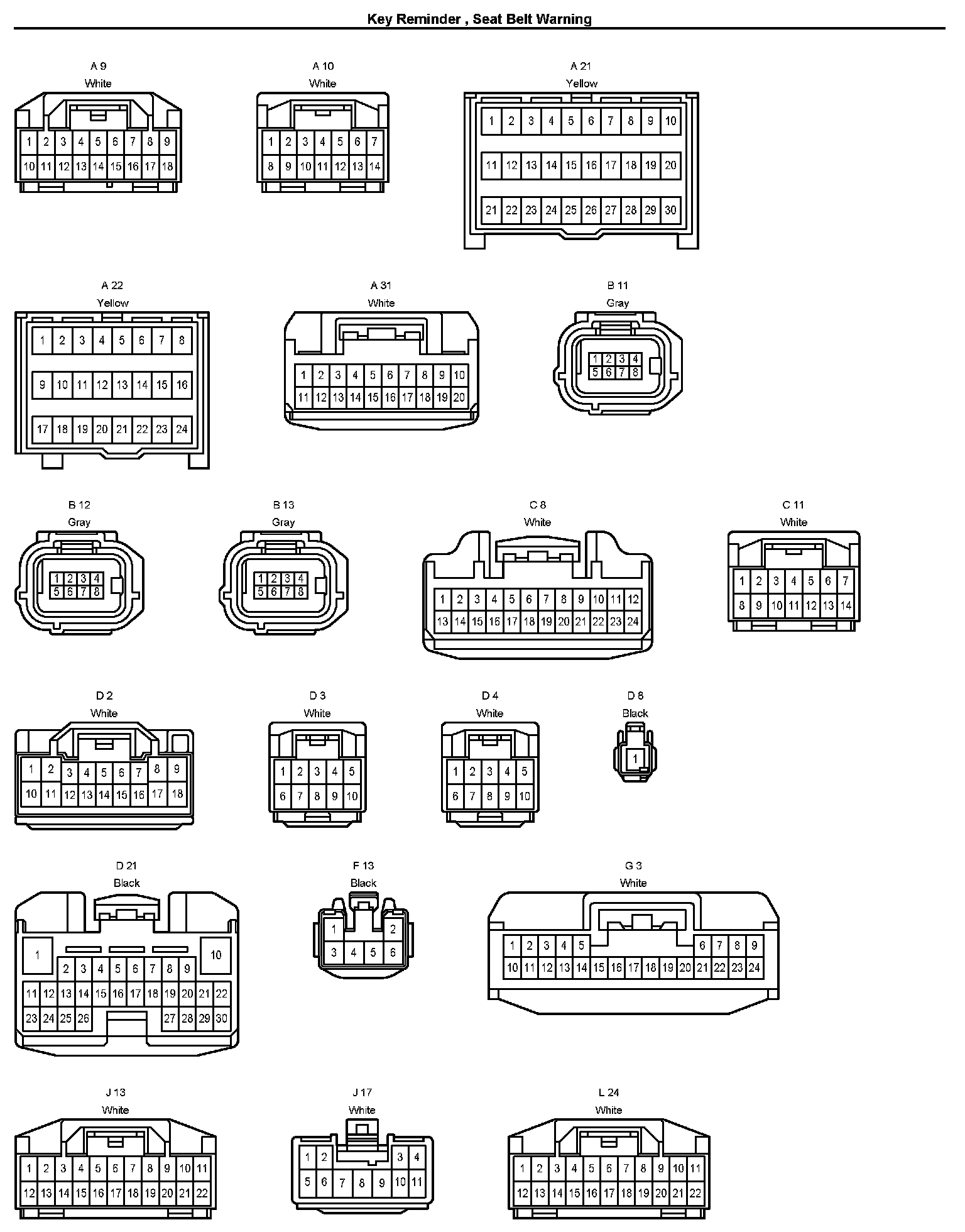

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
