Wire and Wire In Instrument Panel

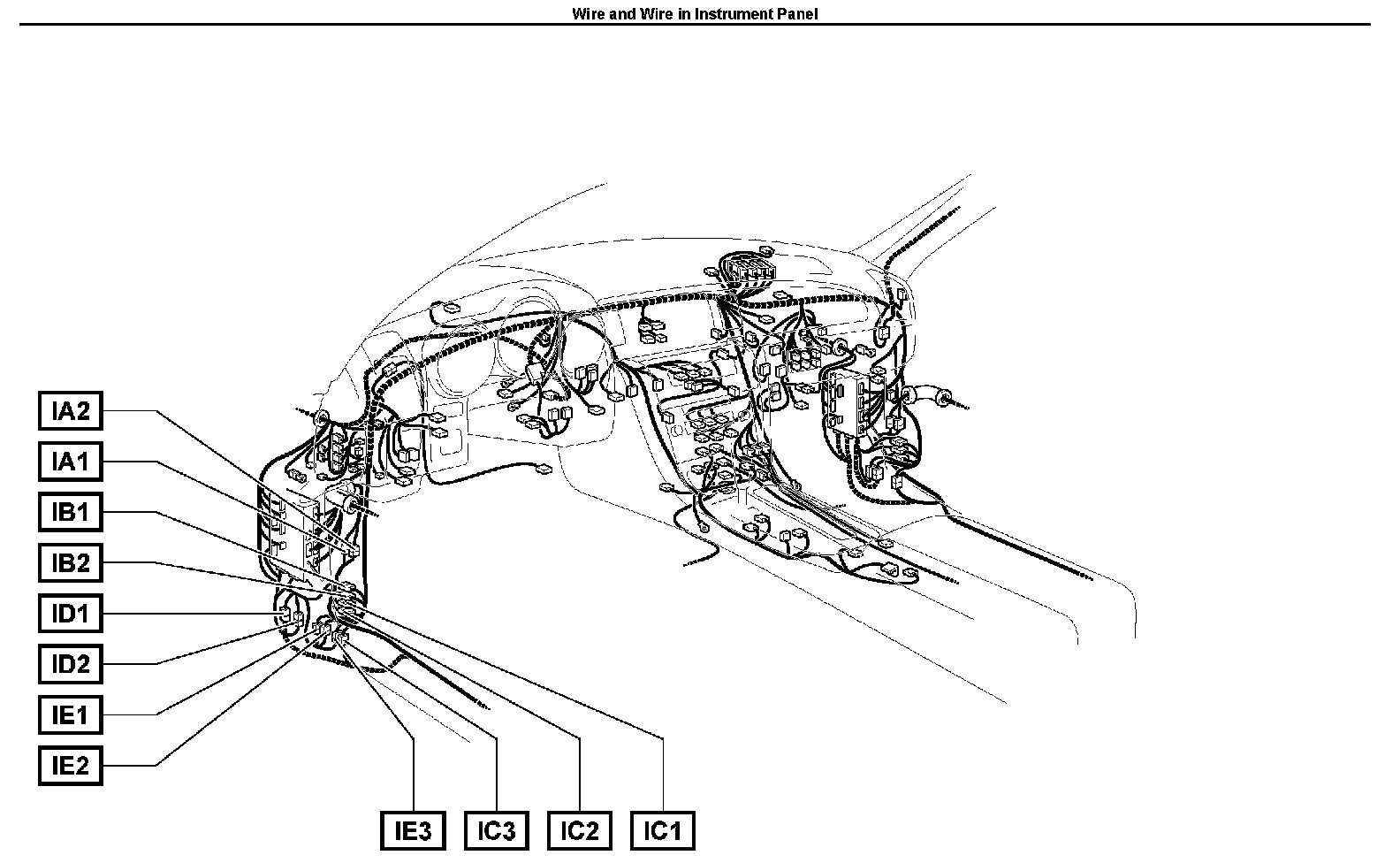

IA1-IE3 Positions:

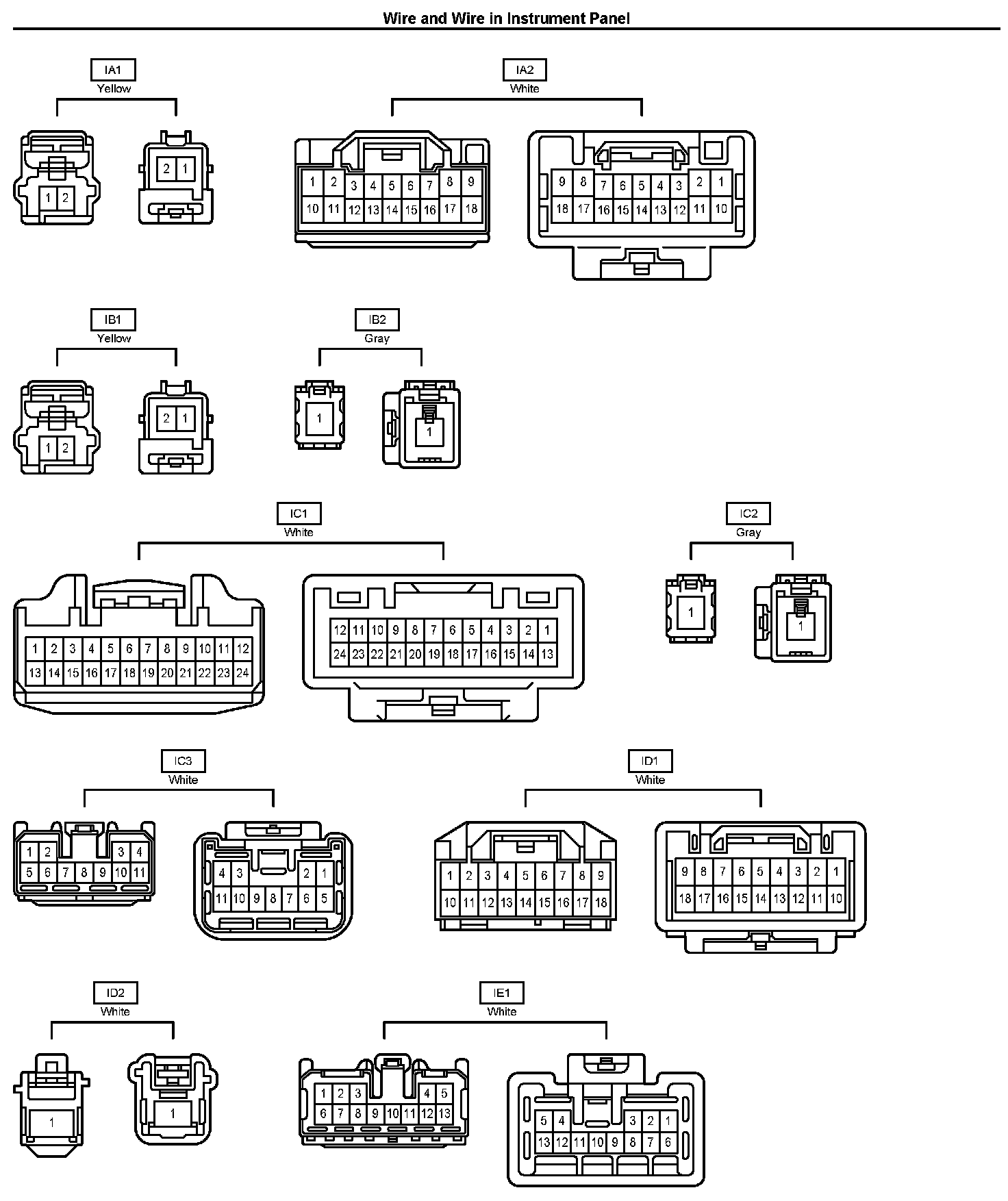

IA1-IE1 Connector Views:

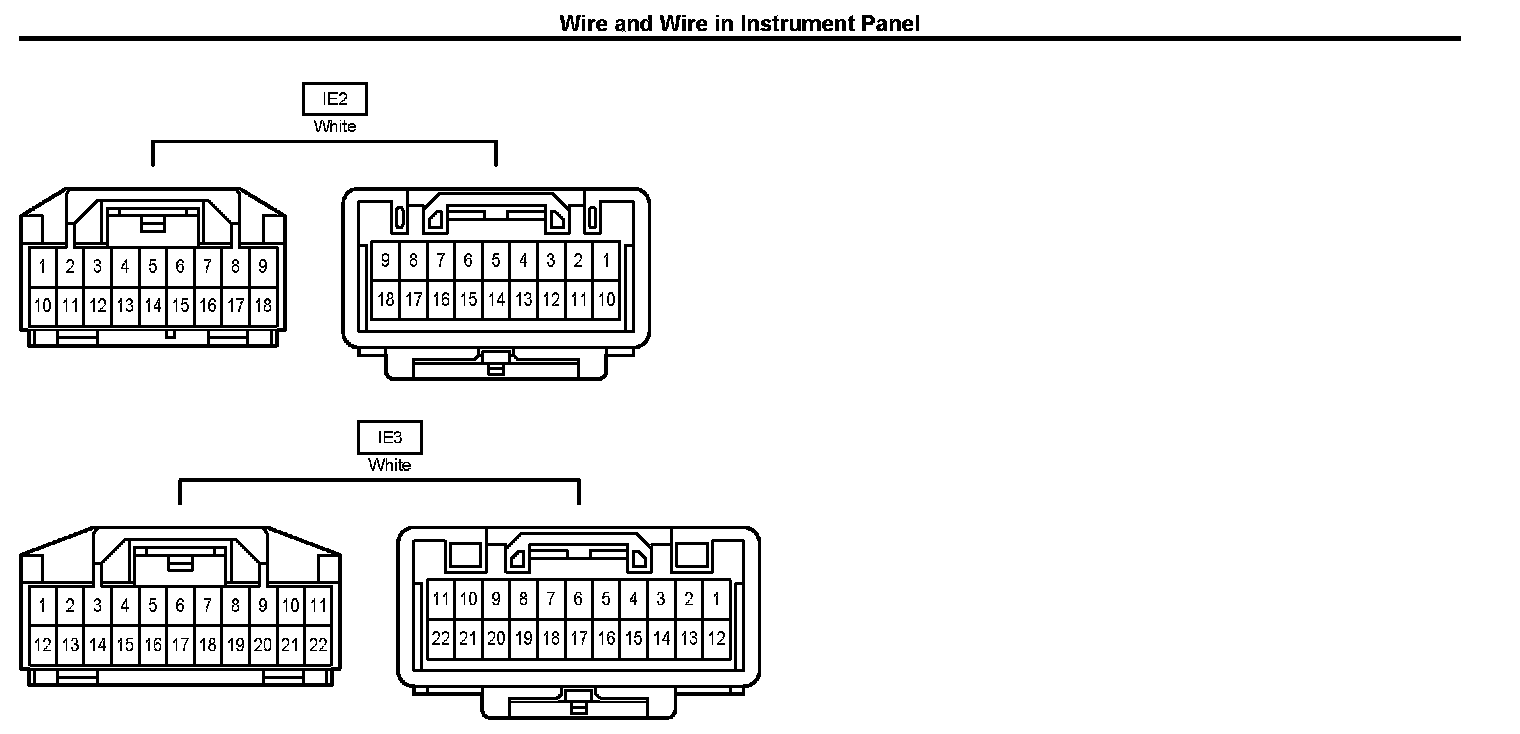

IE2-IE3 Connector Views:

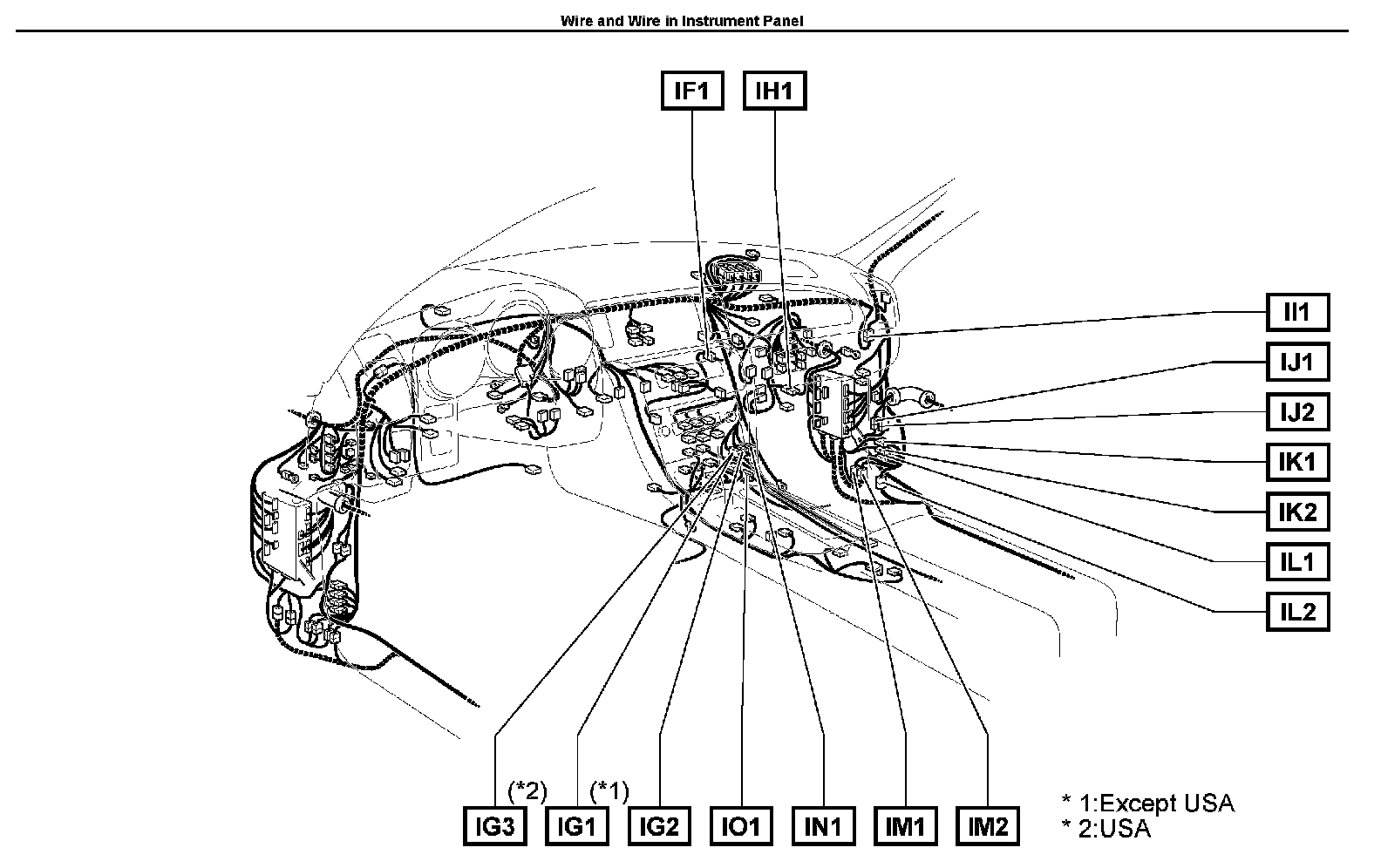

IF1-IO1 Positions:

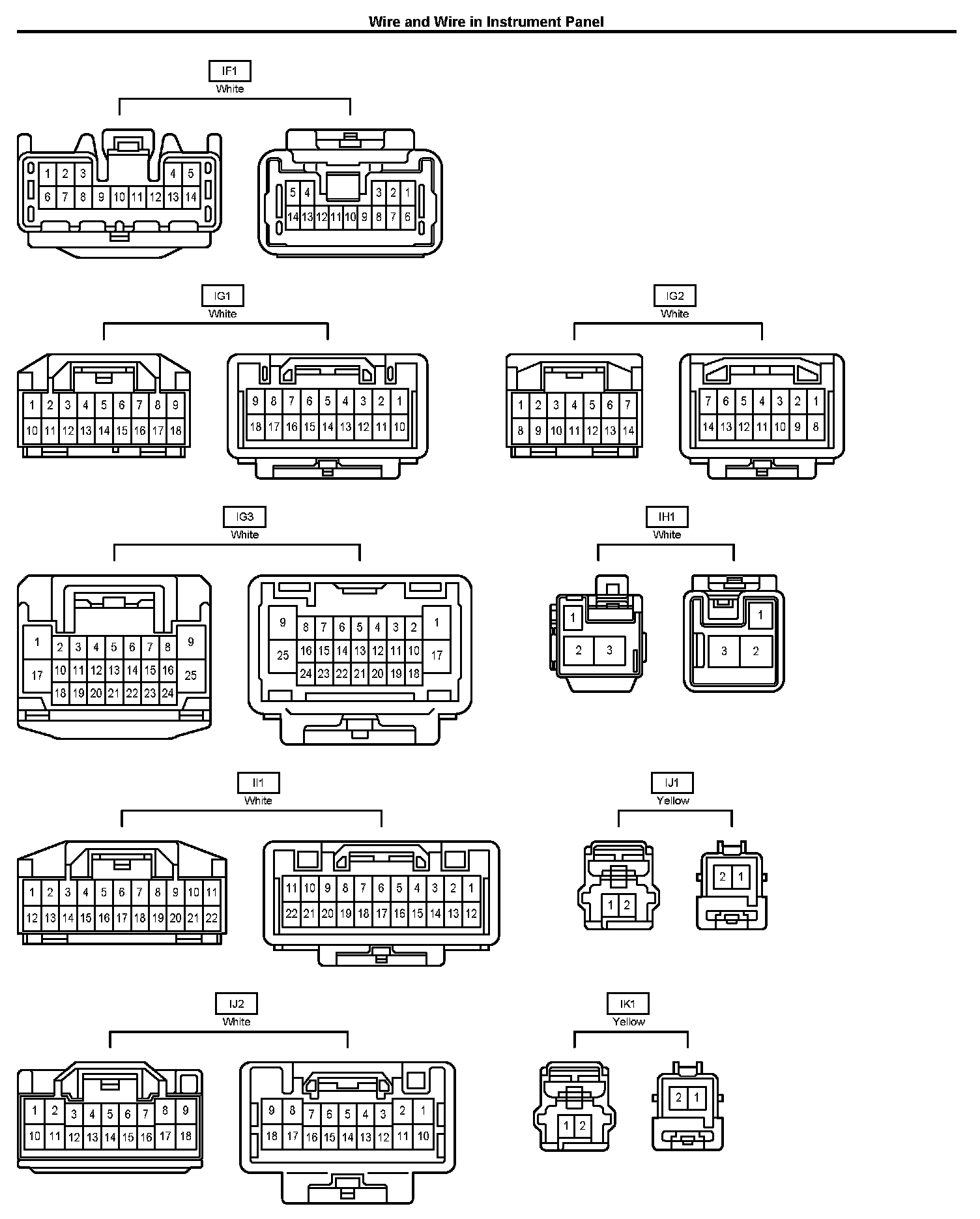

IF1-IK1 Connector Views:

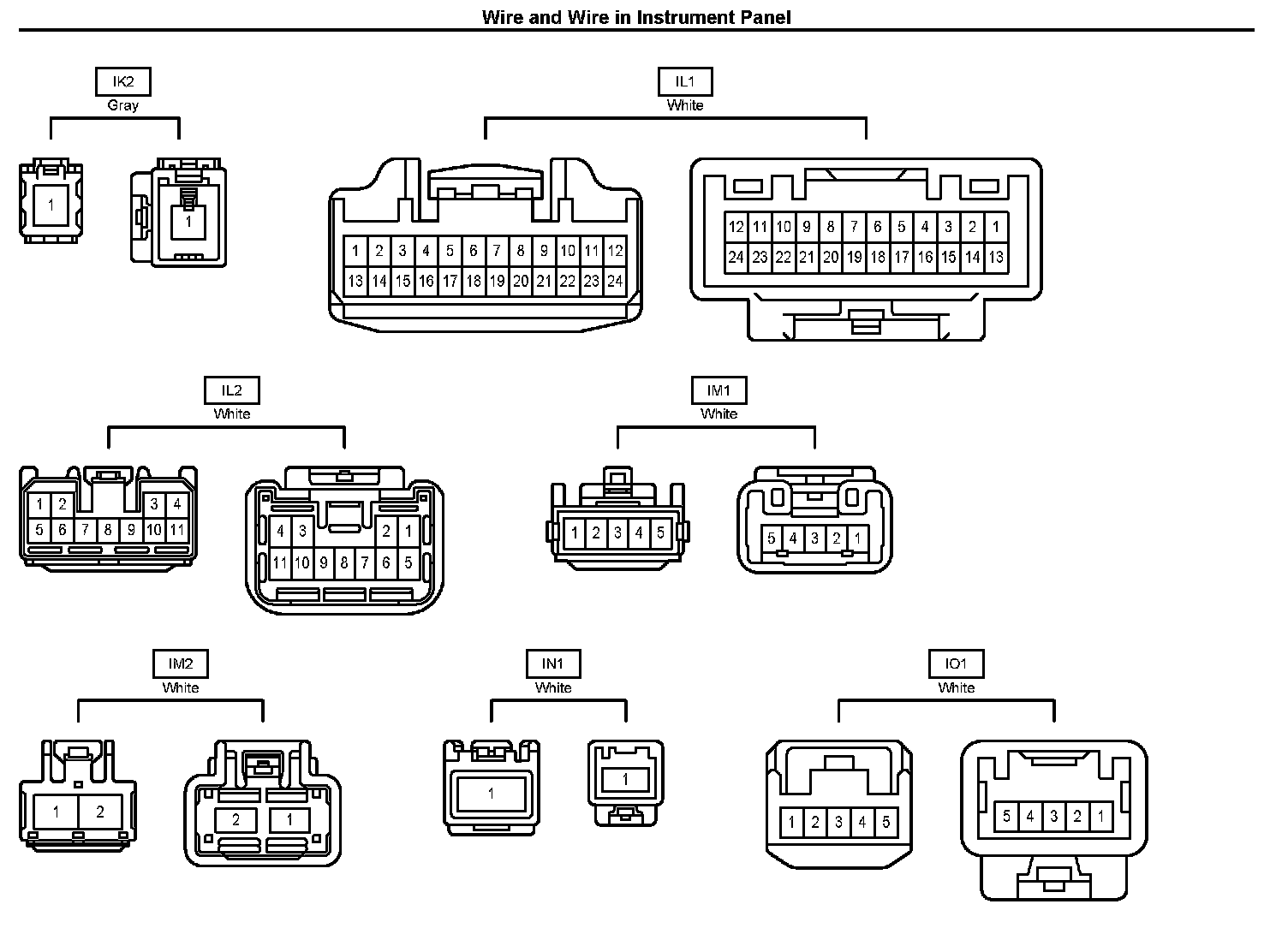

IK2-IO1 Connector Views:
