Inspection

BRAKE: HYDRAULIC BRAKE BOOSTER: INSPECTION

1. CHECK BRAKE BOOSTER PUMP ASSEMBLY

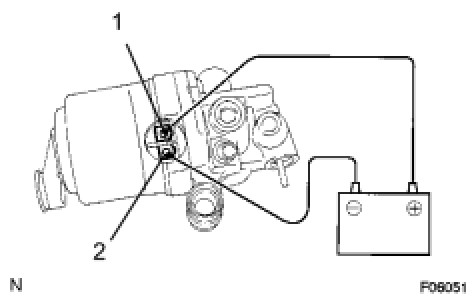

(a) Connect the positive (+) battery lead to terminal 1 of the pump motor, and the negative (-) battery lead to terminal 2.





(b) Check the pump operation.

If the result is not as specified, replace the pump.
