Disposal

BRAKE: HYDRAULIC BRAKE BOOSTER: DISPOSAL

1. DISPOSE OF BRAKE BOOSTER ACCUMULATOR ASSEMBLY

(a) Discharge the high pressure gas from the accumulator.





(1) Mount the accumulator in a vise.

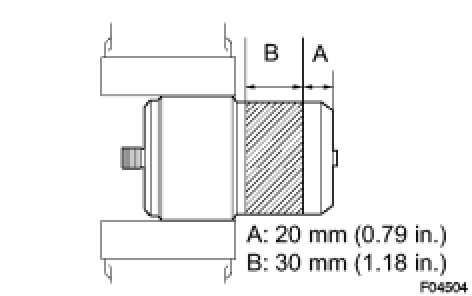

(2) Set a saw to the area (B) to be cut. Cover the saw with a cloth.

(3) Gradually cut the accumulator body.

HINT
When the outer body of the accumulator is cut, gas discharges.
