Reassembly

PARKING BRAKE: PARKING BRAKE ASSEMBLY: REASSEMBLY

HINT

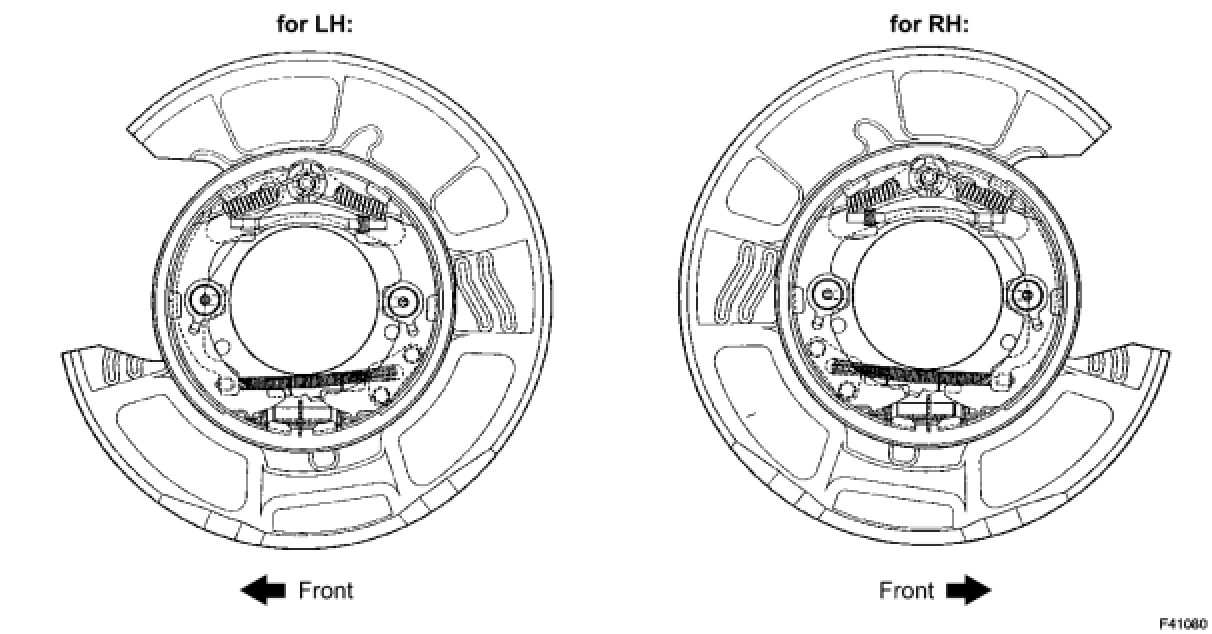

* Use the same procedures for the LH side and RH side.
* The procedures listed below are for the LH side.
1. APPLY HIGH TEMPERATURE GREASE

(a) Apply high temperature grease to the contact areas of the shoes and backing plate.

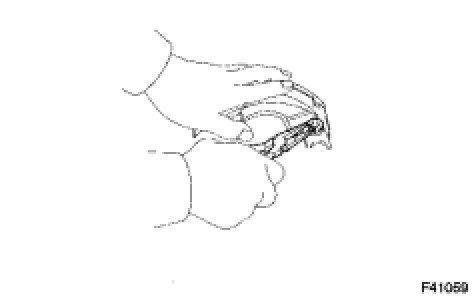

2. INSTALL PARKING BRAKE SHOE LEVER LH

(a) Install the lever.





(b) Install the shim.

(c) Install a new C-washer.

3. RECHECK CLEARANCE BETWEEN PARKING BRAKE SHOE AND LEVER Component Tests and General Diagnostics

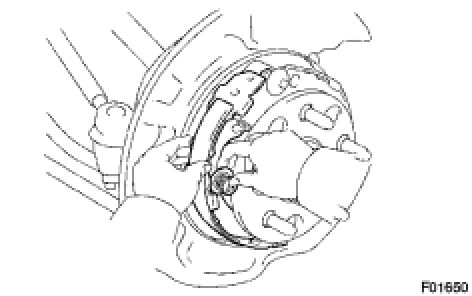

4. INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY LH

(a) Connect the No. 3 parking brake cable to the parking brake shoe lever.

(b) Install the shoe with the 2 cups, shoe hold-down spring and pin.

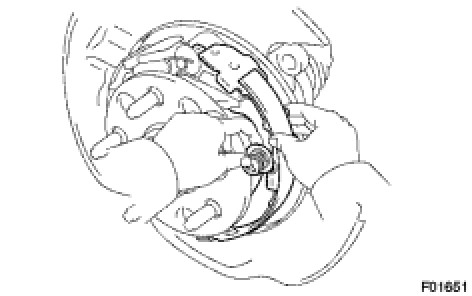

5. INSTALL NO. 1 PARKING BRAKE SHOE ASSEMBLY LH

(a) Install the shoe with the 2 cups, shoe hold-down spring and pin.





6. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET

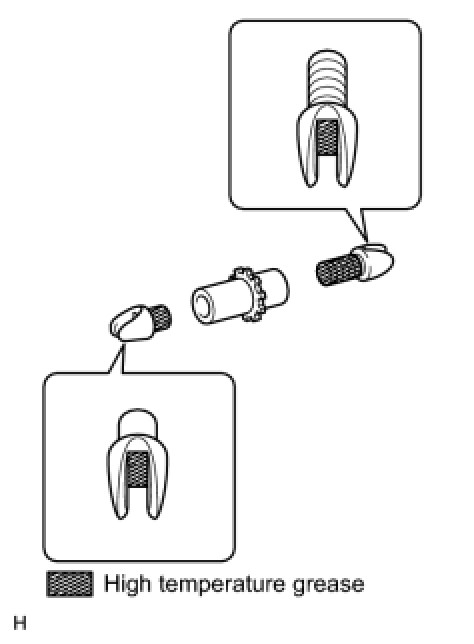

(a) Apply high temperature grease to the parts of the shoe adjusting screw set shown in the illustration.





(b) Install the shoe adjusting screw set.

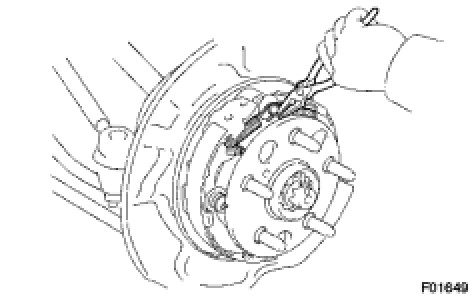

(c) Using needle-nose pliers, install the tension spring.

7. INSTALL PARKING BRAKE SHOE STRUT LH

(a) Apply high temperature grease to the contact surfaces of the strut and shoes.

(b) Install the strut.

(c) Using needle-nose pliers, install the 2 shoe return springs.





8. CHECK PARKING BRAKE INSTALLATION

(a) Check that each part is installed properly.





NOTICE:
There should be no oil or grease adhering to the friction surfaces of the shoe lining and disc.

9. INSTALL REAR DISC

(a) Align the matchmarks and install the disc.

HINT
When replacing the disc with a new one, select the installation position where the disc has the smallest runout.

10. ADJUST PARKING BRAKE SHOE CLEARANCE

(a) Temporarily install the hub nuts.

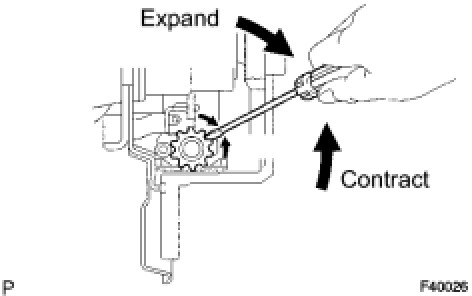

(b) Remove the hole plug, and then turn the shoe adjuster to expand the shoe adjuster until the disc locks.





(c) Contract the shoe adjuster until the disc can rotate smoothly.

Standard:

8 notches

(d) Check that the shoe has no brake drag.

(e) Install the hole plug.

(f) Depress the parking brake pedal with a force of 147 N (15 kgf, 33 lbf).

(g) Drive the vehicle at approximately 50 km/h (31 mph) for approximately 400 m (0.25 miles).

NOTICE:
Drive the vehicle on a safe, level and dry road.

(h) Repeat the previous 2 steps 2 or 3 times.

11. CONNECT REAR DISC BRAKE CYLINDER ASSEMBLY LH Installation

12. INSTALL REAR WHEEL

(a) Install the wheel with the 5 nuts.

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)

(b) Install the ornament with the 10 bolts.

Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

13. CHECK PARKING BRAKE PEDAL TRAVEL Adjustments

14. ADJUST PARKING BRAKE PEDAL TRAVEL Adjustments
