Disassembly

PARKING BRAKE: PARKING BRAKE ASSEMBLY: DISASSEMBLY

HINT
* Use the same procedures for the LH side and RH side.
* The procedures listed below are for the LH side.
1. REMOVE REAR WHEEL

2. DISCONNECT REAR DISC BRAKE CYLINDER ASSEMBLY LH Removal

3. REMOVE REAR DISC

(a) Place matchmarks on the disc and axle hub.

(b) Release the parking brake, and then remove the disc.





HINT

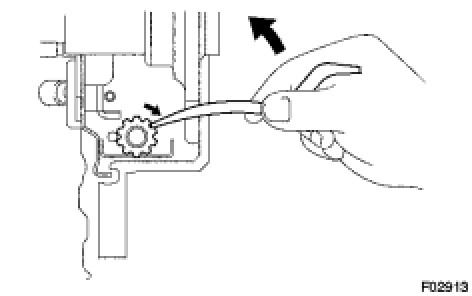

If the disc cannot be removed easily, turn the shoe adjuster until the disc turns freely.

4. REMOVE PARKING BRAKE SHOE STRUT LH

(a) Using needle-nose pliers, remove the 2 shoe return springs.





(b) Remove the strut.

5. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET

(a) Using needle-nose pliers, remove the tension spring.

(b) Remove the shoe adjusting screw set.

6. REMOVE NO. 1 PARKING BRAKE SHOE ASSEMBLY LH

(a) Slide the shoe to remove the 2 cups, shoe hold-down spring, pin and shoe.





7. REMOVE NO. 2 PARKING BRAKE SHOE ASSEMBLY LH

(a) Slide the shoe to remove the 2 cups, shoe hold-down spring, pin and shoe.





(b) Disconnect the No. 3 parking brake cable from the parking brake shoe lever.

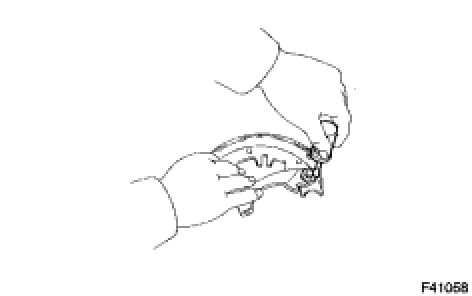

8. REMOVE PARKING BRAKE SHOE LEVER LH

(a) Using a screwdriver, remove the C-washer and shim.





(b) Remove the lever.
