Home >> Lexus >> 2010 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Service and Repair >> Removal and Replacement >> Rear Brake >> Components

Components

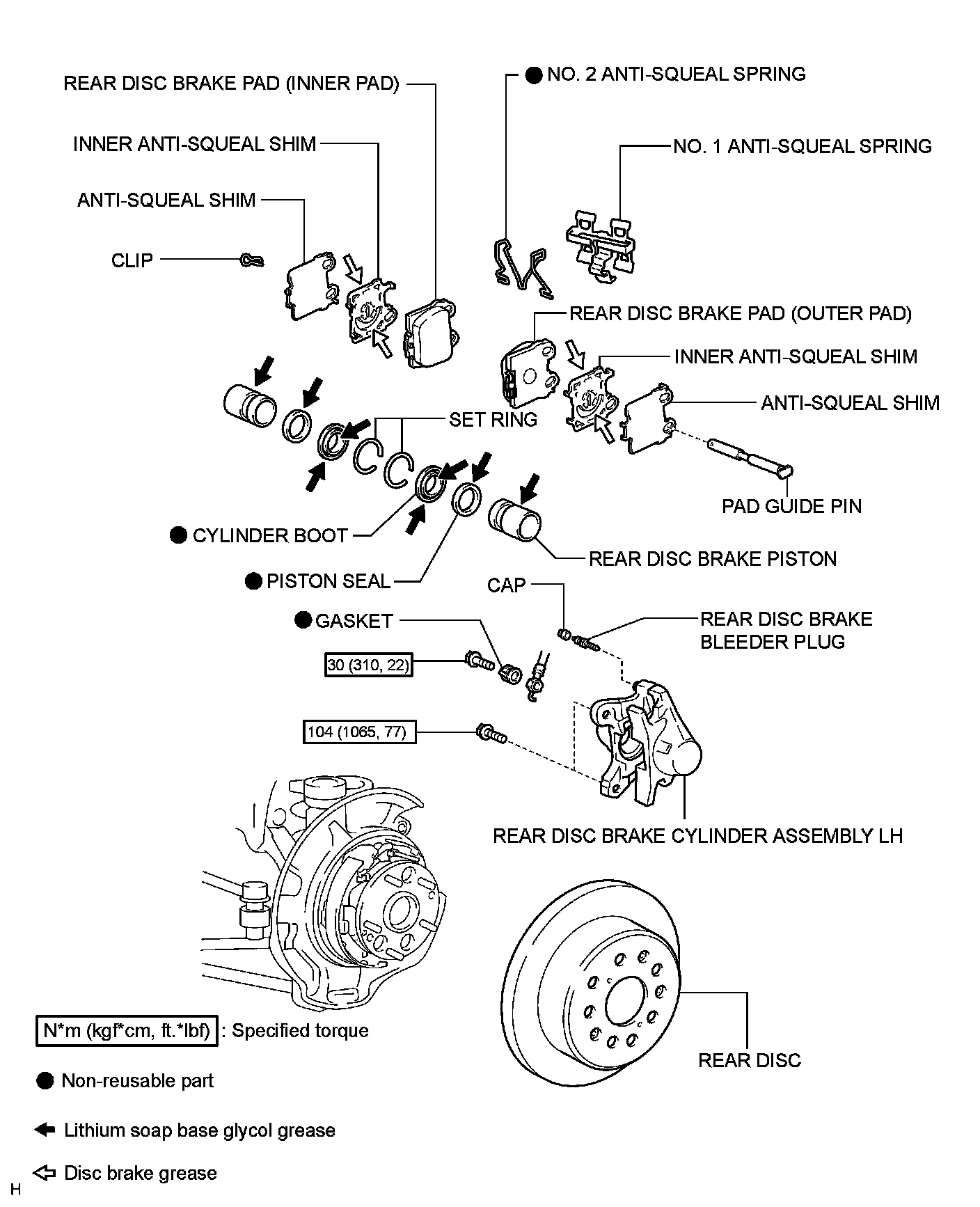

BRAKE: REAR BRAKE: COMPONENTS
