Pinout Values and Diagnostic Parameters

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: TERMINALS OF ECU

1. CHECK SKID CONTROL ECU

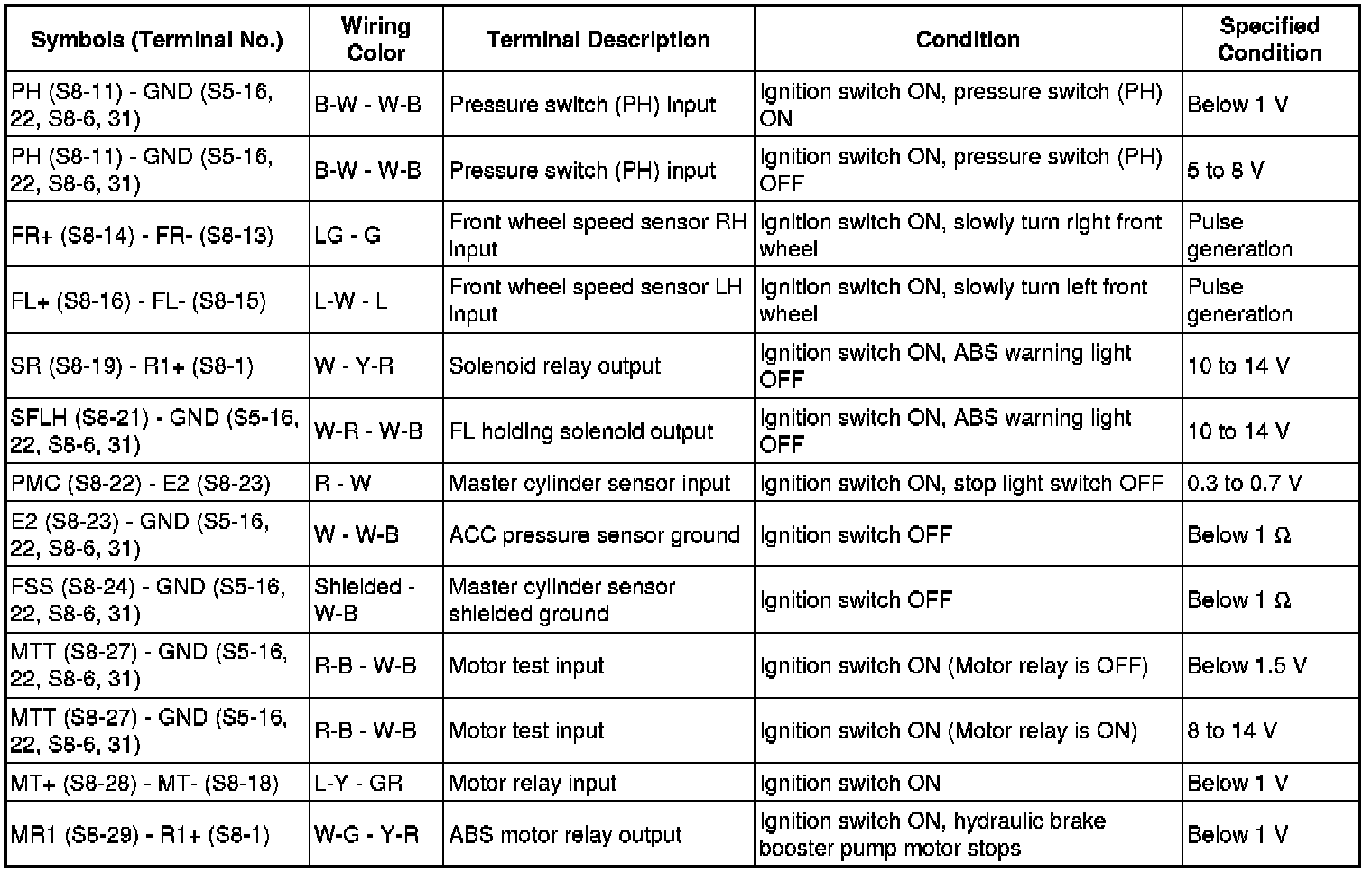

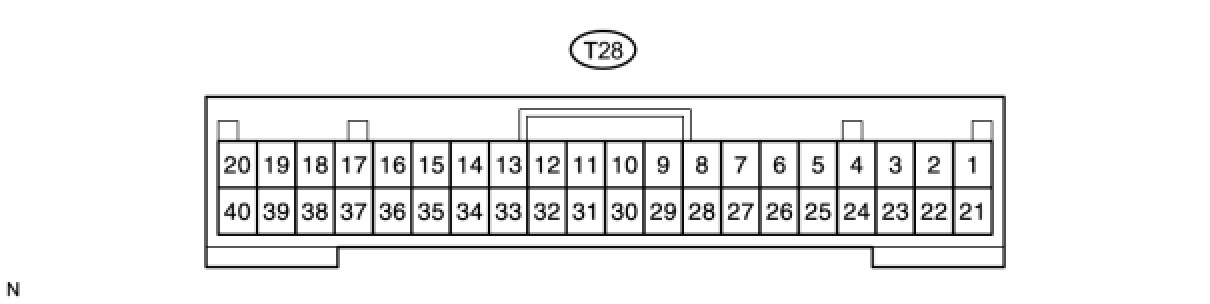

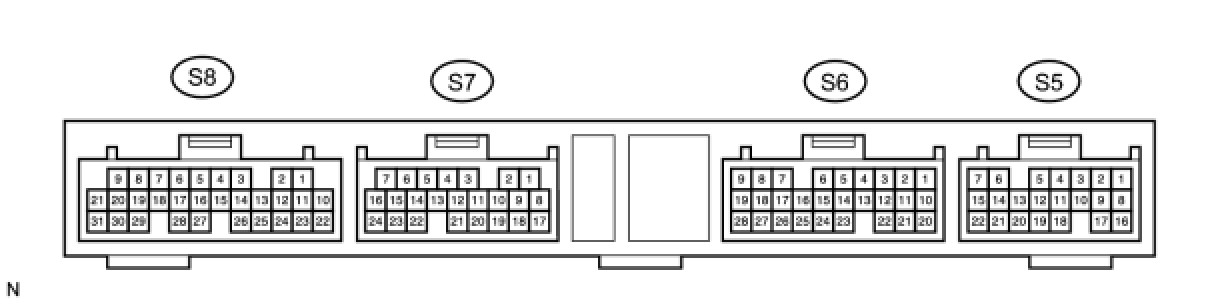

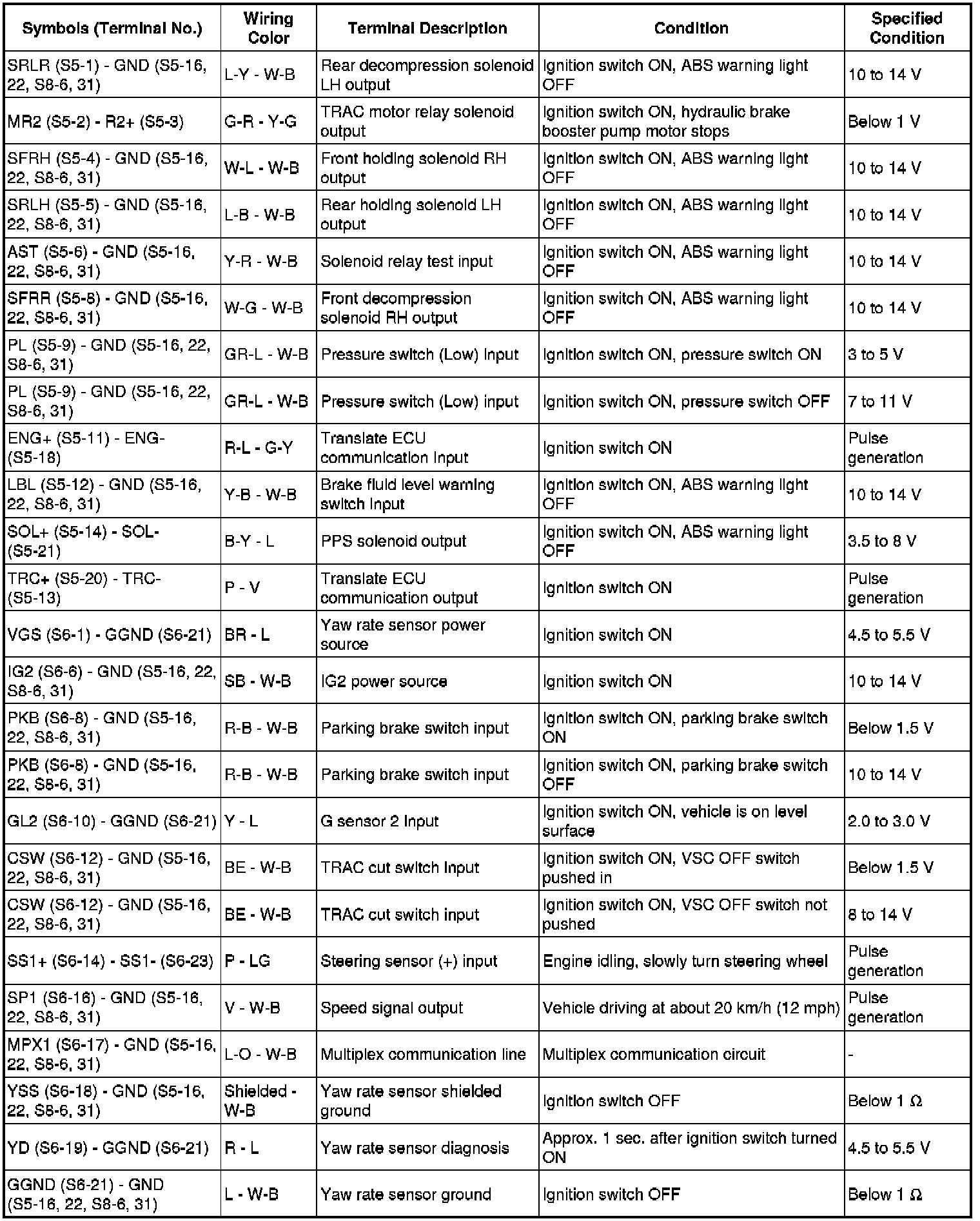

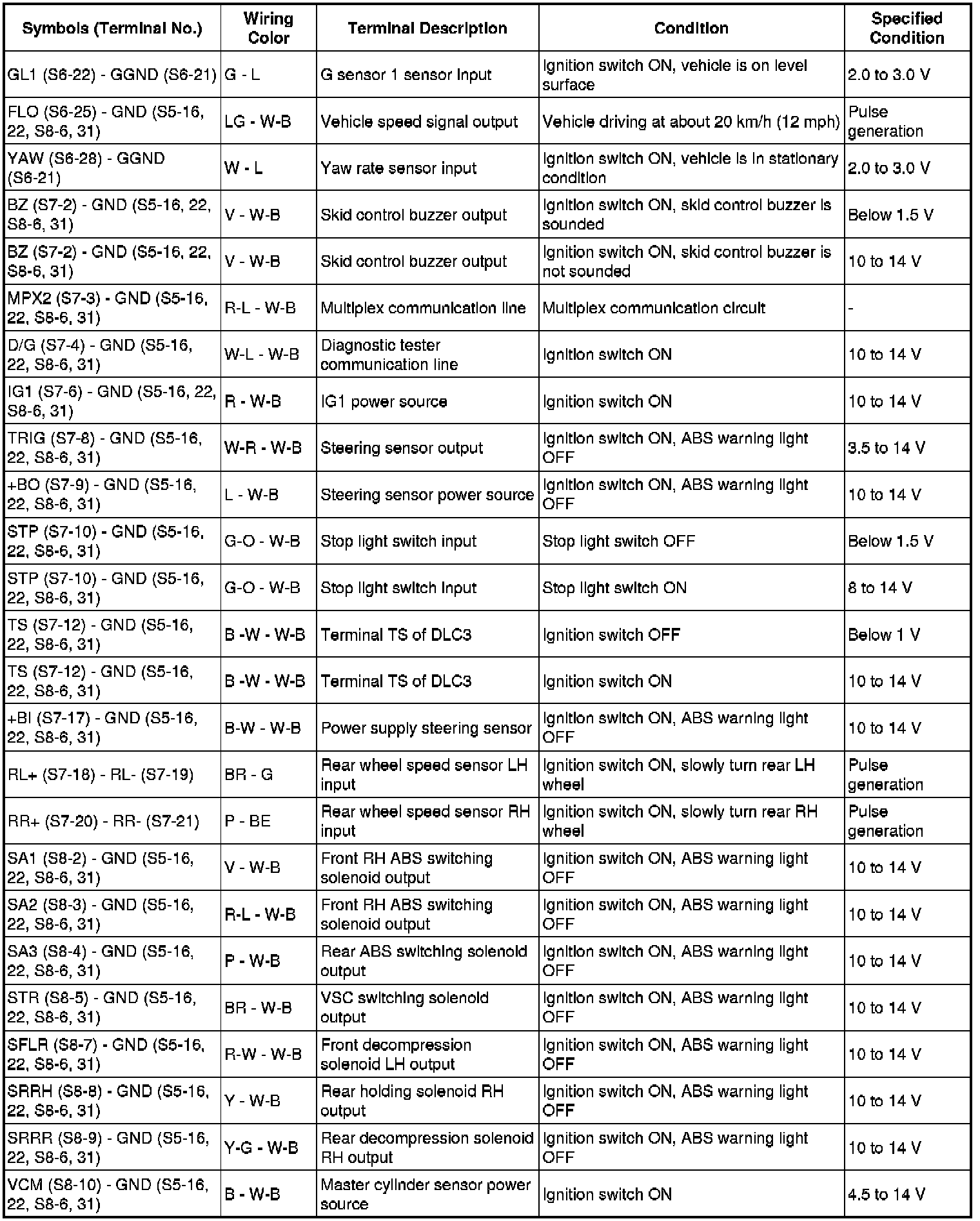

(a) Measure the voltage and resistance of the connectors.













* If the result is not as specified, the ECU may be malfunctioning.

2. CHECK TRANSLATE ECU

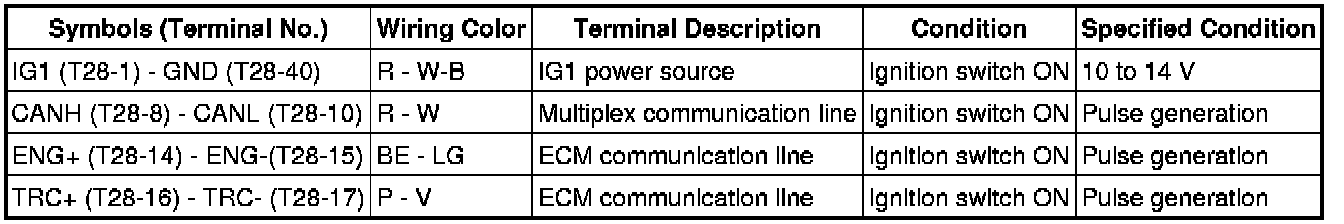

(a) Measure the voltage of the connector.





* If the result is not as specified, the ECU may be malfunctioning.
