Fail-Safe Chart

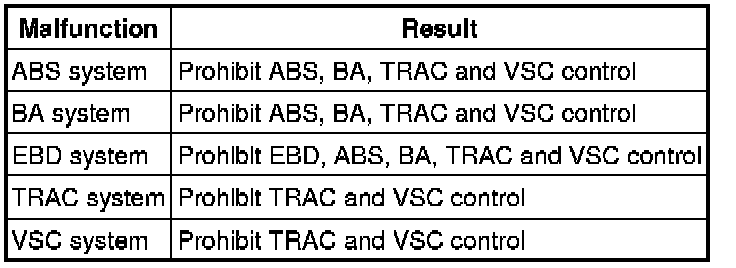

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: FAIL-SAFE CHART

1. FAIL-SAFE OPERATION





HINT
A malfunction in either the ABS or BA system will result in an identical fail-safe operation, with ABS, BA, EBD, TRAC and VSC system control prohibited. If a control is prohibited due to a malfunction during its operation, the control will be cut off gradually so that vehicle stability will not change suddenly.
