TS and CG Terminal Circuit

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: TS and CG Terminal Circuit
- TS and CG Terminal Circuit

DESCRIPTION

The sensor check circuit detects abnormalities in the speed sensor signal which cannot be detected by the DTC check.

Connecting terminals TS and CG of the DLC3 starts the check.

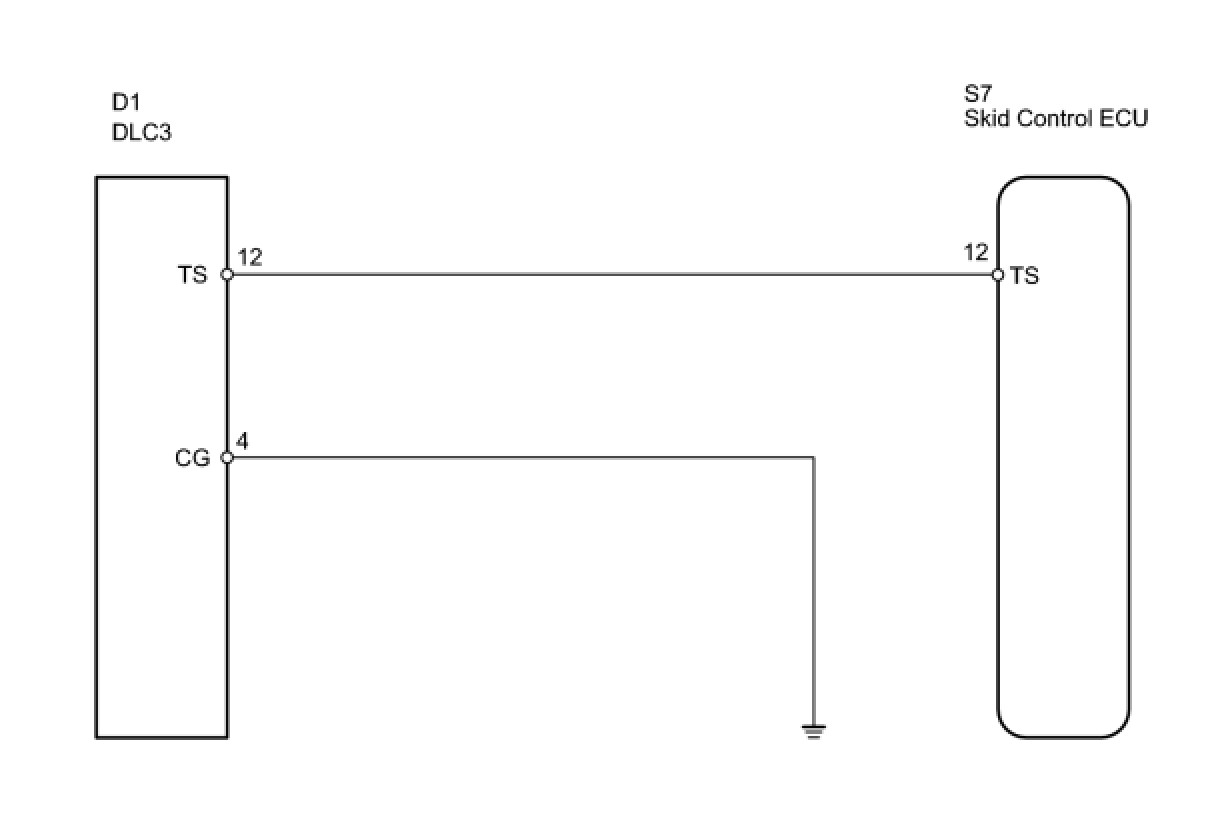

WIRING DIAGRAM





INSEPCTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (DLC3 - SKID CONTROL ECU AND BODY GROUND)





(a) Disconnect the S7 ECU connector.

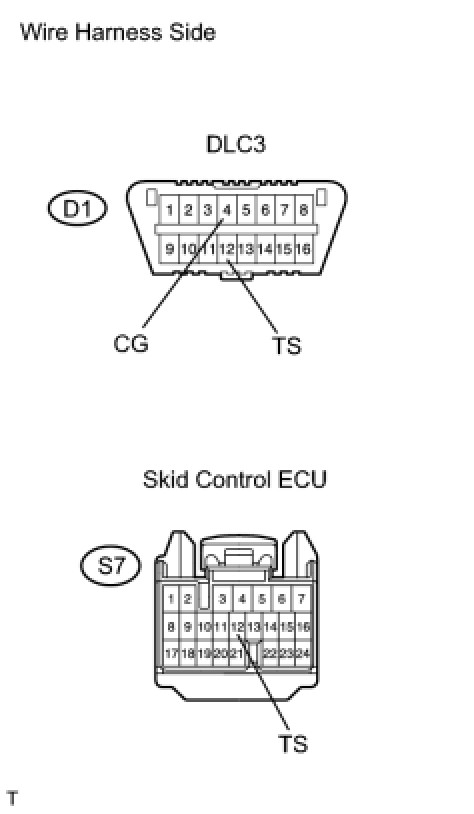

(b) Measure the resistance of the wire harness side connectors.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR

OK -- REPLACE SKID CONTROL ECU
