TC and CG Terminal Circuit

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: TC and CG Terminal Circuit
- TC and CG Terminal Circuit

DESCRIPTION

Connecting terminals TC and CG of the DLC3 causes the ECU to display the DTC by flashing the ABS warning light.

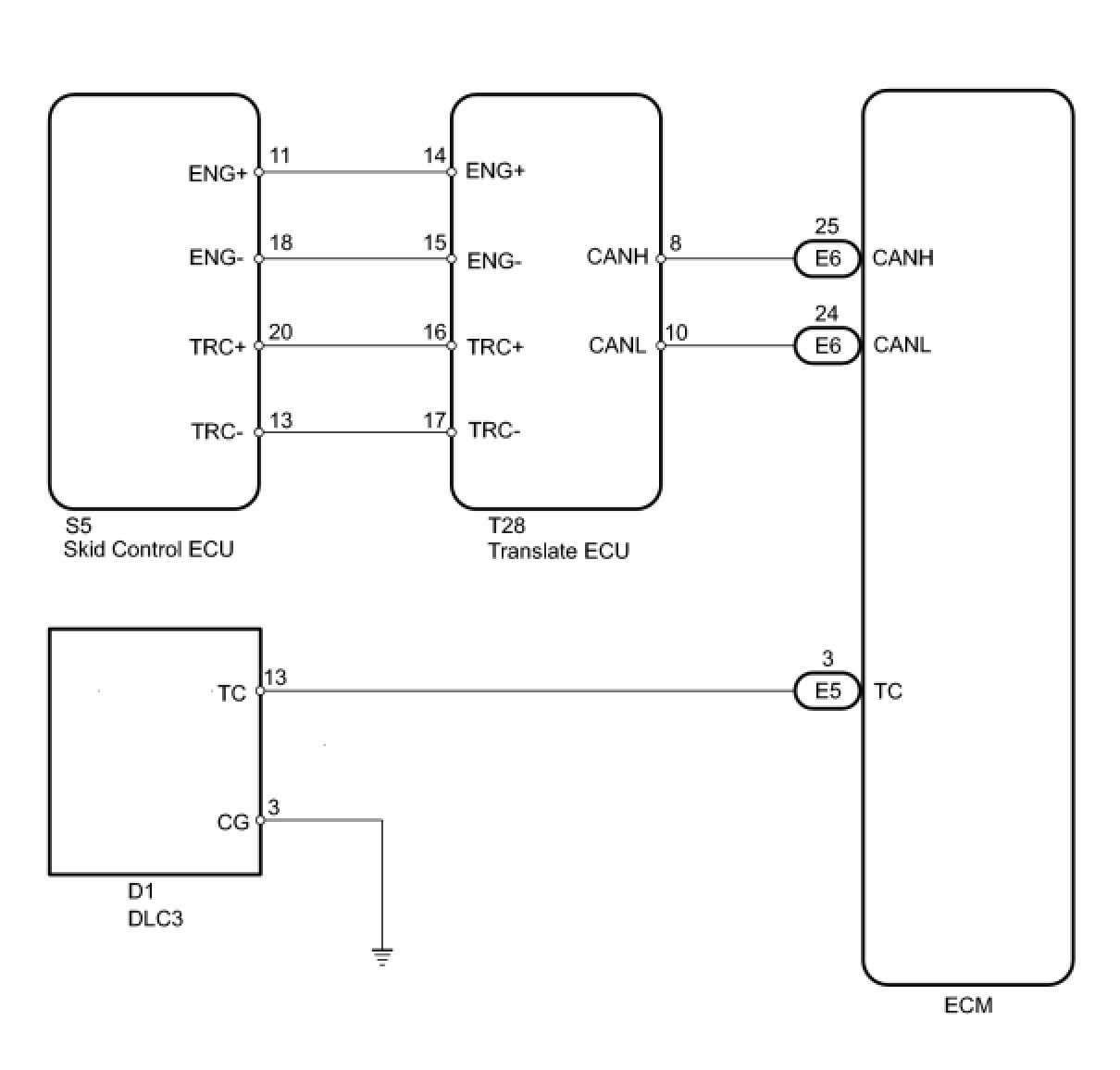

WIRING DIAGRAM





INSEPCTION PROCEDURE

PROCEDURE

1. CHECK DLC3 (TC VOLTAGE)





(a) Turn the ignition switch ON.

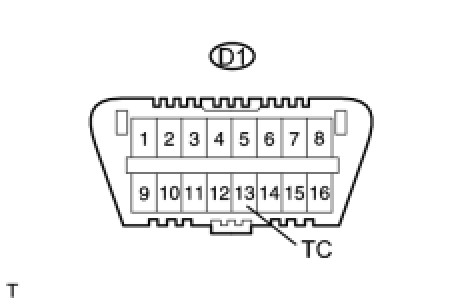

(b) Measure the voltage of the DLC3.

Standard voltage:





NG -- CHECK WIRE HARNESS (SKID CONTROL ECU - ECM)
OK -- Continue to next step.

2. CHECK CAN COMMUNICATION SYSTEM

(a) Check the DTC Reading and Clearing Diagnostic Trouble Codes.

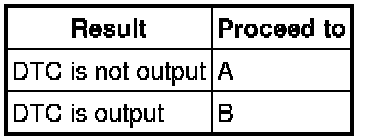

Result





B -- REPAIR CIRCUITS INDICATED BY OUTPUT DTCS

A -- REPLACE SKID CONTROL ECU

3. CHECK WIRE HARNESS (SKID CONTROL ECU - ECM)





(a) Disconnect the E6 ECM connector.

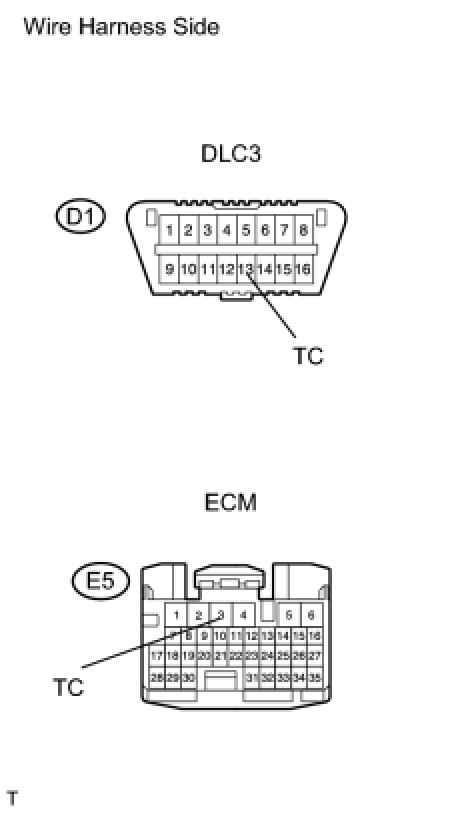

(b) Measure the resistance of the wire harness side connectors.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.

4. CHECK WIRE HARNESS (DLC3 - BODY GROUND)

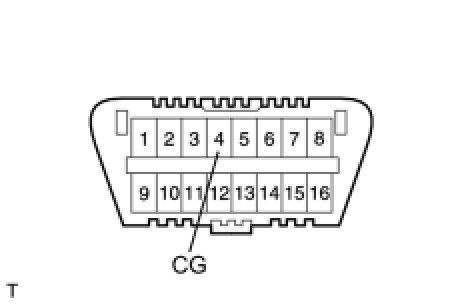

(a) Measure the resistance of the wire harness side connector.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.

5. CHECK CAN COMMUNICATION SYSTEM

(a) Check the DTC Reading and Clearing Diagnostic Trouble Codes.

Result





B -- REPAIR CIRCUITS INDICATED BY OUTPUT DTCS

A -- REPLACE SKID CONTROL ECU
