Unlock Warning Switch





DOOR LOCK: UNLOCK WARNING SWITCH: INSPECTION

1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY

(a) Measure the resistance of the switch.

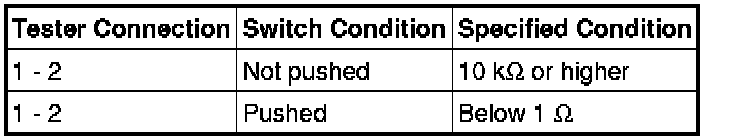

Standard resistance:





(a) If the result is not as specified, replace the unlock warning switch assembly.
