Removal

SEAT: REAR SEAT ASSEMBLY: REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY





(a) Detach the seat cushion's 2 front hooks from the vehicle body.

NOTICE:
Follow the instructions below carefully as the cushion frame deforms easily.

(1) Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.

(2) Repeat for the other hook.

(b) Detach the seat cushion's 2 rear hooks from the seatback.

(c) Remove the seat cushion.

2. REMOVE REAR SEAT HEADREST PLATE COVER

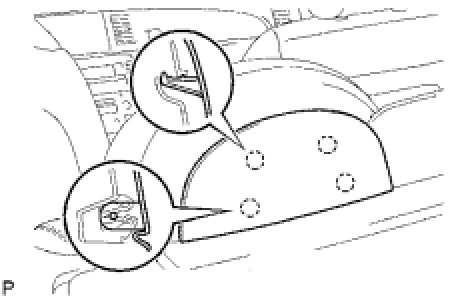

(a) Using a screwdriver, detach the 8 claws and remove the 2 plate covers.

HINT
Tape the screwdriver tip before use.

3. REMOVE WIND DEFLECTOR BOARD ASSEMBLY

(a) Remove the 4 bolts and deflector board.

4. REMOVE REAR SEAT HEADREST PLATE





(a) Using a screwdriver, detach the 4 clips and 8 claws. Then remove the 2 headrest plates.

HINT
Tape the screwdriver tip before use.

5. REMOVE REAR SEAT HEADREST ASSEMBLY





(a) Remove the 4 nuts and 2 headrests.

6. REMOVE REAR SEATBACK ASSEMBLY

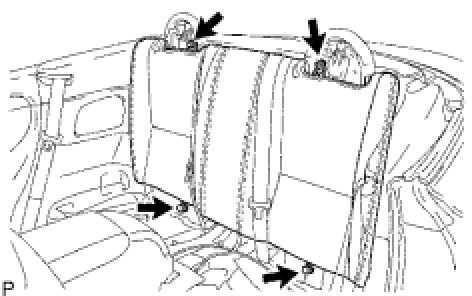

(a) Remove the 2 nuts, 2 bolts and seatback.
