Installation

SEAT: REAR SEAT ASSEMBLY: INSTALLATION

1. INSTALL REAR SEATBACK ASSEMBLY





(a) Install the seatback with the 2 nuts and 2 bolts.

Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)

2. INSTALL REAR SEAT HEADREST ASSEMBLY





(a) Install the 2 headrests with the 4 nuts.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

3. INSTALL REAR SEAT HEADREST PLATE





(a) Attach the 4 clips and 8 claws to install the 2 headrest plates.

4. INSTALL WIND DEFLECTOR BOARD ASSEMBLY

(a) Install the deflector board with the 4 bolts.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

5. INSTALL REAR SEAT HEADREST PLATE COVER





(a) Attach the 8 claws to install the 2 plate covers.

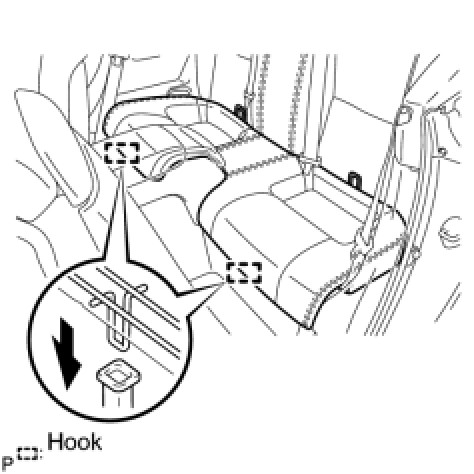

6. INSTALL REAR SEAT CUSHION ASSEMBLY





(a) Attach the seat cushion's 2 rear hooks to the seatback.

(b) Attach the seat cushion's 2 front hooks to the vehicle body.

(c) Confirm that the seat cushion is firmly installed.
