Power Seat Switch

SEAT: POWER SEAT SWITCH: INSPECTION

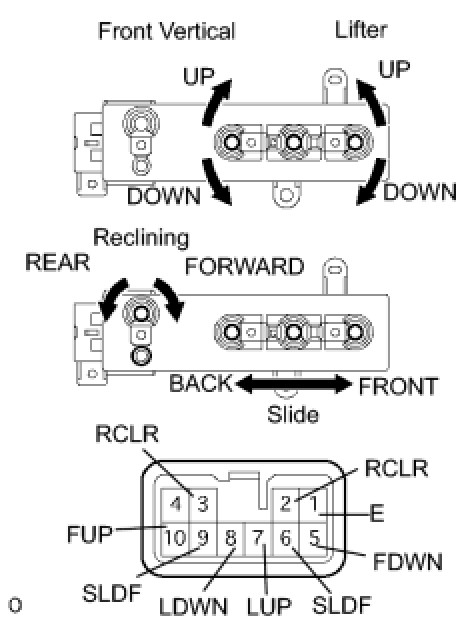

1. INSPECT FRONT POWER SEAT SWITCH LH





(a) Measure the resistance between the terminals when each switch is operated.

Standard resistance:

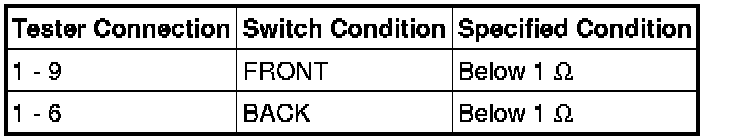

Slide switch

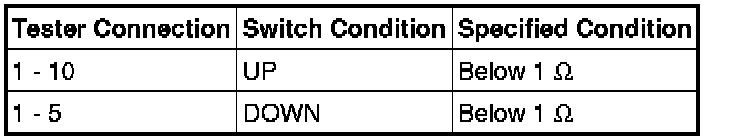

Front vertical switch





Lifter switch

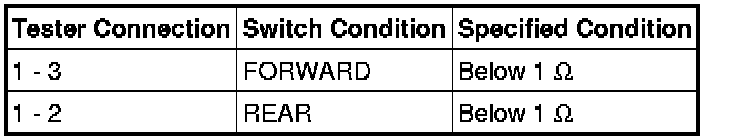

Reclining switch





* If the result is not as specified, replace the power seat switch.

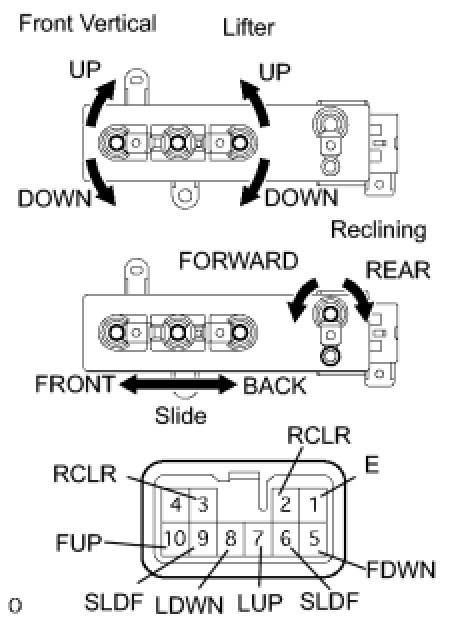

2. INSPECT FRONT POWER SEAT SWITCH RH





(a) Measure the resistance between the terminals when each switch is operated.

Standard resistance:

Slide switch





Front vertical switch





Lifter switch





Reclining switch





* If the result is not as specified, replace the power seat switch.
