Interior - Front Seat Position/Back Angle Initialization

L-SB-0107-09

August 19, 2009

Initialization of Front Seat Position & Seatback Angle

Service Category
General

Section
Pre-Delivery Service

Market
USA

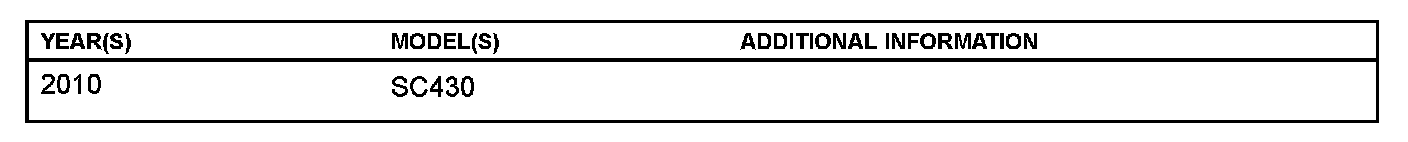

Applicability

Introduction

This bulletin explains the initialization procedure for the front seat position and the seatback angle on 2010 model year SC 430 vehicles.

To reduce parasitic current draw from the battery during transport and storage the DCC fuse (15A) has been removed at the assembly plant. As a result of the following will be inoperative:

^ Automatic seat adjustment.

^ Driving position memory of the front seat.

It is necessary to initialize the front seat position and the seatback angle after the DCC fuse has been installed during Pre-Delivery Service (PDS) or whenever the battery terminal has been disconnected and reconnected.

Please refer to (L-SB-0100-09) "DCC Fuse Installation During PDS," for more information on fuse installation.

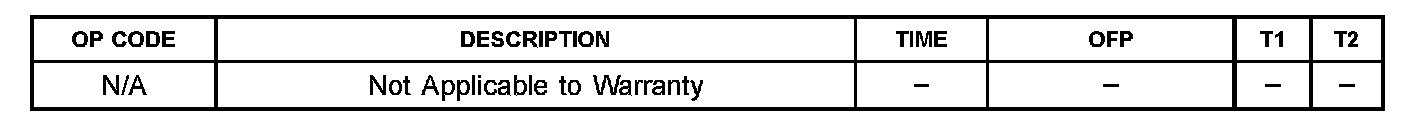

Warranty Information

Initialization Procedure

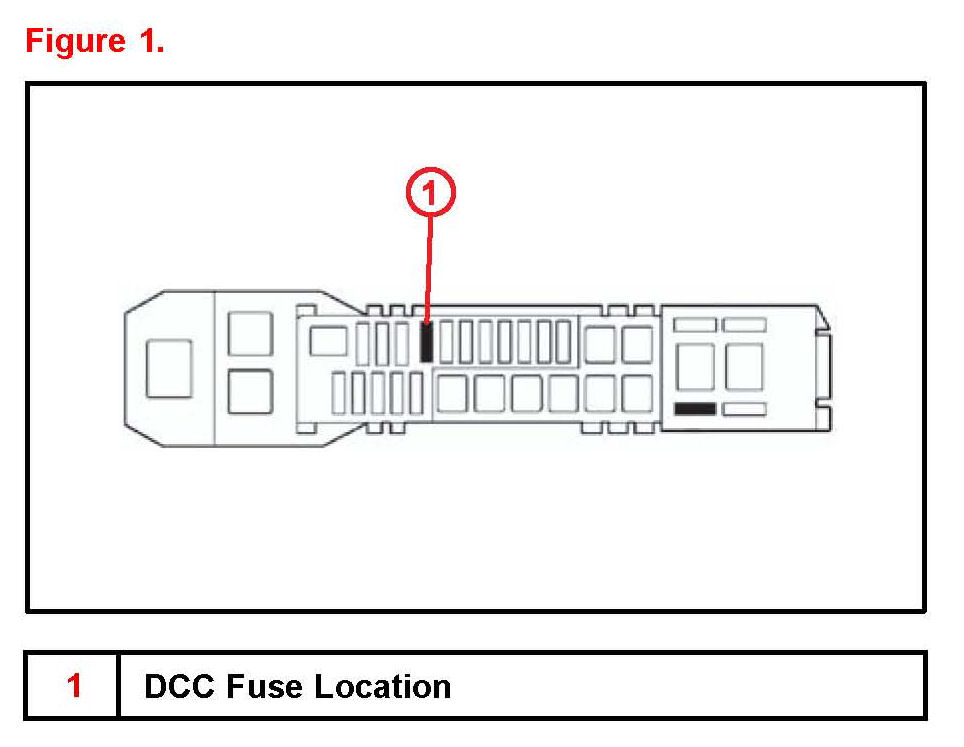

1. Make sure the DCC fuse is installed in its original position (refer to (L-SB-0100-09, "DCC Fuse Installation During PDS").

2. Move the seat position control switch forward until a beeping sound is emitted.

3. Move the seatback angle switch forward until a beeping sound is emitted.

4. Move the seat to the rearmost position recline the seatback all the way back and check that the seat will move all the way forward.

NOTE

Repeat the above procedure to initialize the passenger's seat position and seatback angle.
