Home >> Lexus >> 2010 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Locations

Seats: Locations

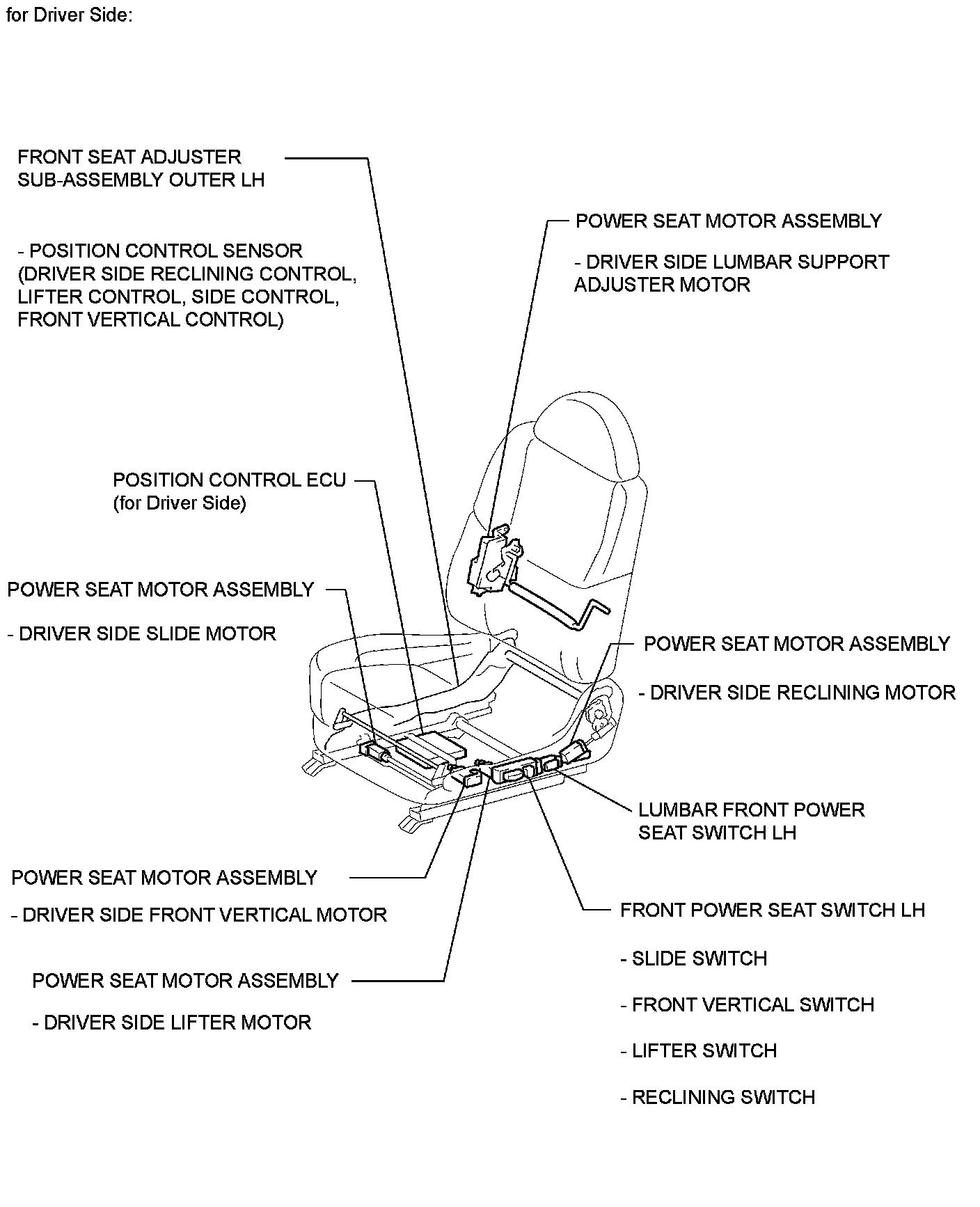

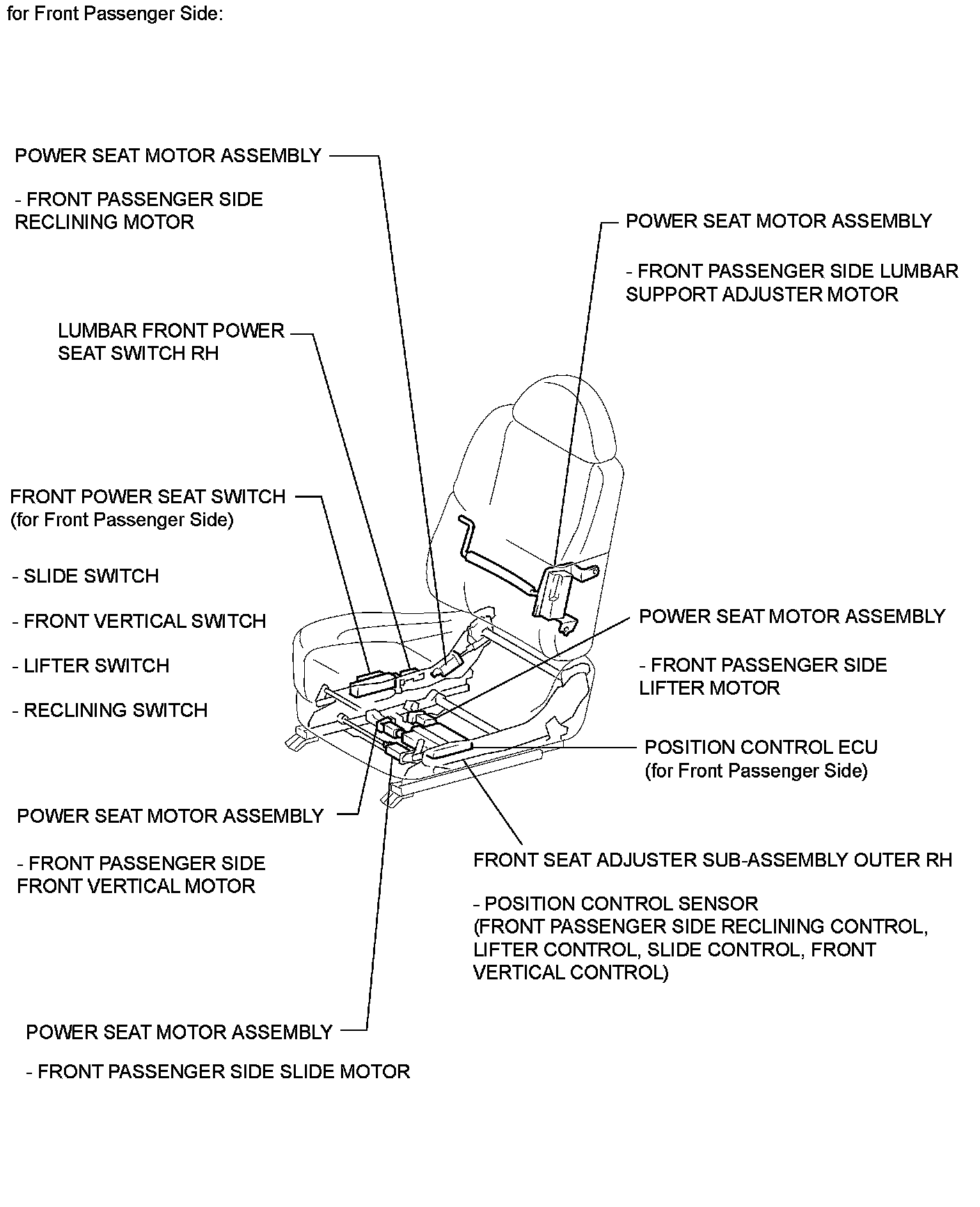

SEAT: FRONT POWER SEAT CONTROL SYSTEM: PARTS LOCATION
