Scan Tool Testing and Procedures

CONVERTIBLE: RETRACTABLE HARDTOP SYSTEM: DATA LIST / ACTIVE TEST

1. READ DATA LIST

HINT
Using the Data List displayed on the Techstream, you can read the value of the switch, sensor, actuator, etc. without parts removal. Reading the Data List as the first step in troubleshooting is one way to shorten the labor time.

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch ON.

(c) Turn the Techstream ON.

(d) Enter the following menus: All ECUs / desired system / Data List.

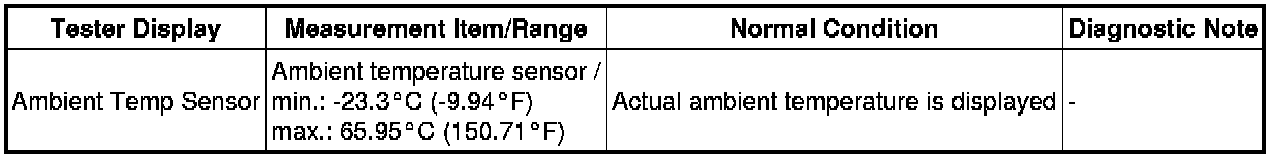

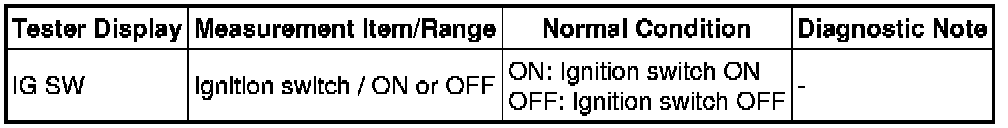

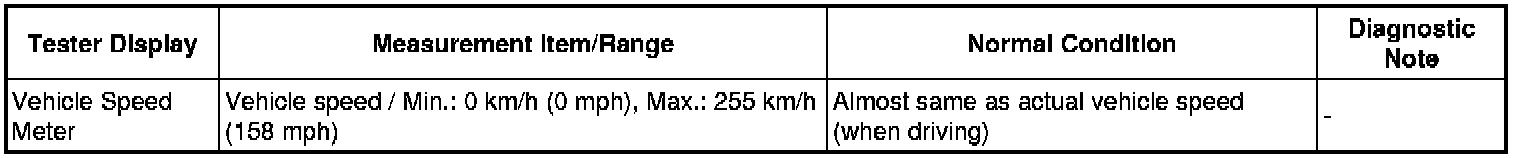

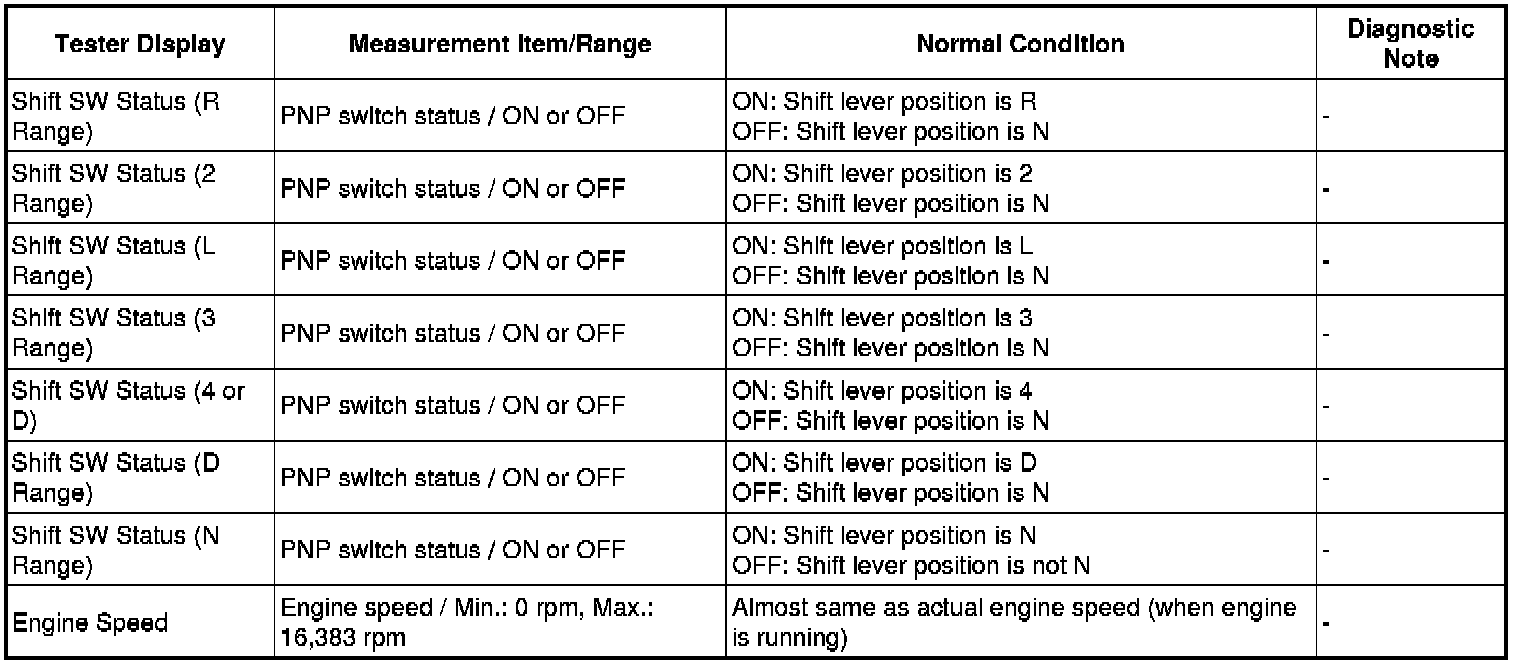

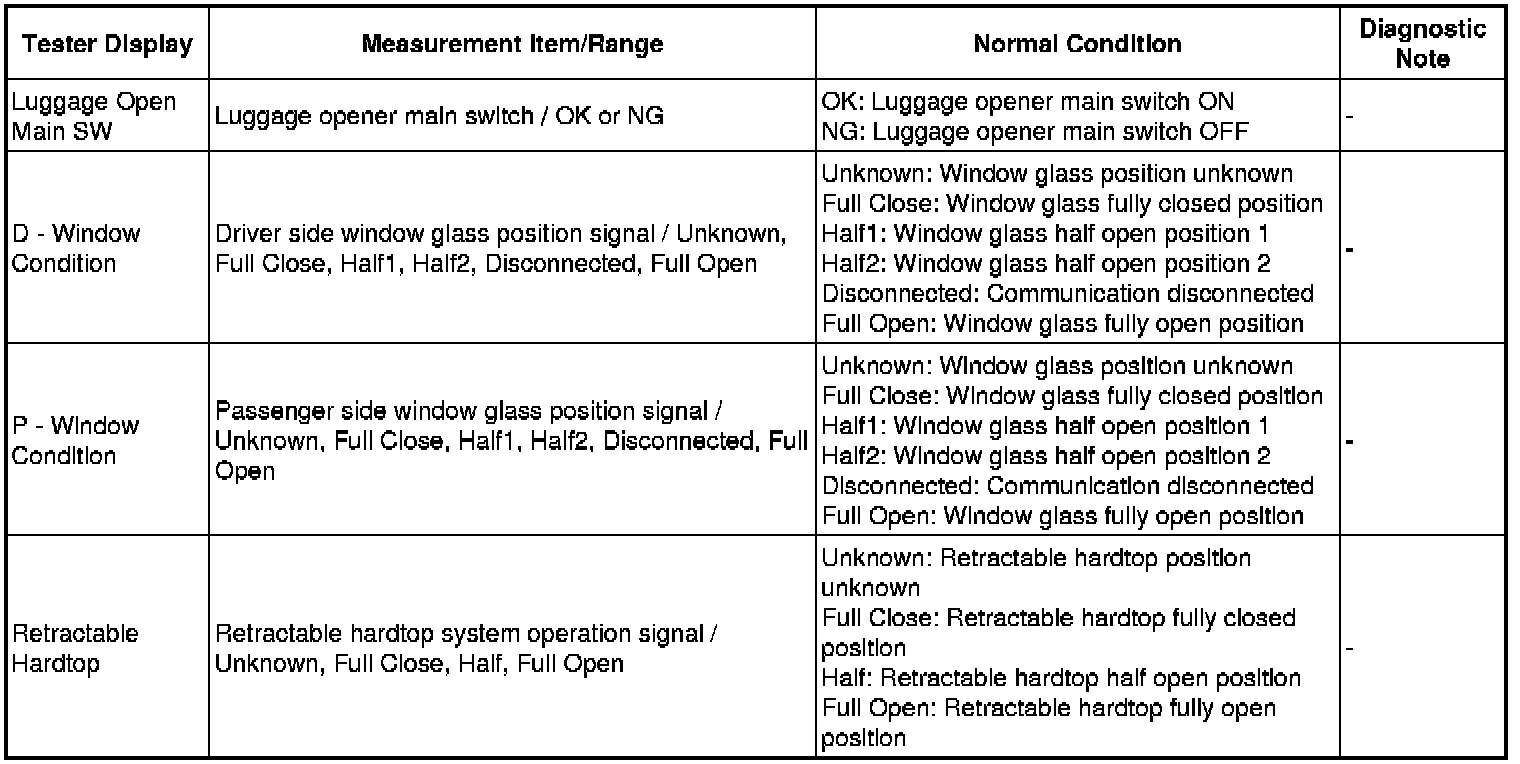

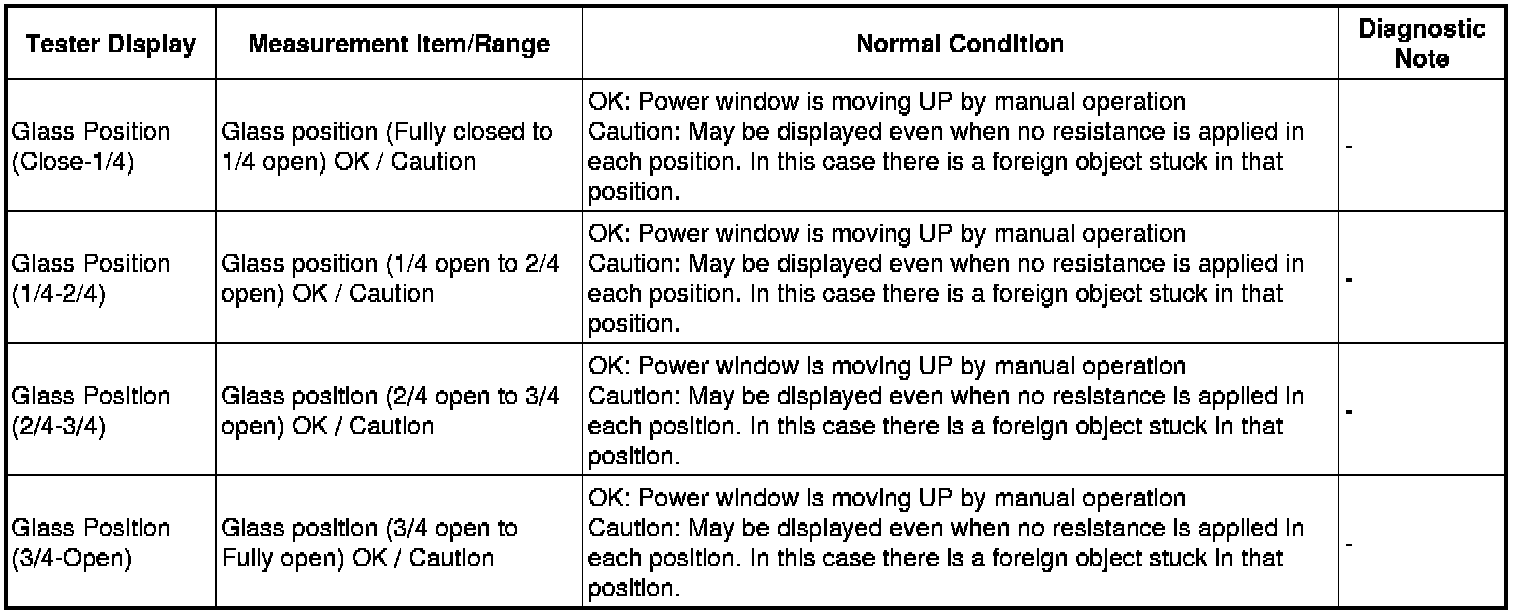

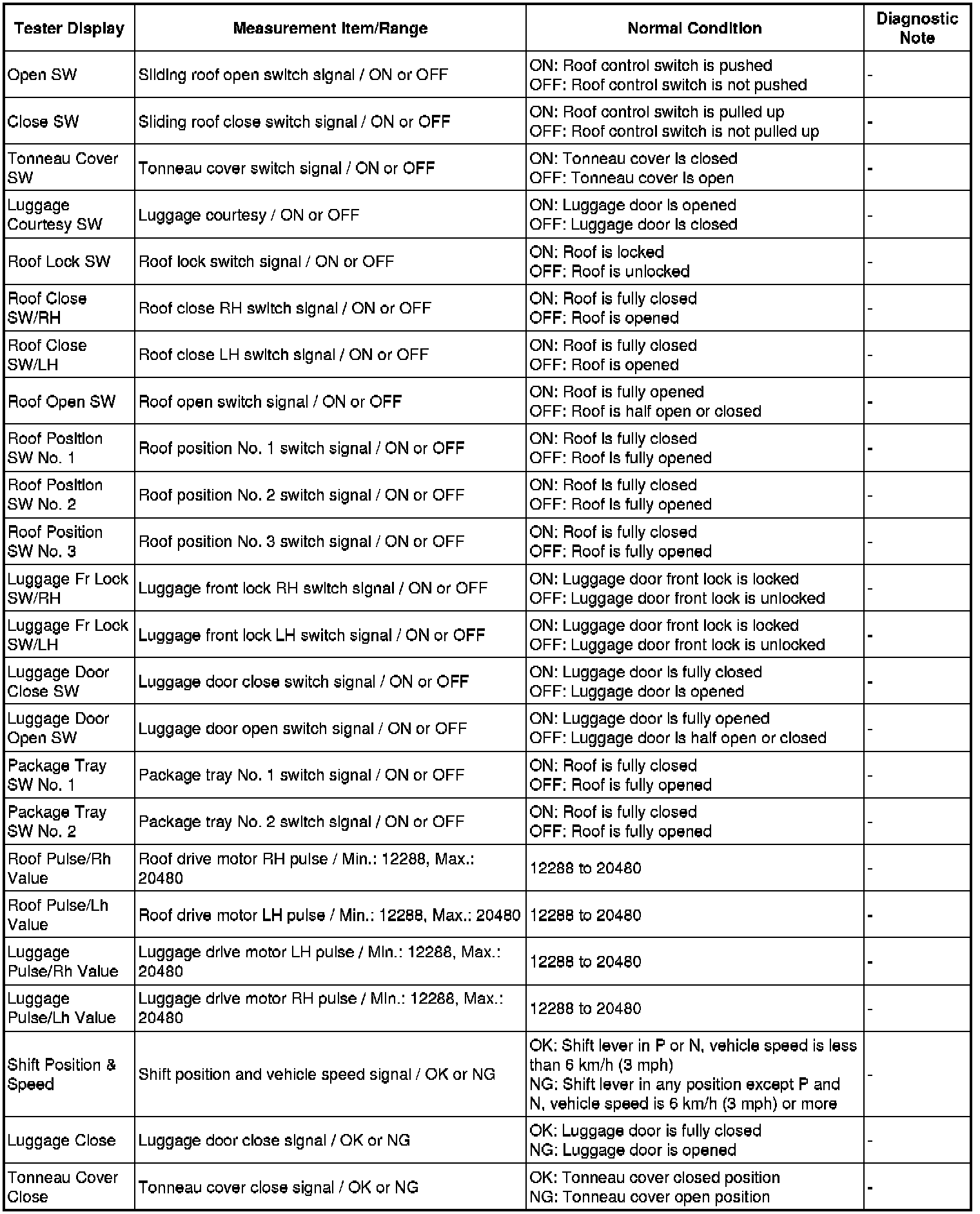

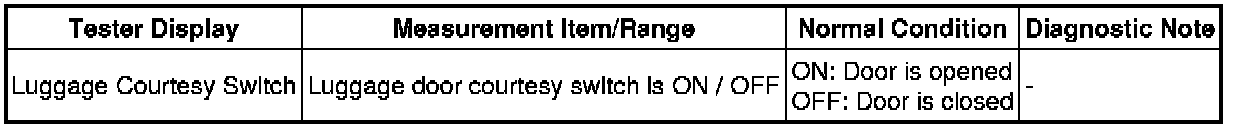

(e) According to the display on the Techstream, read the "Data List".
