Pinout Values and Diagnostic Parameters

CONVERTIBLE: RETRACTABLE HARDTOP SYSTEM: TERMINALS OF ECU

1. CHECK SLIDING ROOF CONTROL ECU

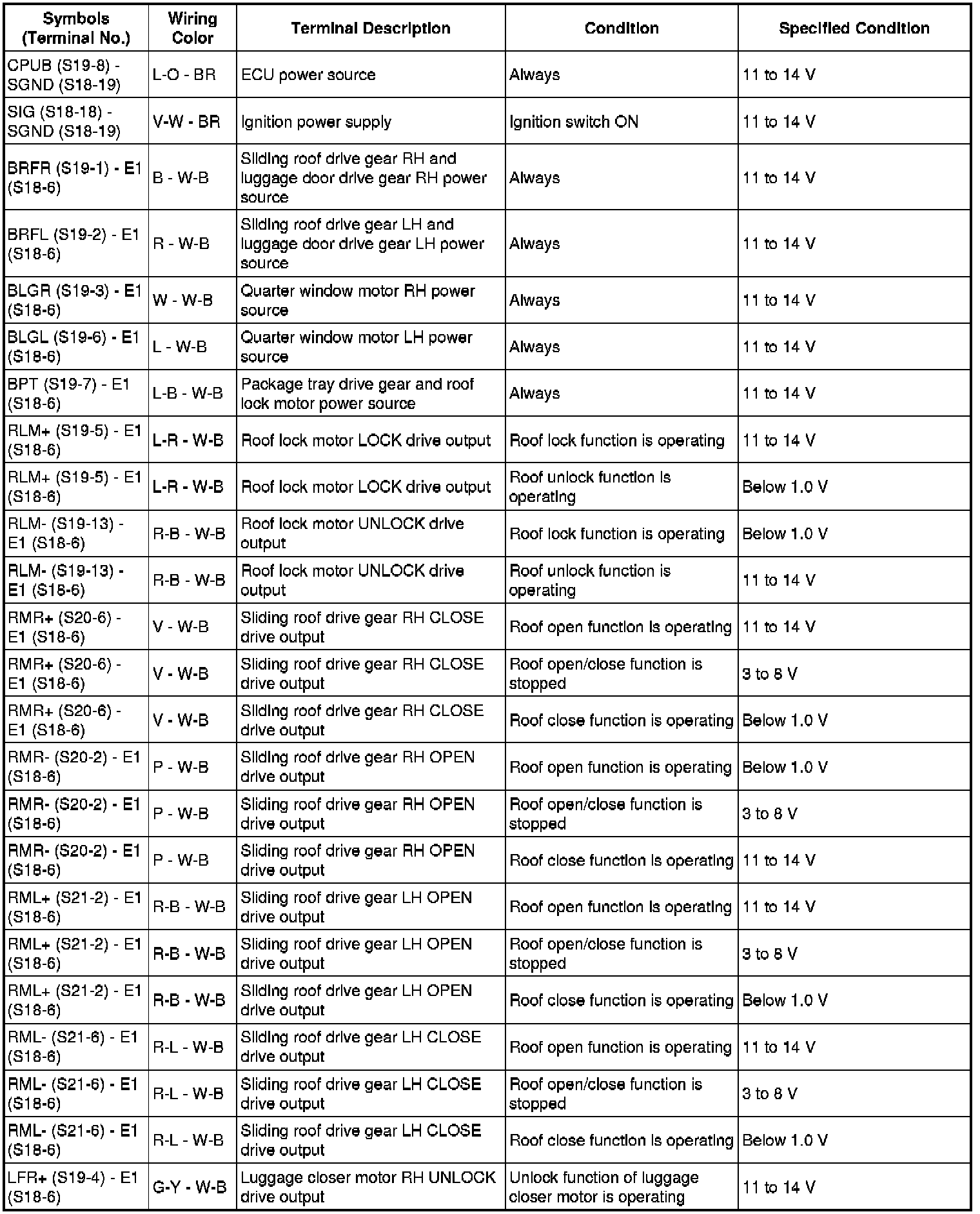

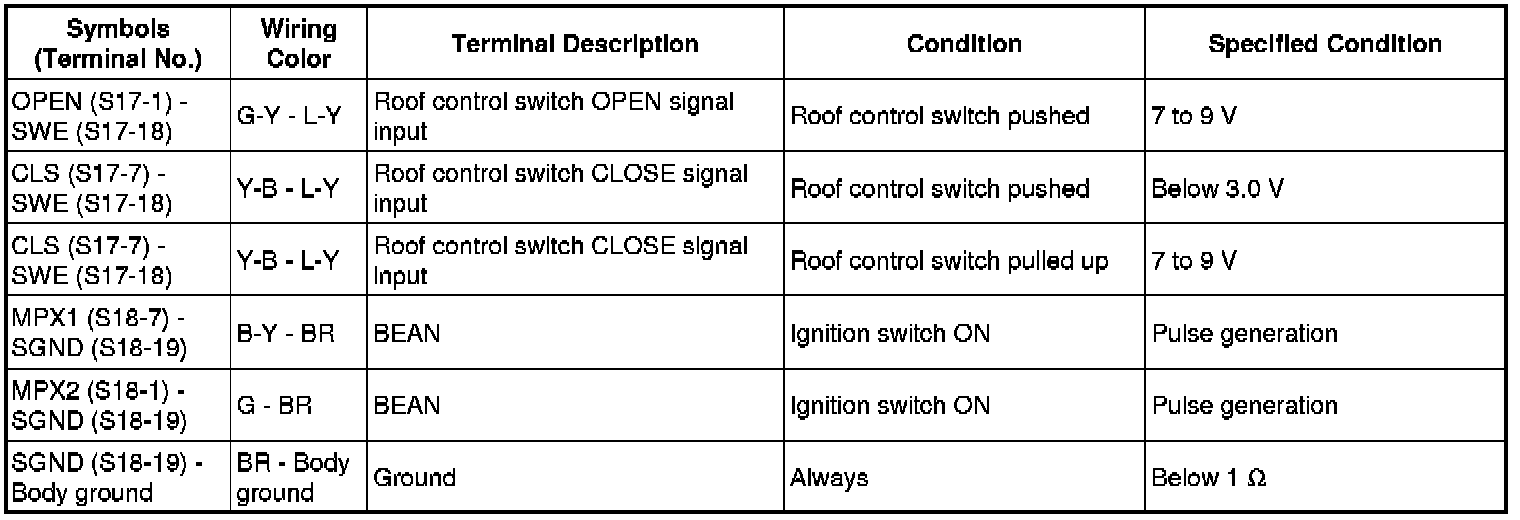

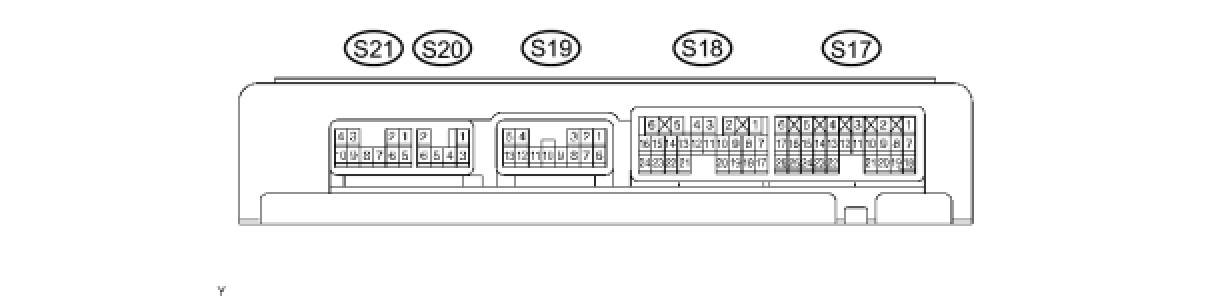

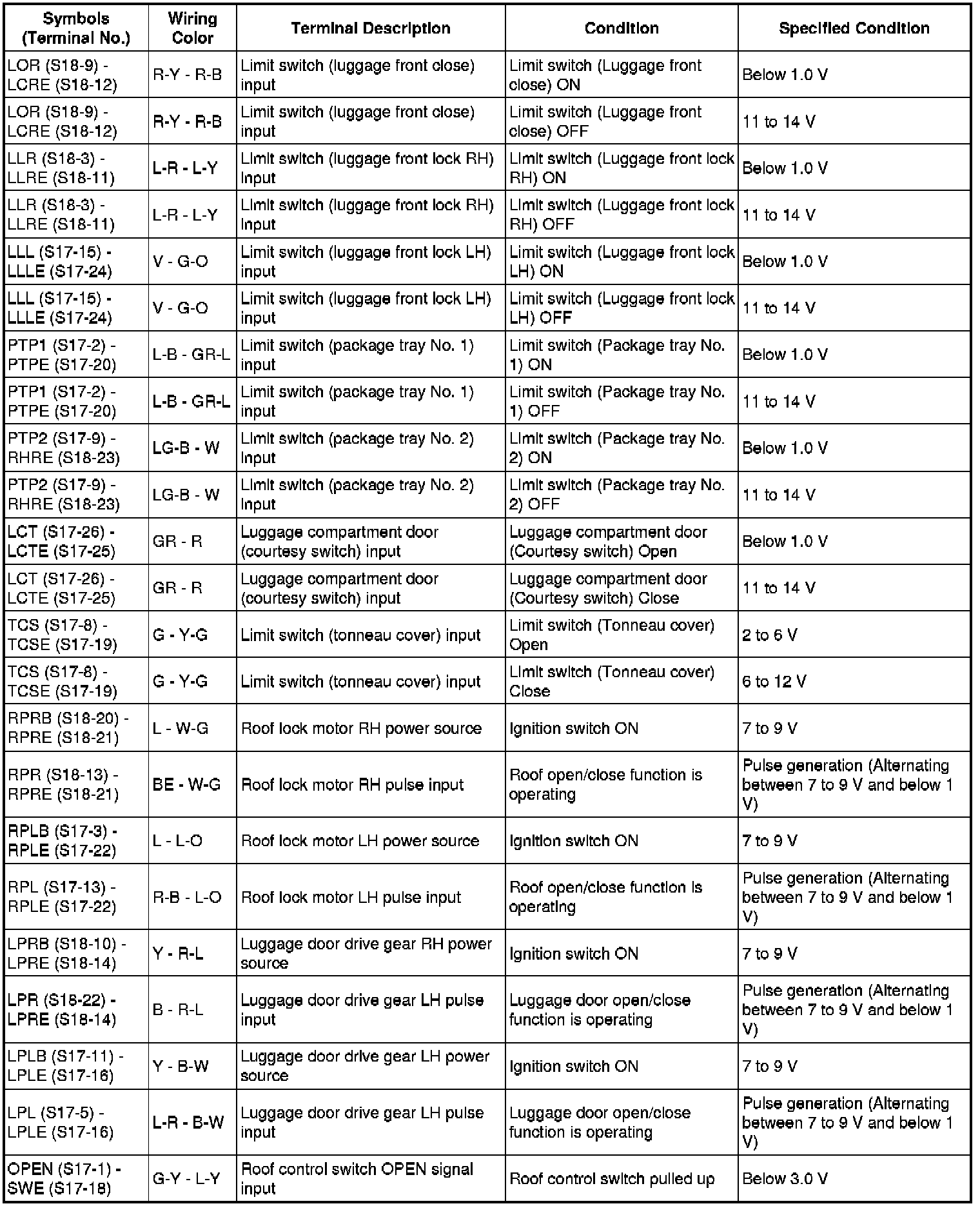

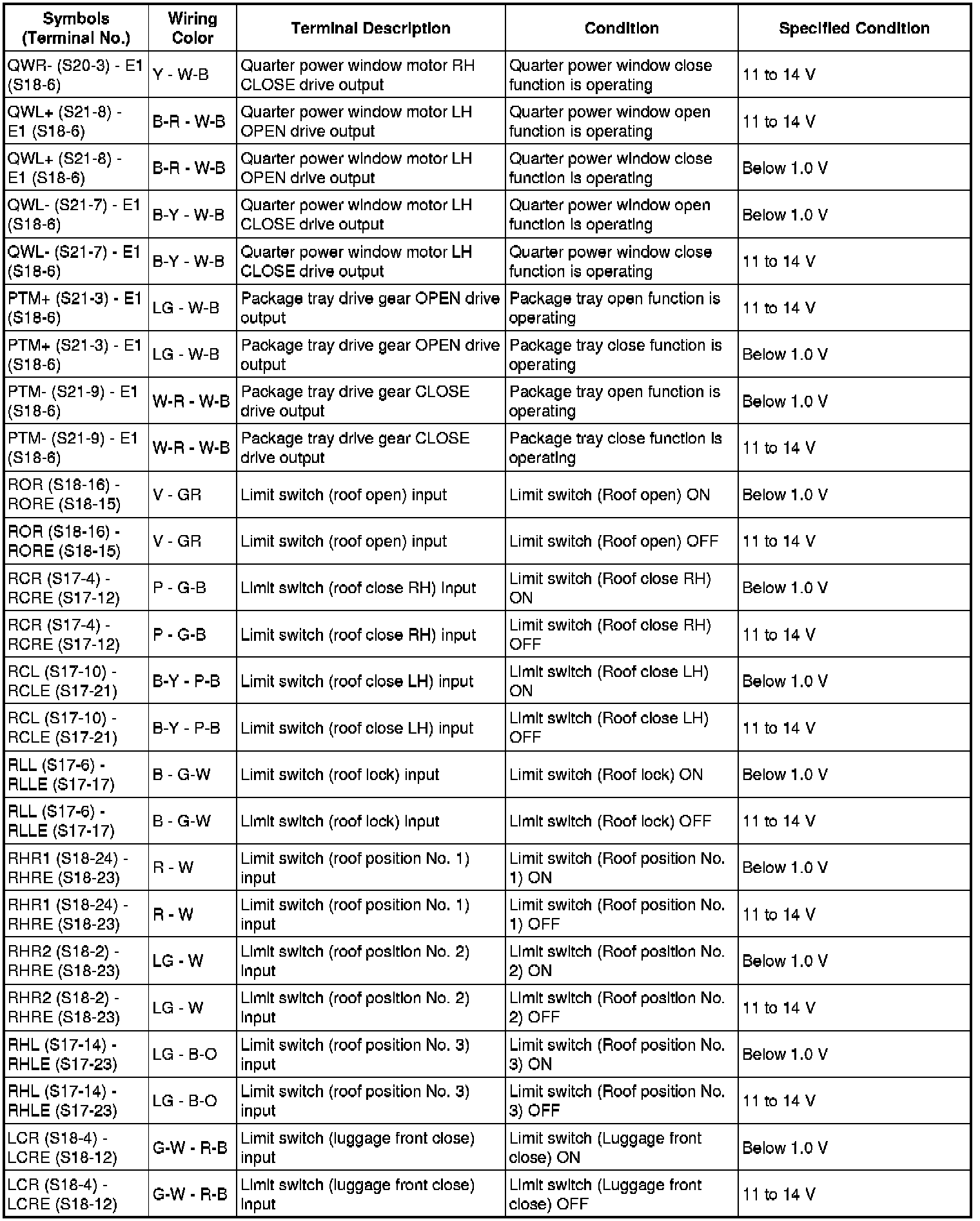

(a) Measure the voltage of the connectors.





















* If the result is not as specified, the ECU may have a malfunction.
