Electrical Diagrams

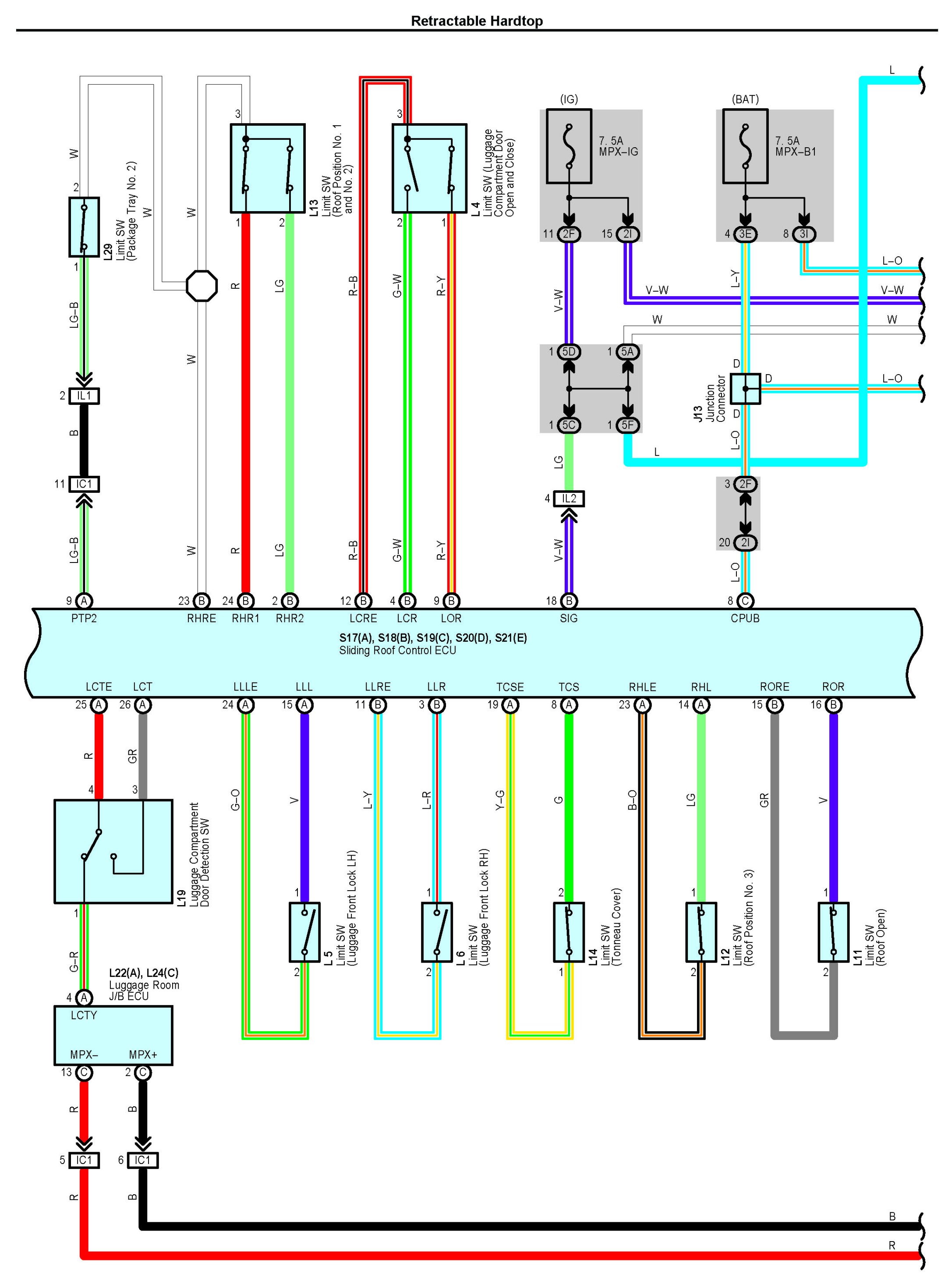

Retractable Hardtop Part 1:

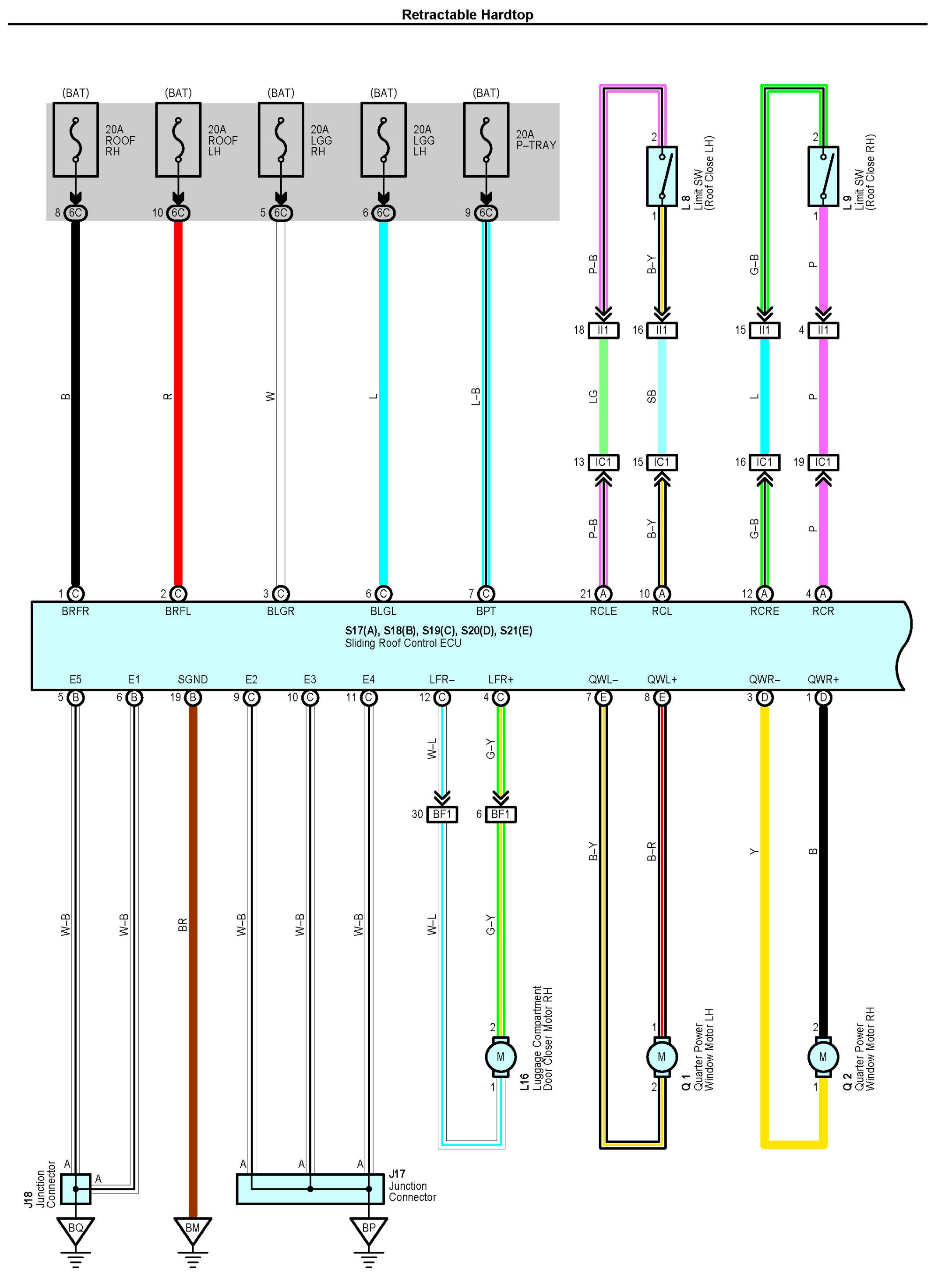

Retractable Hardtop Part 2:

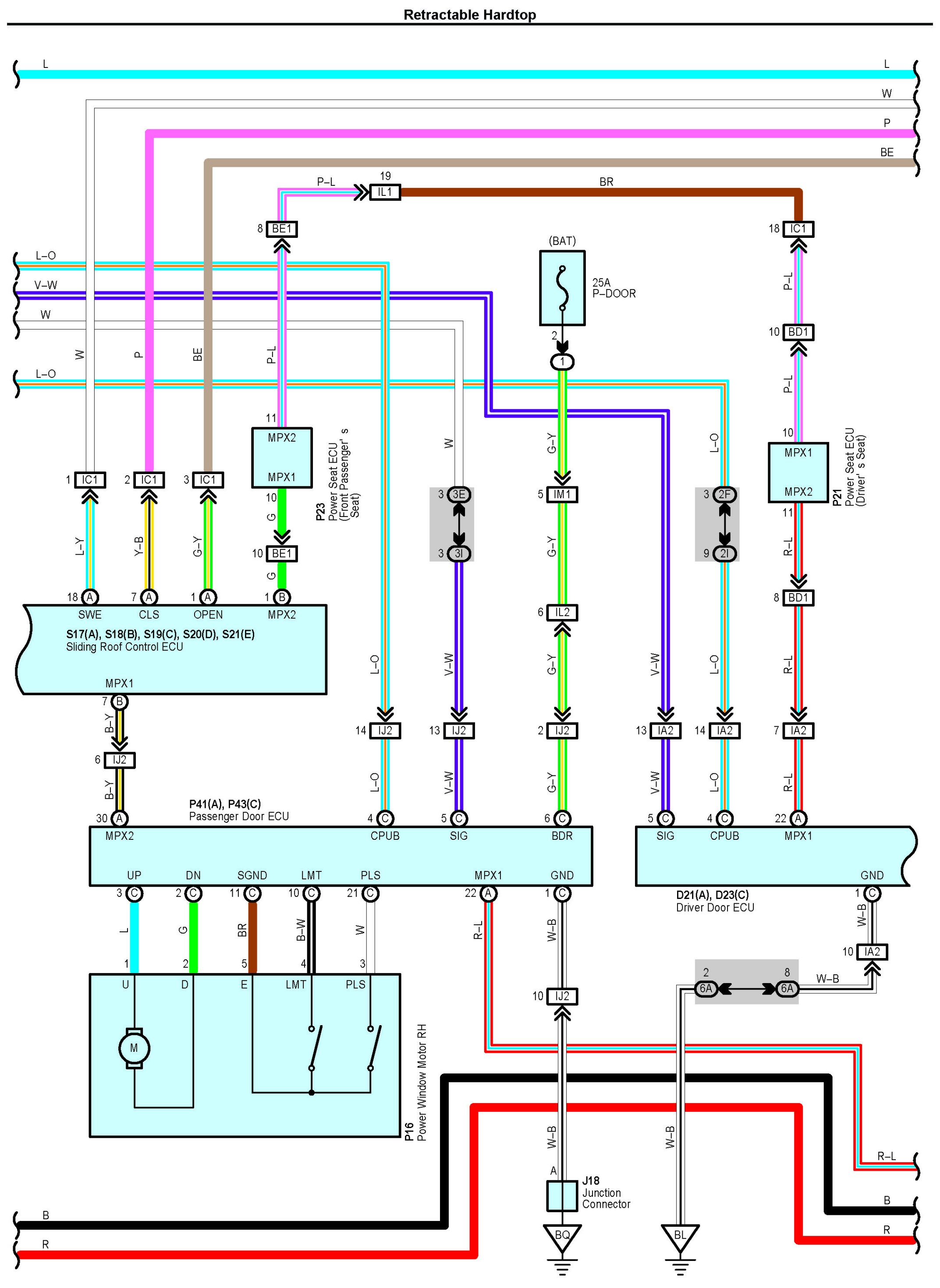

Retractable Hardtop Part 3:

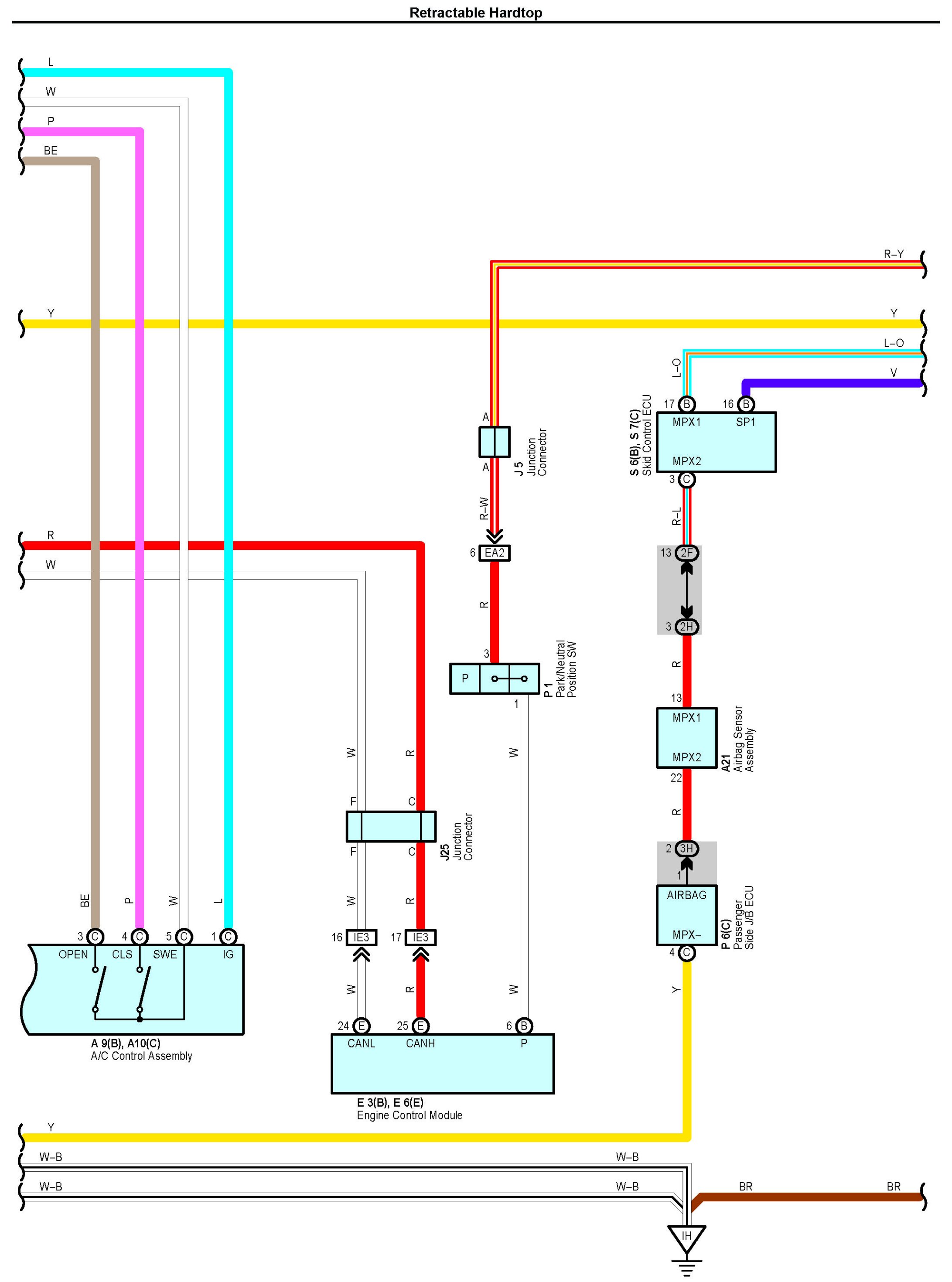

Retractable Hardtop Part 4:

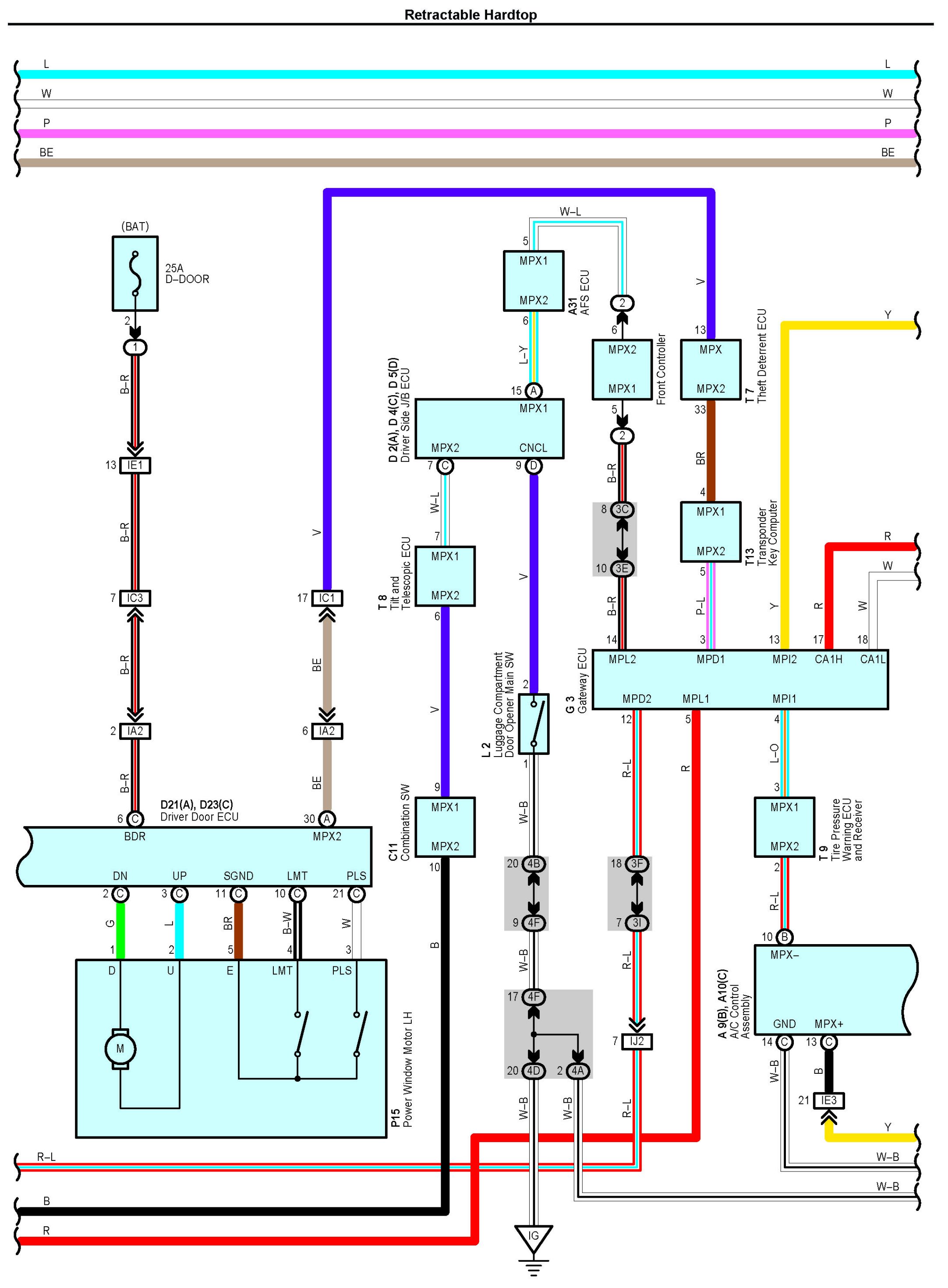

Retractable Hardtop Part 5:

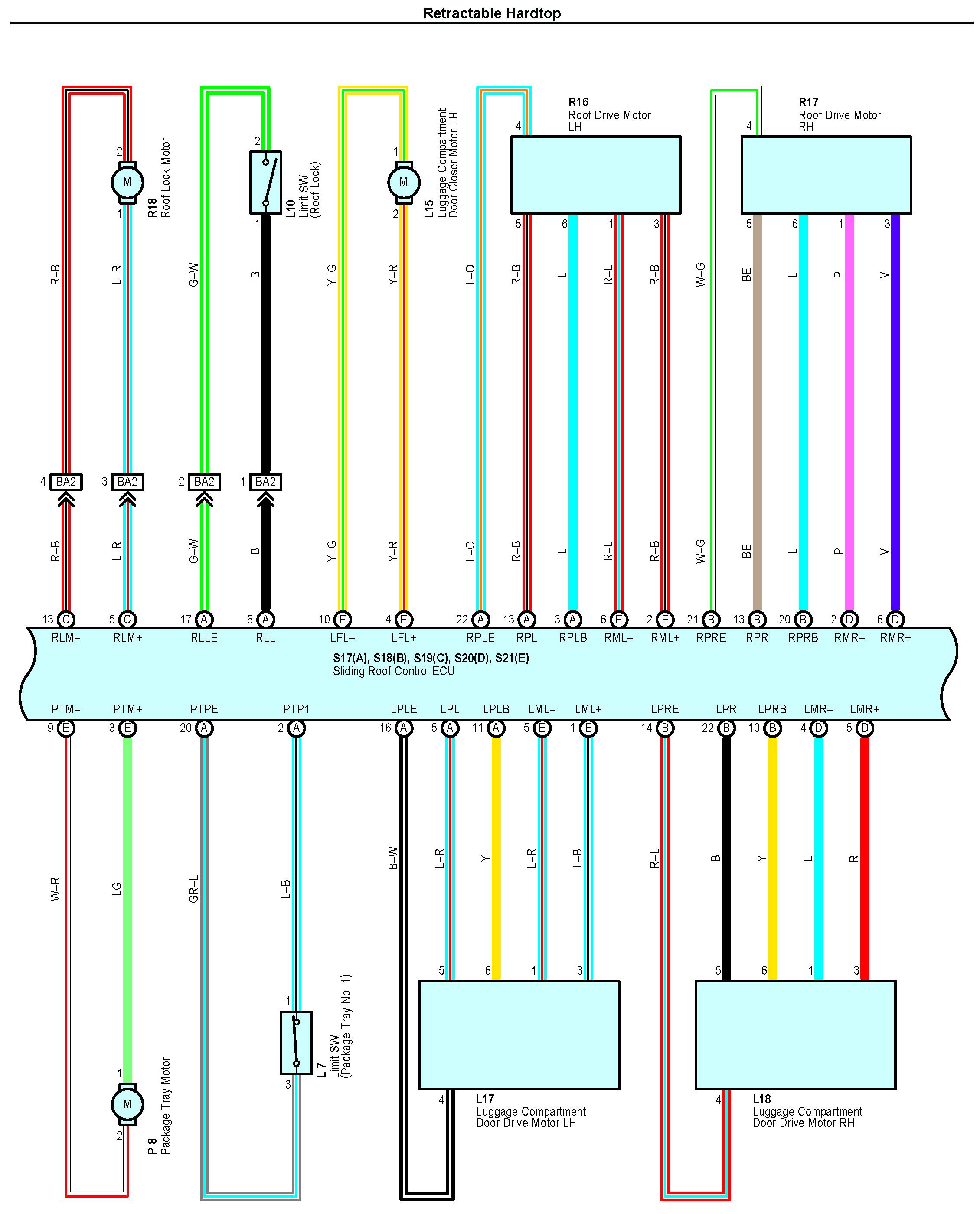

Retractable Hardtop Part 6:

Retractable Hardtop Part 7:

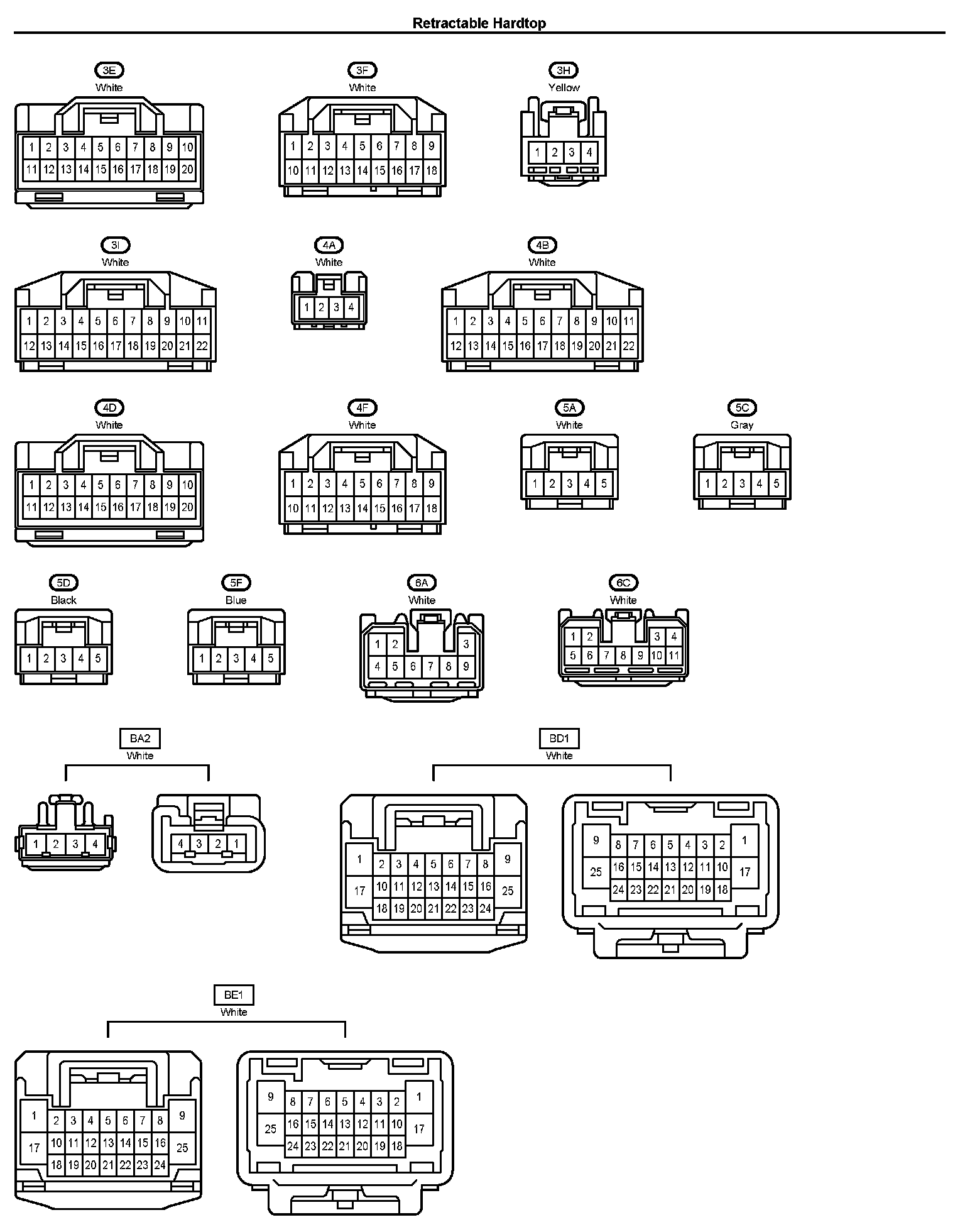

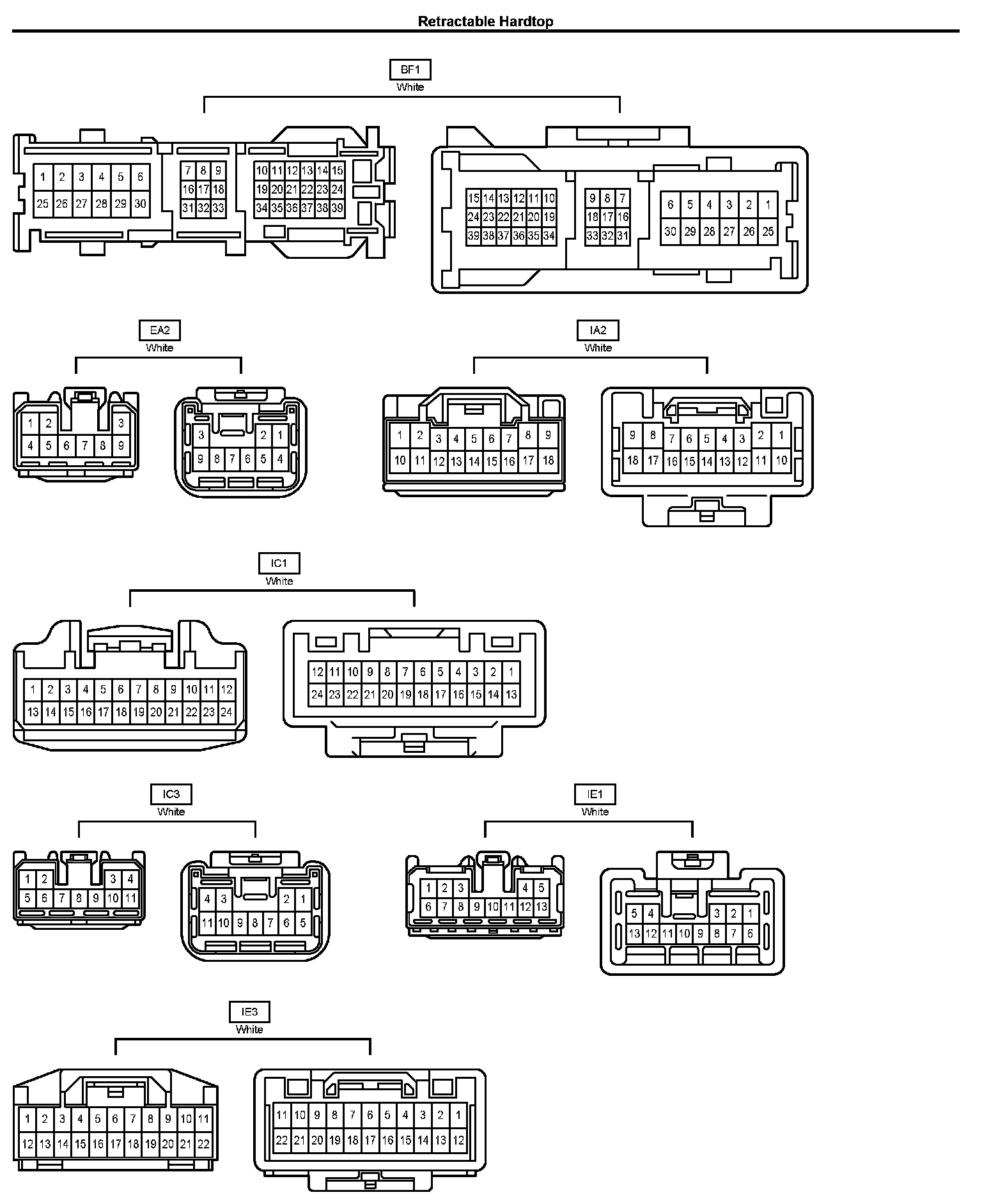

Connectors Part 1:

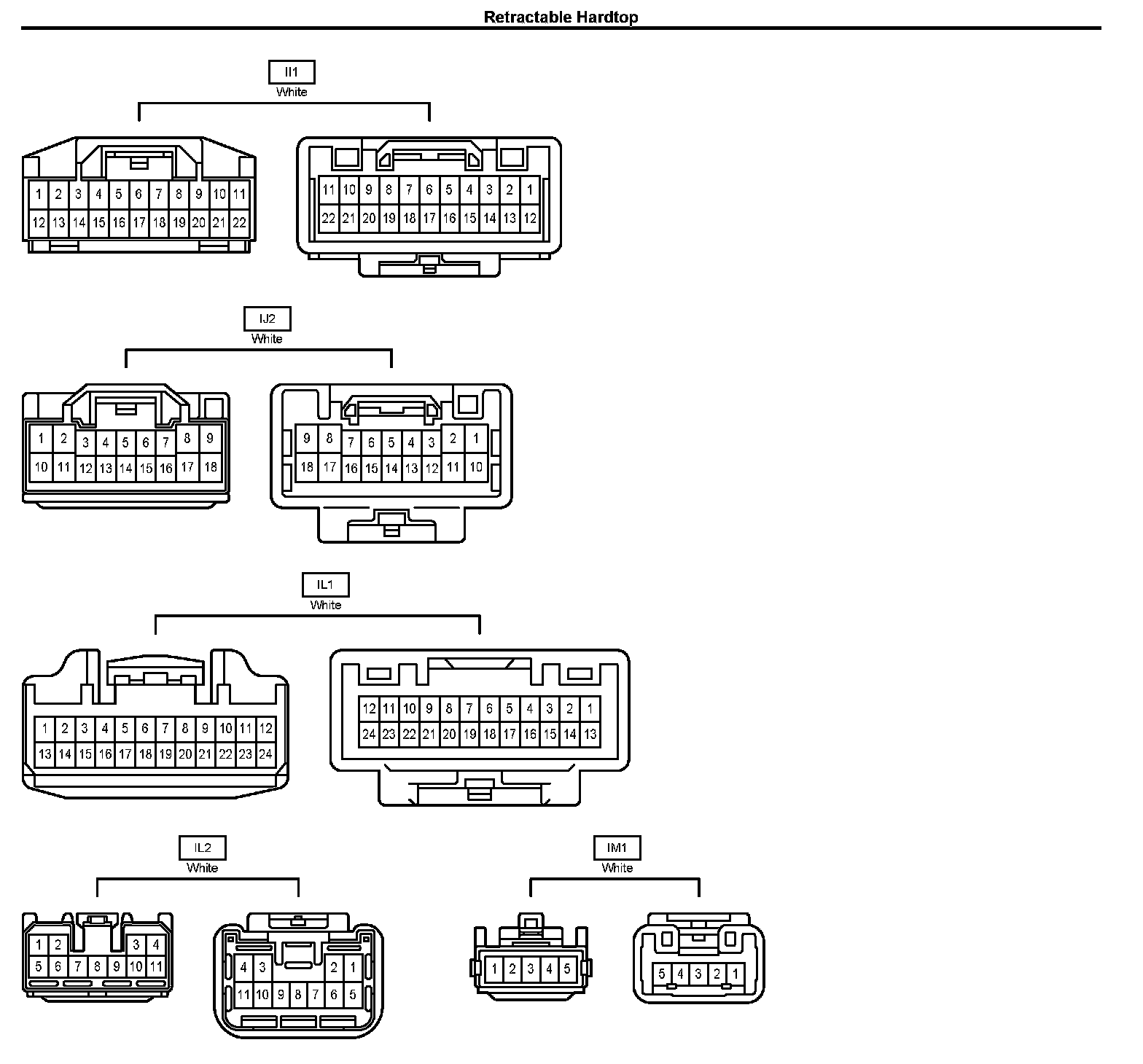

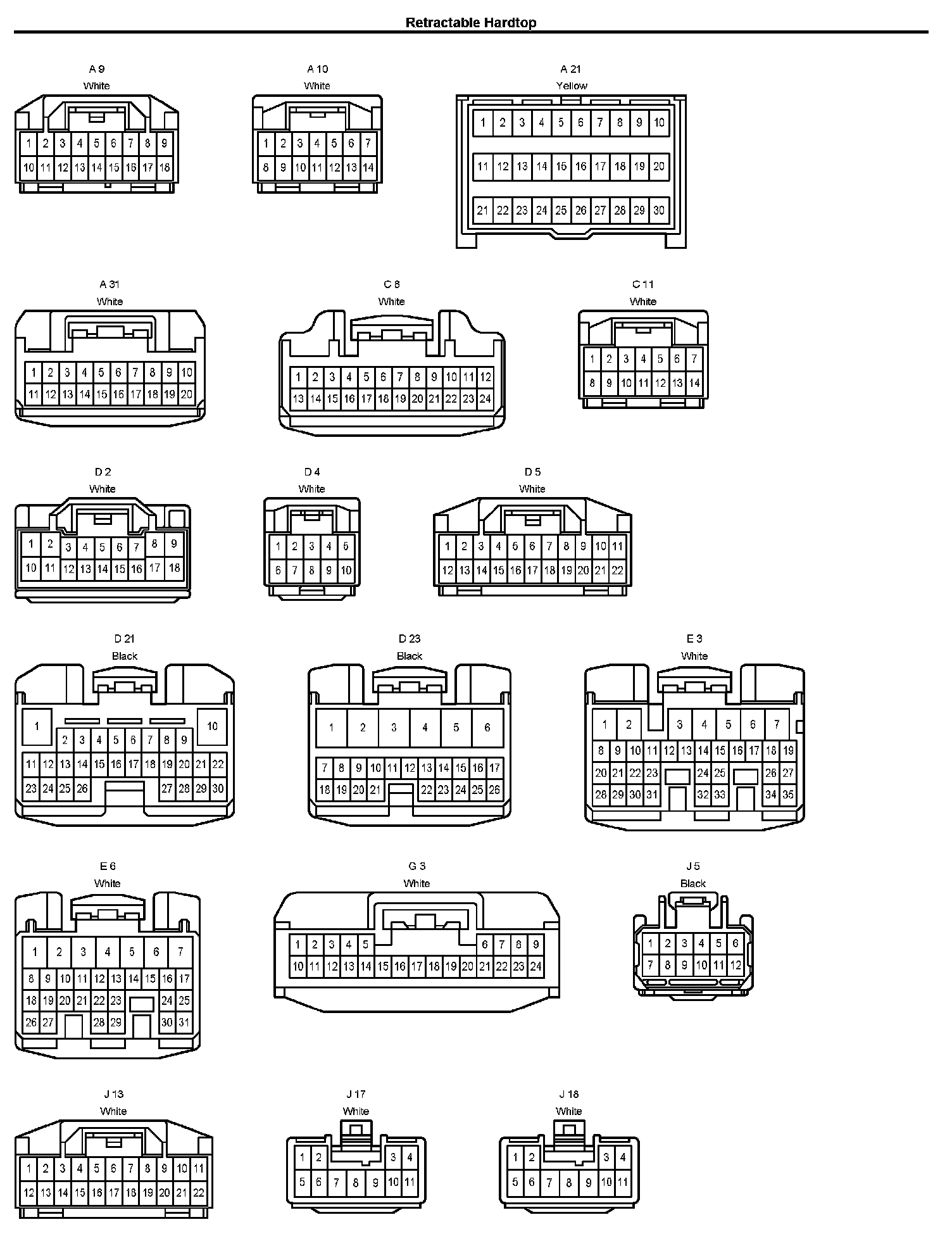

Connectors Part 2:

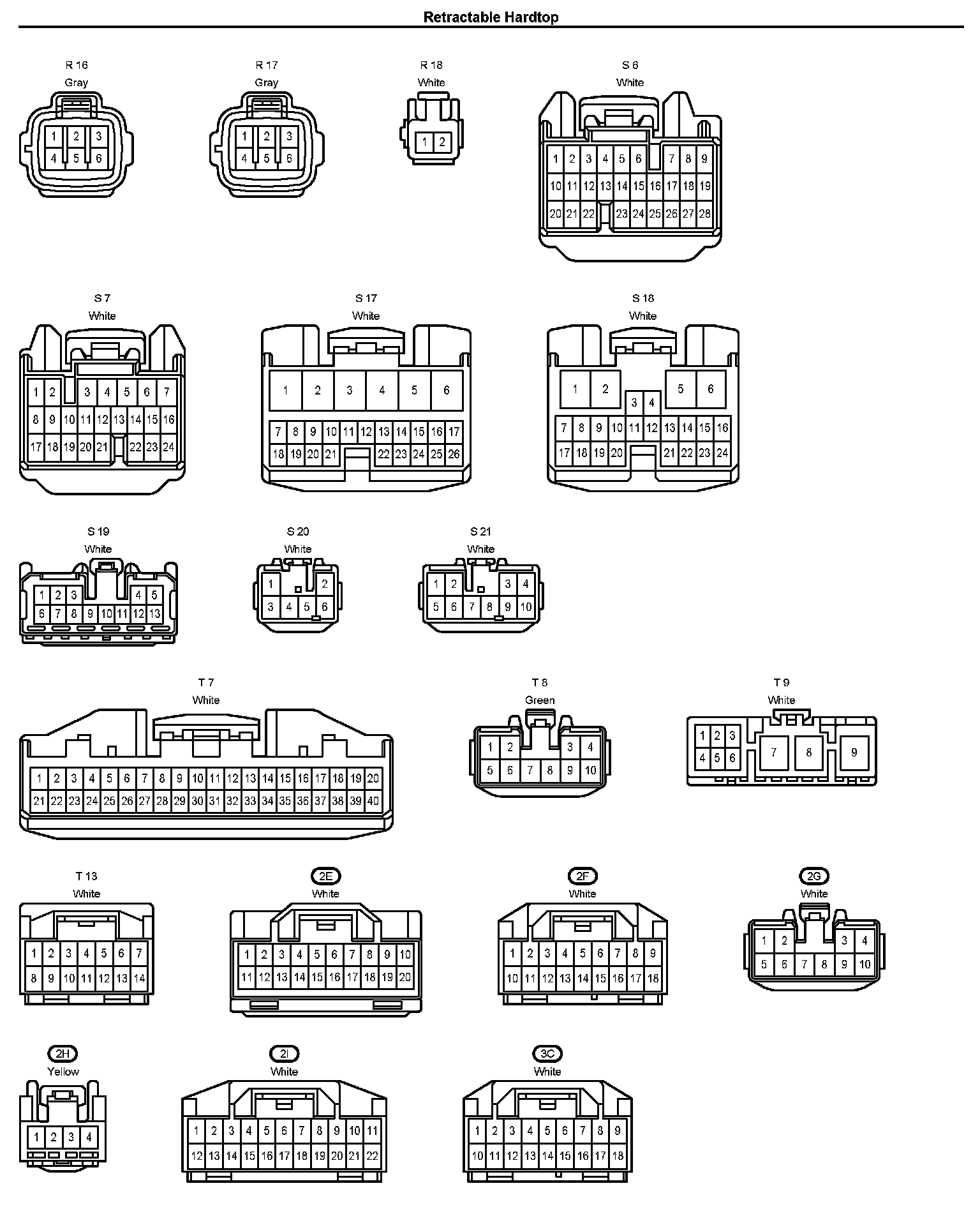

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
