Installation

MIRROR: OUTER REAR VIEW MIRROR: INSTALLATION

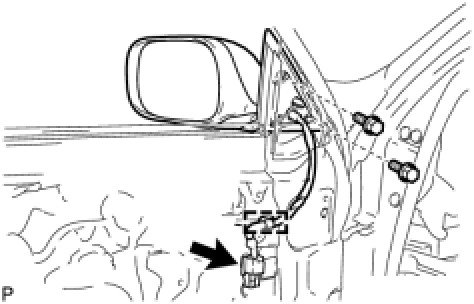

1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH





(a) Install the outer rear view mirror with the 2 bolts.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

(b) Attach the clamp.

(c) Connect the connector.

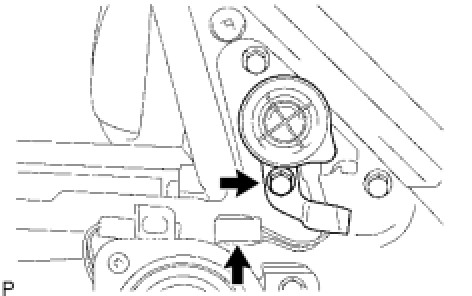

2. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY





(a) Install the speaker with the bolt.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

(b) Connect the connector.

3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Reassembly

4. INSTALL FRONT DOOR WINDOW UPPER BRACKET GARNISH LH Reassembly

5. INSTALL NO. 2 DOOR INSIDE HANDLE BEZEL LH Reassembly

6. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY Reassembly
