Removal

MIRROR: INNER REAR VIEW MIRROR: REMOVAL

1. REMOVE MAP LIGHT ASSEMBLY

2. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER





(a) Using a screwdriver, remove the holder cover.

HINT
Tape the screwdriver tip before use.

3. REMOVE INNER REAR VIEW MIRROR ASSEMBLY





(a) Disconnect the mirror connector.

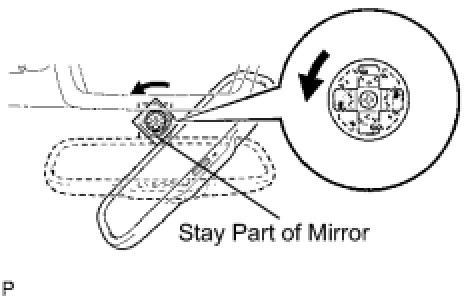

(b) Remove the mirror by turning the stay part of the mirror counterclockwise.
