Disassembly

MIRROR: OUTER REAR VIEW MIRROR: DISASSEMBLY

1. REMOVE OUTER MIRROR LH

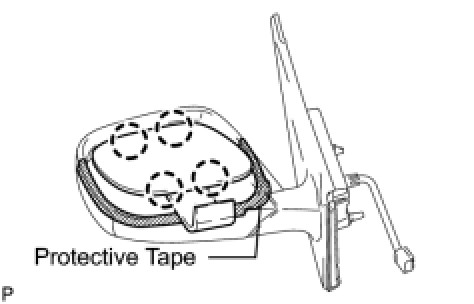

(a) Using a moulding remover, detach the 4 claws.

HINT
Apply protective tape to the mirror body.

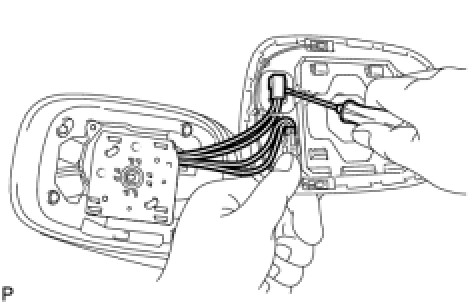

(b) Using a screwdriver, disconnect the 2 connectors and remove the mirror.





2. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY LH Removal
