Mirrors: Description and Operation

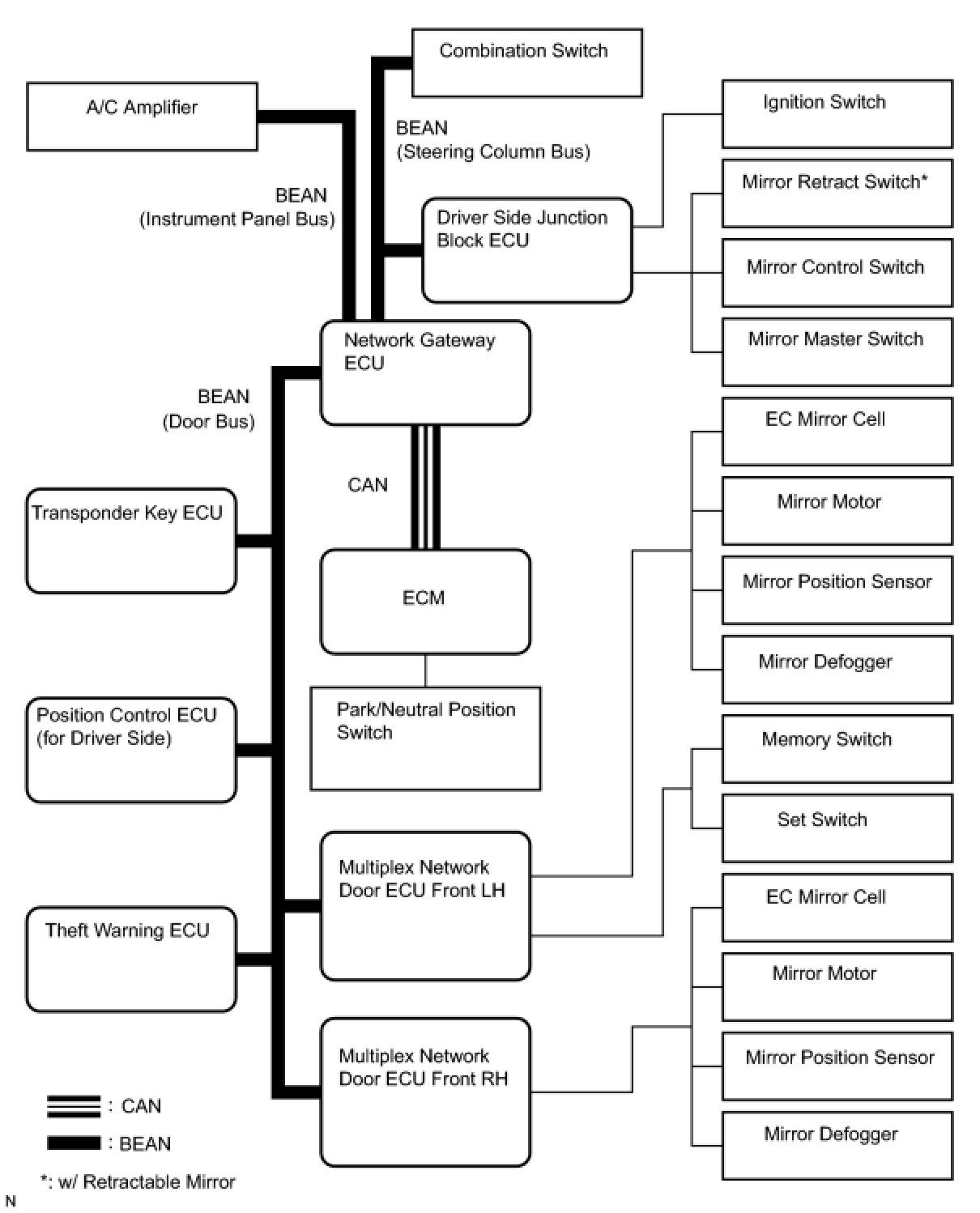

MIRROR: POWER MIRROR CONTROL SYSTEM: SYSTEM DIAGRAM









MIRROR: POWER MIRROR CONTROL SYSTEM: SYSTEM DESCRIPTION

1. POWER MIRROR CONTROL SYSTEM DESCRIPTION

This system has the following functions: automatic glare-resistant electrochromic (EC) mirror, reverse shift-linked mirror, electrical remote control type mirror, memory function, rear window defogger-linked mirror defogger and wiper-linked mirror defogger.

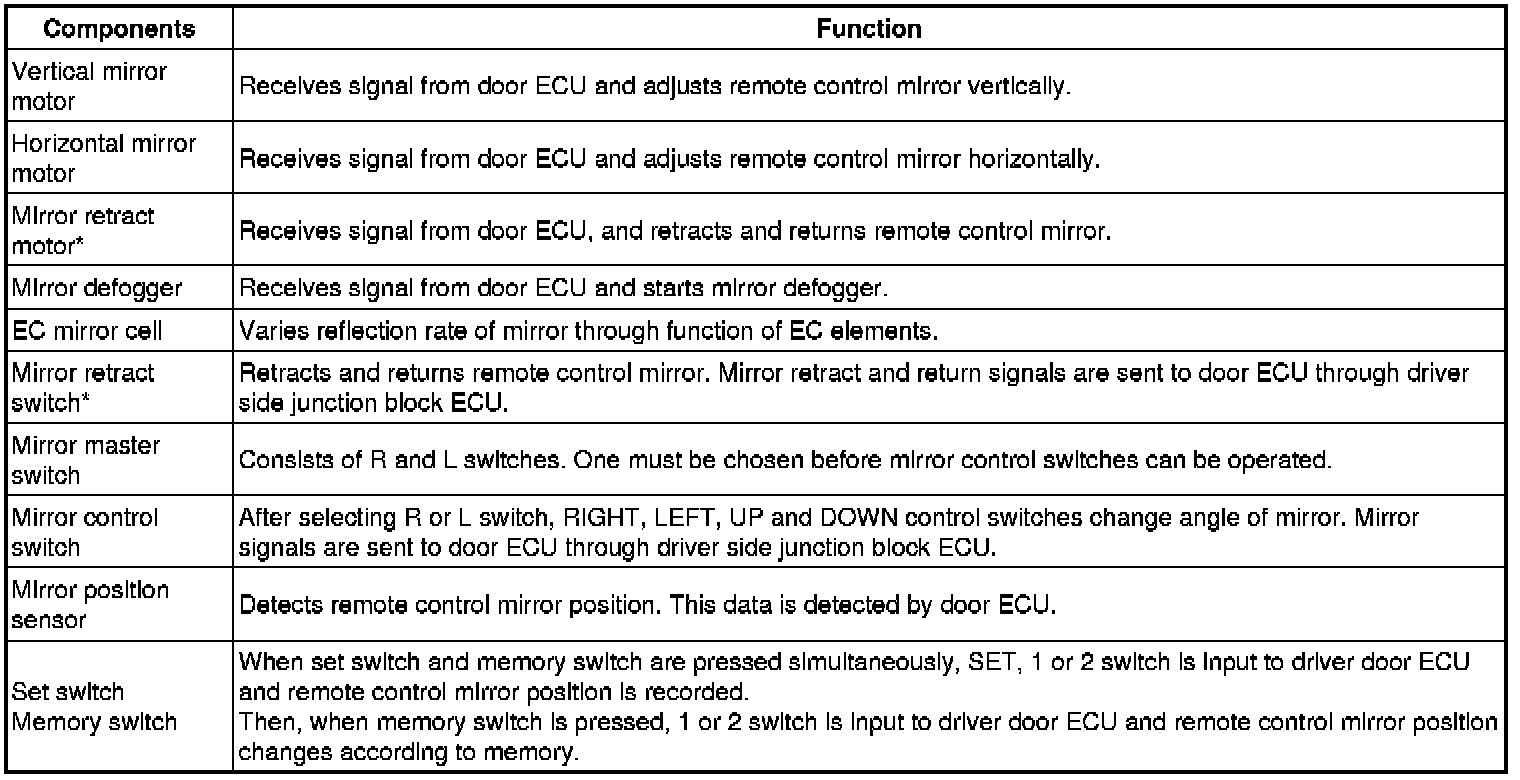

2. FUNCTION OF MAIN COMPONENT





HINT
*: w/ Retractable Mirror

3. SYSTEM OPERATION

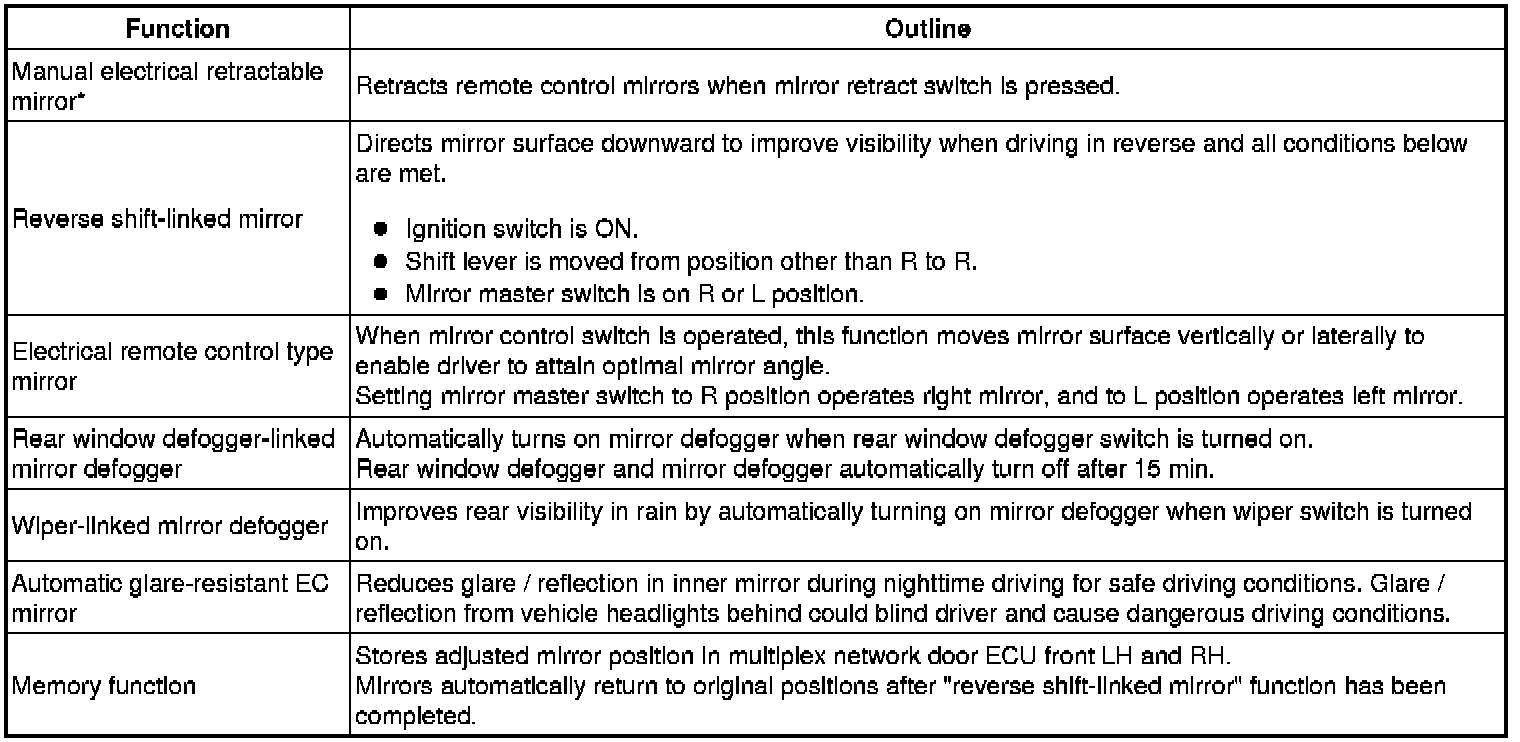

The remote control mirror has the following features:





HINT
*: w/ Retractable Mirror
