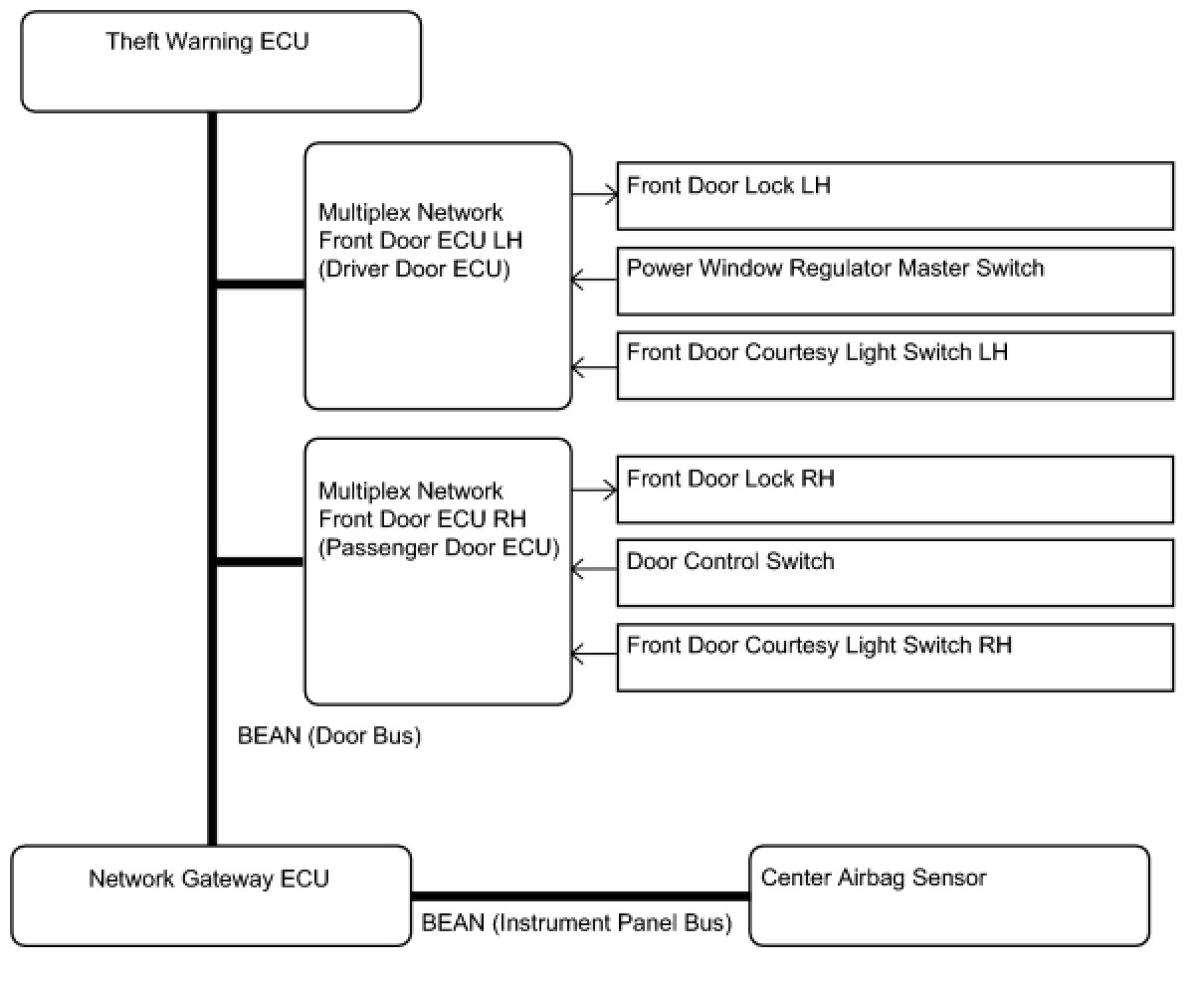

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DIAGRAM










DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DESCRIPTION

1. POWER DOOR LOCK SYSTEM DESCRIPTION

(a) The power door lock system locks/unlocks all doors with a one-touch operation.

* The door control switch of the master switch assembly on the driver's door and the driver's door key cylinder send lock/unlock request signals to the theft warning ECU through the driver door ECU using the BEAN.

* The door control switch on the passenger door sends lock/unlock request signals to the theft warning ECU through the passenger door ECU using the BEAN.

* Upon receiving request signals, the theft warning ECU sends these signals to the door ECUs on each door using the BEAN. The door ECUs then lock/unlock each door.

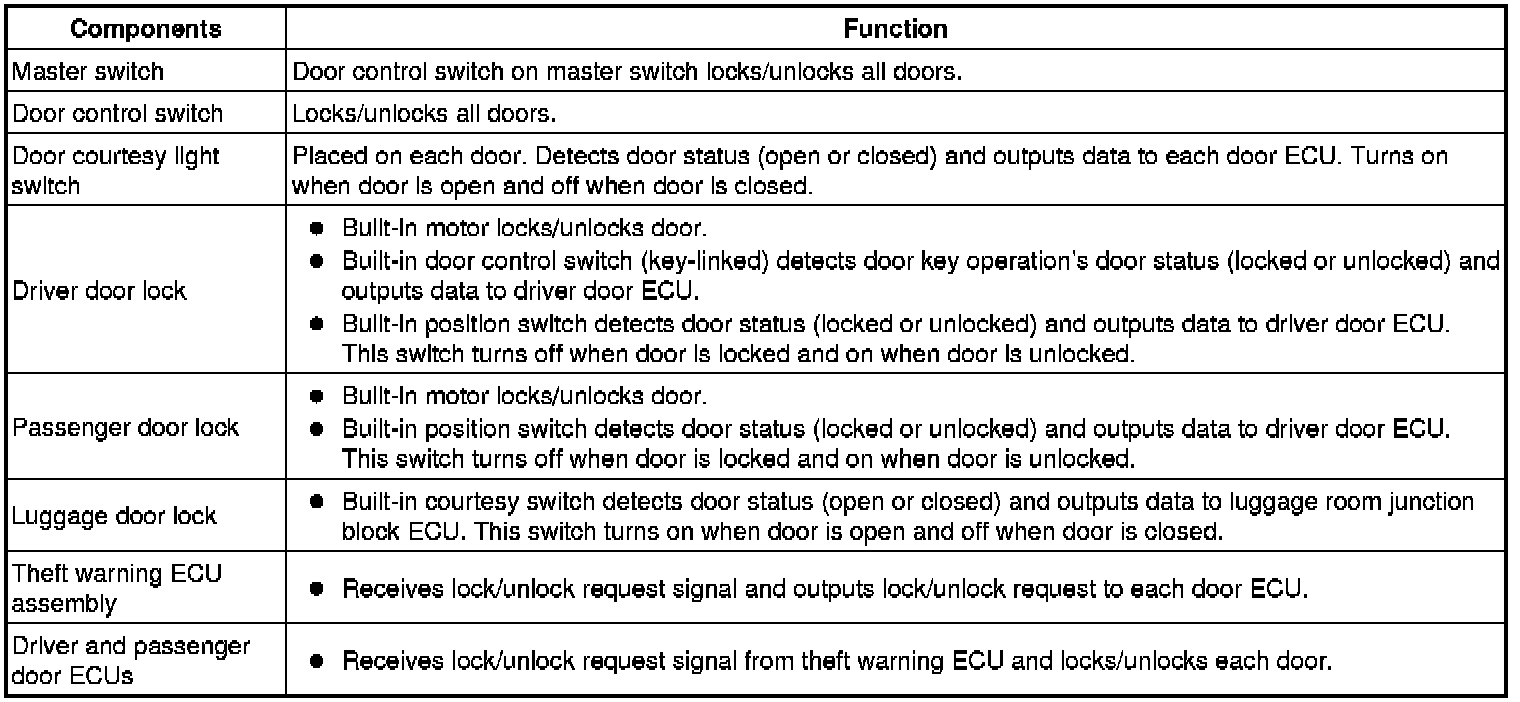

(b) Components

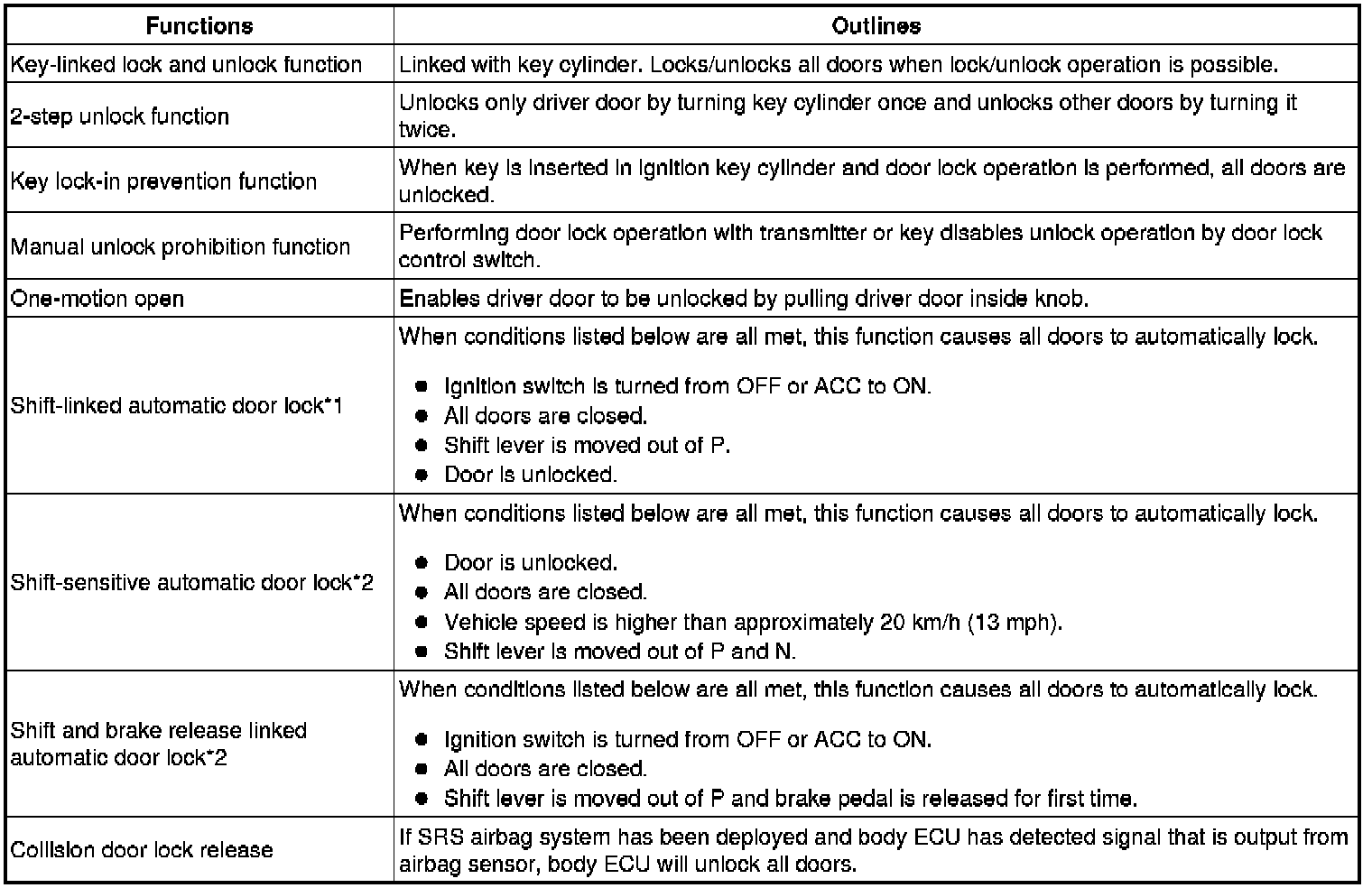

(c) Functions





HINT
*1: Initial setting

*2: Setting of *1 function can be changed using the customizing function.
