Disassembly

INTERIOR: ROOF HEADLINING: DISASSEMBLY

1. OPEN ROOF PANEL HALFWAY

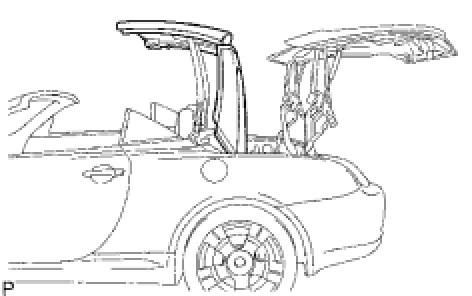

(a) Open the roof panel halfway Manual Open Operation.

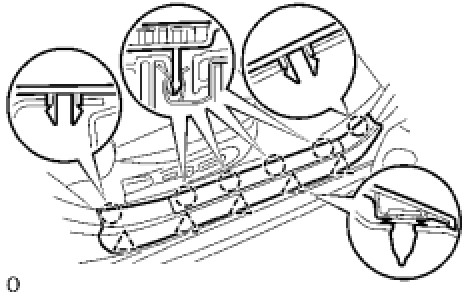

2. REMOVE DOOR SCUFF PLATE ASSEMBLY RH





(a) Using a clip remover, detach the 5 clips.

(b) Using a screwdriver, detach the 6 claws and remove the scuff plate.

HINT
Tape the screwdriver tip before use.

3. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

HINT
Use the same procedures described for the RH side.

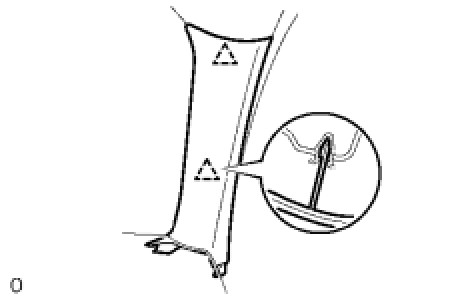

4. REMOVE FRONT DOOR OPENING TRIM COVER RH





(a) Using a screwdriver, detach the 3 claws and remove the trim cover.

HINT
Tape the screwdriver tip before use.

5. REMOVE FRONT DOOR OPENING TRIM COVER LH

HINT
Use the same procedures described for the RH side.

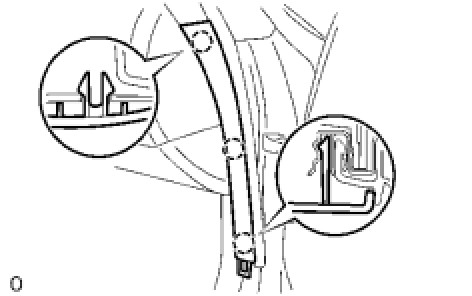

6. REMOVE FRONT PILLAR GARNISH RH





(a) Using a screwdriver, detach the 2 clips and remove the garnish.

HINT
Tape the screwdriver tip before use.

7. REMOVE FRONT PILLAR GARNISH LH

HINT
Use the same procedures described for the RH side.

8. REMOVE VISOR BRACKET COVER RH





(a) Using a screwdriver, detach the 3 claws and remove the bracket cover.

HINT
Tape the screwdriver tip before use.

9. REMOVE VISOR BRACKET COVER LH

HINT
Use the same procedures described for the RH side.

10. REMOVE VISOR ASSEMBLY RH

(a) Remove the 2 screws and visor.

11. REMOVE VISOR ASSEMBLY LH

(a) Remove the 2 screws and visor.

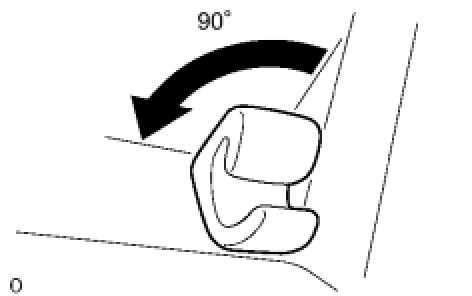

12. REMOVE VISOR HOLDER





(a) Remove the 2 holders by turning them counterclockwise.

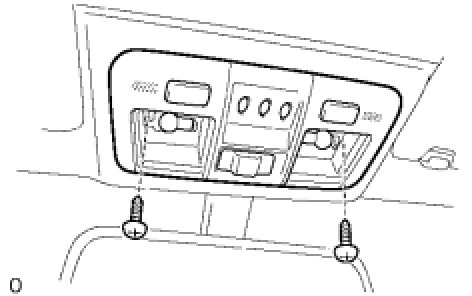

13. REMOVE MAP LIGHT ASSEMBLY





(a) Using a screwdriver, pry out the 2 lenses.

HINT
Tape the screwdriver tip before use.

(b) Remove the 2 screws and map light.

(c) Disconnect the map light connector.

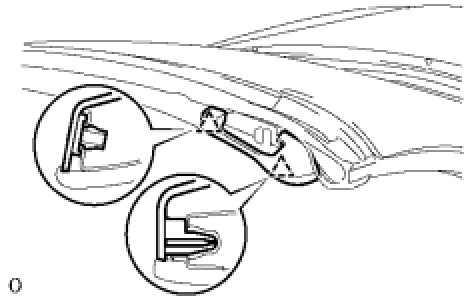

14. REMOVE ROOF FRONT CORNER HEADLINING RH





(a) Using a screwdriver, detach the 2 clips and remove the headlining.

HINT
Tape the screwdriver tip before use.

15. REMOVE ROOF FRONT CORNER HEADLINING LH

HINT
Use the same procedures described for the RH side.

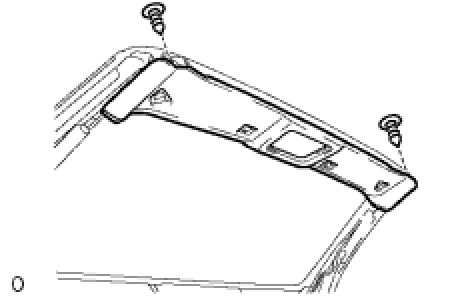

16. REMOVE ROOF HEADLINING ASSEMBLY





(a) Using a clip remover, remove the 2 clips.

(b) Pull the headlining as indicated by the arrow in the illustration to detach the 4 claws. Then remove the headlining.





17. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH





(a) Using a screwdriver, detach the 4 clips and 3 claws. Then remove the garnish.

HINT
Tape the screwdriver tip before use.

18. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH

HINT
Use the same procedures described for the RH side.

19. REMOVE ROOF HEADLINING ASSEMBLY CENTER





(a) Using a clip remover, remove the 5 clips.

(b) Using a screwdriver, detach the 3 clips labeled A and remove the headlining.

HINT
Tape the screwdriver tip before use.

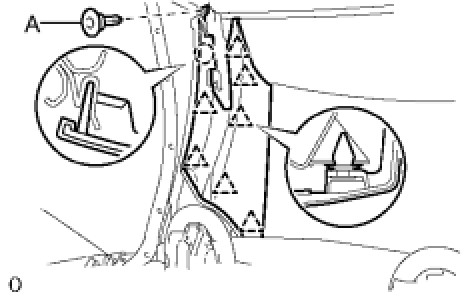

20. REMOVE ROOF SIDE GARNISH INNER RH





(a) Using a clip remover, remove the clip labeled A.

(b) Using a screwdriver, detach the 7 clips and claw. Then remove the garnish.

HINT
Tape the screwdriver tip before use.

21. REMOVE ROOF SIDE GARNISH INNER LH

HINT
Use the same procedures described for the RH side.

22. REMOVE ROOF HEADLINING ASSEMBLY REAR





(a) Using a screwdriver, detach the 7 clips and remove the headlining.

HINT
Tape the screwdriver tip before use.
