Installation





INSTRUMENT PANEL: INSTRUMENT PANEL SAFETY PAD: INSTALLATION

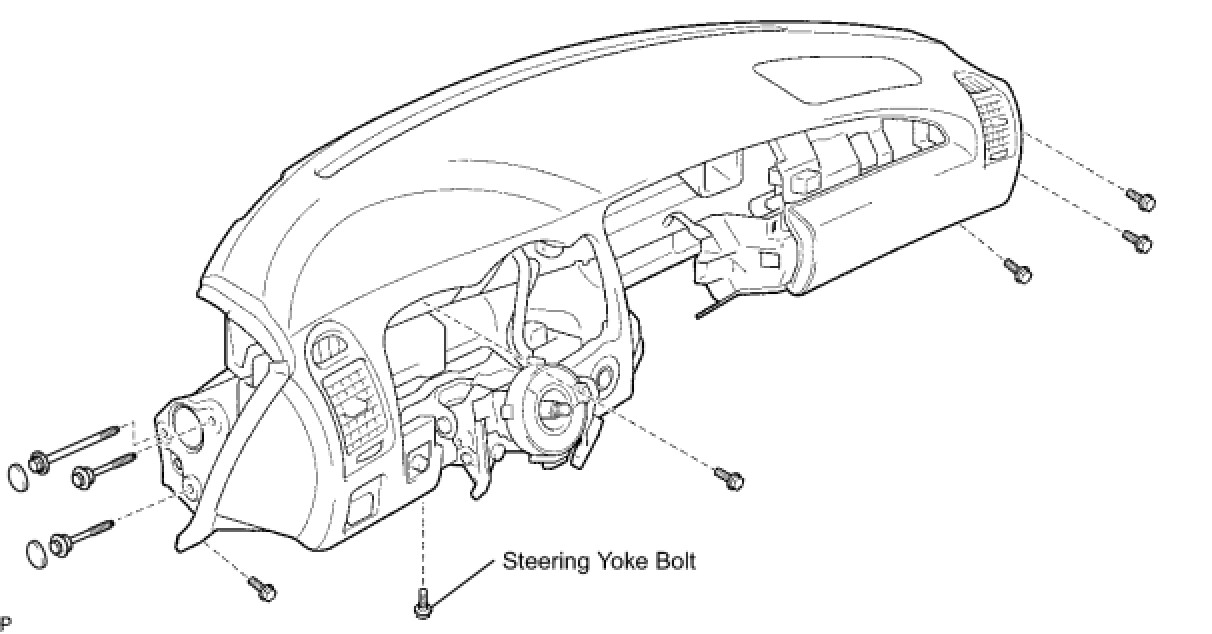

1. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

(a) Attach the 2 claws to install the instrument panel safety pad (with instrument panel reinforcement and steering column).

(b) Install the instrument panel safety pad with the 8 bolts, 2 caps and steering yoke bolt.





(c) Connect the connectors.





(d) Install the floor carpet.

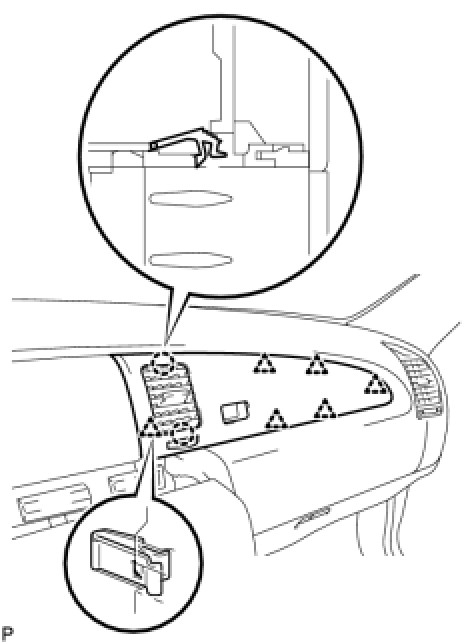

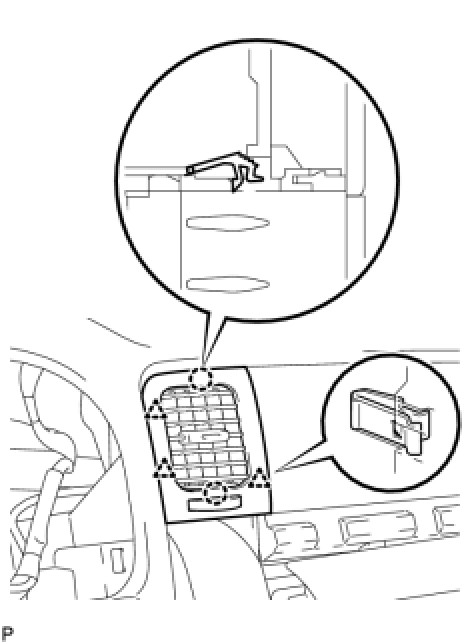

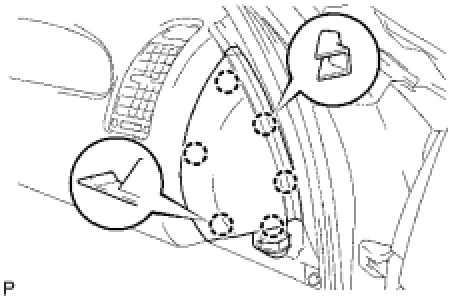

2. INSTALL INSTRUMENT SIDE PANEL RH





(a) Attach the 6 claws to install the panel

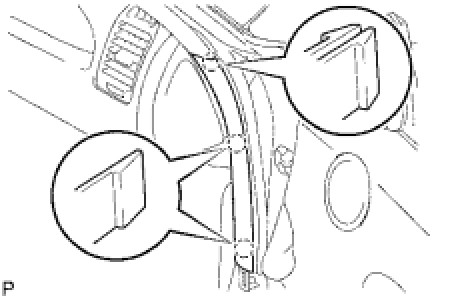

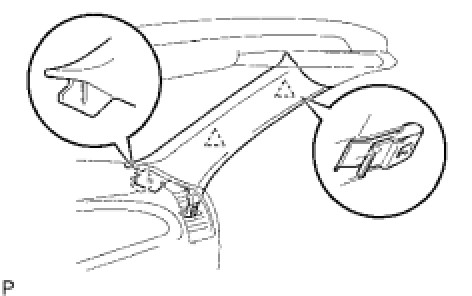

3. INSTALL FRONT PILLAR GARNISH RH





(a) Attach the claw and 2 clips to install the pillar garnish.

4. INSTALL FRONT PILLAR GARNISH LH

HINT
Use the same procedures described for RH side.

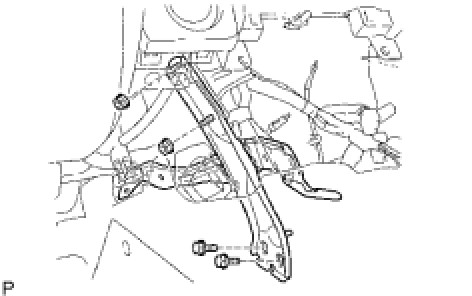

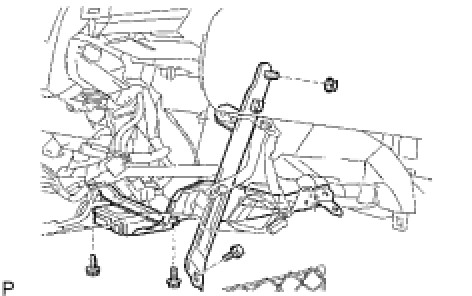

5. INSTALL NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY





(a) Install the brace with the 2 nuts and 2 bolts.

6. INSTALL NO. 2 INSTRUMENT PANEL BRACE SUB-ASSEMBLY





(a) Install the brace with the bolt and nut.

(b) Install the tire pressure monitor receiver with the 2 bolts.

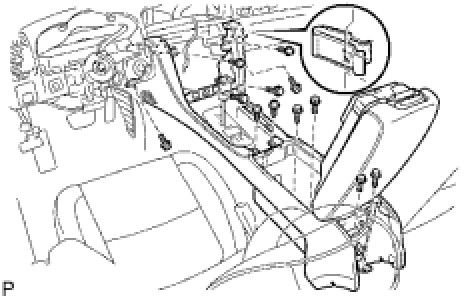

7. INSTALL CONSOLE BOX ASSEMBLY





(a) Attach the 2 clips to install the console box.

(b) Install the 8 bolts and 4 screws.

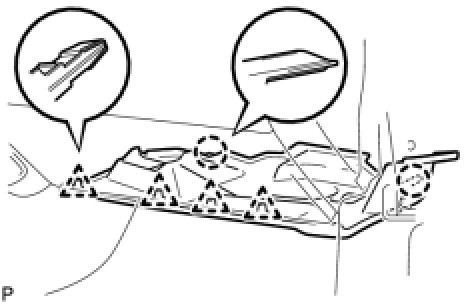

8. INSTALL NO. 3 BOX PANEL





(a) Attach the 7 claws to install the panel

9. INSTALL CONSOLE BOX CARPET

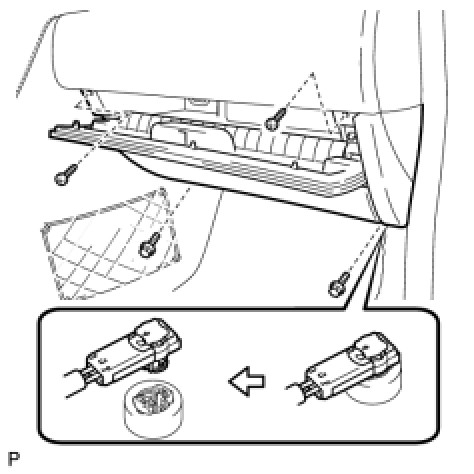

10. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY





(a) Connect the connectors.

CAUTION:
When handling the airbag connector, take care not to damage the airbag wire harness.

(b) Install the glove compartment door together with the airbag assembly.

(c) Install the 2 screws.

(d) Install the 2 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

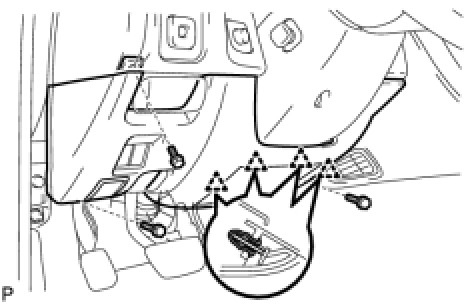

11. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY





(a) Connect the connector.

(b) Attach the 3 clips and 2 claws to install the under cover.

12. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER (w/ LEXUS Navigation System)

13. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (w/ LEXUS Navigation System)





(a) Attach the 6 clips and 2 claws to install the panel garnish.

14. INSTALL INSTRUMENT PANEL SAFETY PAD GARNISH SUB-ASSEMBLY (w/ LEXUS Navigation System)





(a) Attach the 3 clips and 2 claws to install the safety pad garnish.

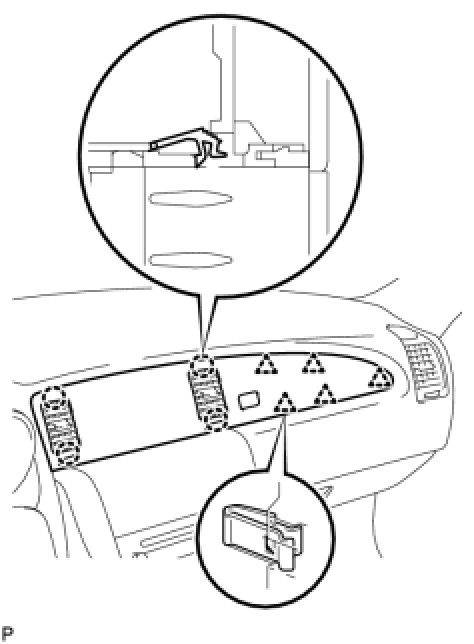

15. INSTALL INSTRUMENT PANEL SAFETY PAD GARNISH SUB-ASSEMBLY (w/o LEXUS Navigation System)





(a) Attach the 5 clips and 4 claws to install the safety pad garnish.

16. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER

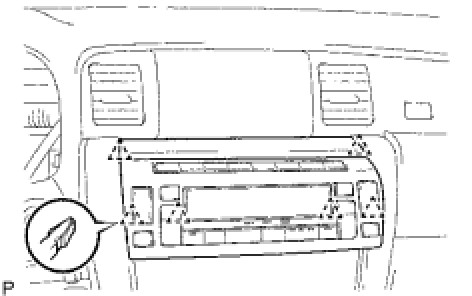

17. INSTALL AIR CONDITIONING CONTROL ASSEMBLY





(a) Connect the connector.

(b) Attach the 6 clips to install the air conditioning control.

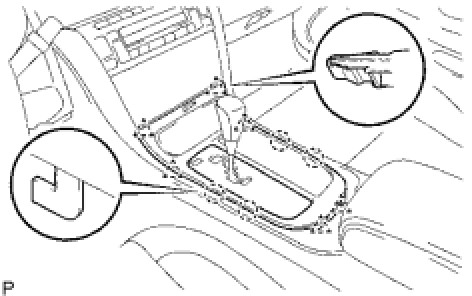

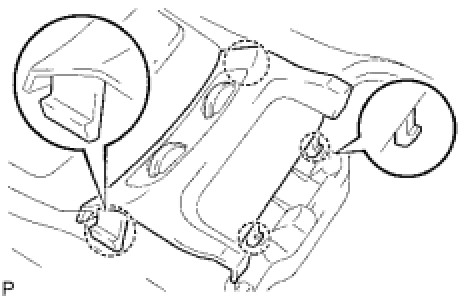

18. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY





(a) Connect the connectors.

(b) Attach the 6 clips and 4 claws to install the panel.

19. INSTALL REAR CONSOLE UPPER PANEL GARNISH





(a) Connect the connectors.

(b) Attach the 4 claws to install the panel garnish.

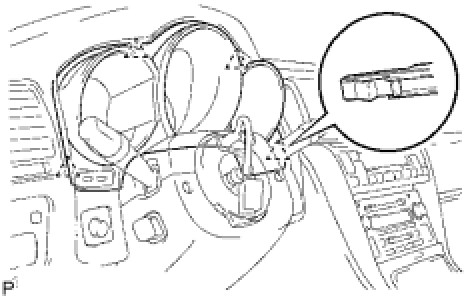

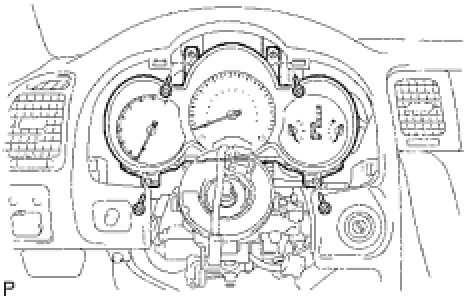

20. INSTALL COMBINATION METER ASSEMBLY





(a) Connect the connectors.

(b) Install the combination meter with the 4 screws.

21. INSTALL TURN SIGNAL SWITCH ASSEMBLY Installation

22. INSTALL STEERING COLUMN COVER LOWER Installation

23. INSTALL STEERING COLUMN COVER UPPER

24. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY





(a) Connect the connector.

(b) Attach the 4 clips to install the panel.

25. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation

26. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY





(a) Attach the 4 Clips to install the safety pad.

(b) Install the 3 bolts.

(c) Connect the hood lock control cable and connectors.

27. INSTALL FRONT DOOR OPENING TRIM COVER RH





(a) Attach the 3 claws to install the trim cover.

28. INSTALL FRONT DOOR OPENING TRIM COVER LH

HINT
Use the same procedures described for RH side.

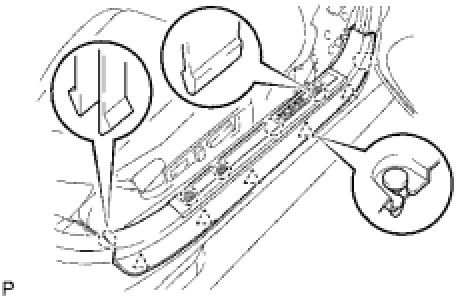

29. INSTALL DOOR SCUFF PLATE ASSEMBLY RH





(a) Connect the connector.

(b) Attach the 4 claws and 5 clips to install the door scuff plate.

30. INSTALL DOOR SCUFF PLATE ASSEMBLY LH

HINT
Use the same procedures described for RH side.

31. INSTALL STEERING WHEEL ASSEMBLY Installation

32. INSTALL STEERING PAD ASSEMBLY Installation

33. INSTALL STEERING PAD SWITCH MODULATOR Installation

34. INSTALL SWITCH AND VOLUME CASE Installation

35. INSTALL NO. 2 STEERING WHEEL COVER LOWER

36. SET STEERING WHEEL CENTER POINT

37. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

38. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

39. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
