Reassembly

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR: REASSEMBLY

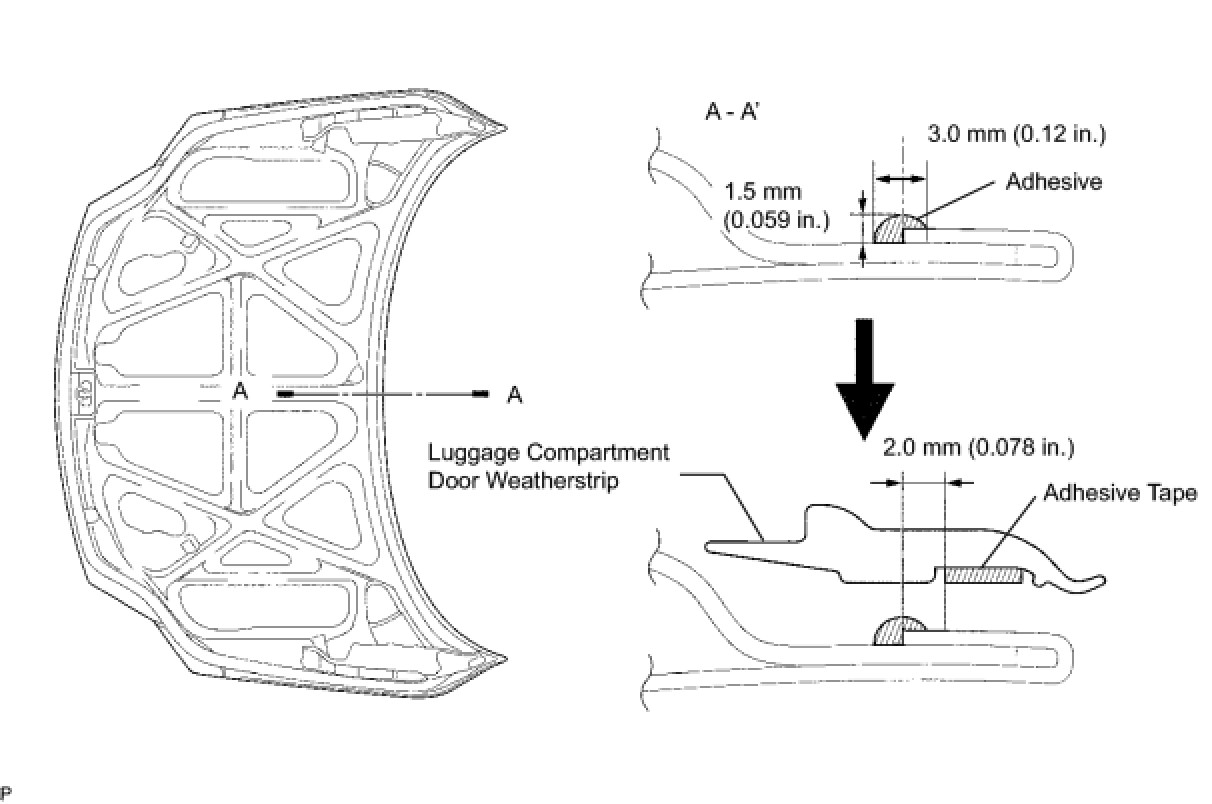

1. INSTALL LUGGAGE COMPARTMENT DOOR WEATHERSTRIP

(a) Coat the luggage compartment door panel with adhesive, as shown in the illustration.

Adhesive:

"HAMATITE" YN-92, Yokohama Rubber Co., LTD or equivalent

Diameter:

3 mm (0.12 in.)

(b) Install the weatherstrip to the luggage compartment door panel.

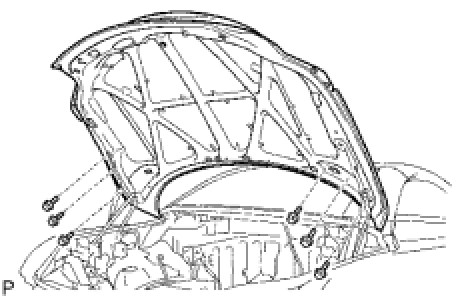

2. INSTALL LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY





(a) Install the door panel with the 6 bolts.

Torque : 22 Nm (224 kgf-cm, 16 ft-lbf)

(b) Install the wire harness clamps.

(c) Connect the connector.

3. INSTALL BACK DOOR STOPPER LOWER

(a) Install the stopper with the 4 bolts.

4. INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY LH

(a) Install the door garnish with the 2 nuts.

5. INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY RH

HINT
Use the same procedures described for the LH side.

6. INSTALL CENTER STOP LIGHT ASSEMBLY Installation

7. INSTALL REAR SPOILER SUB-ASSEMBLY Installation

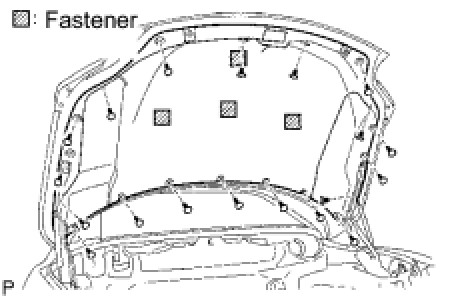

8. INSTALL LUGGAGE COMPARTMENT DOOR COVER





(a) Install the luggage compartment door cover.

(b) Attach the 4 fasteners.

(c) Install the 19 clips.

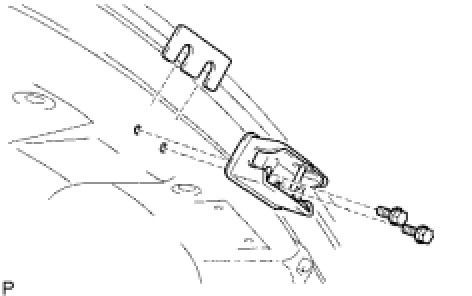

9. INSTALL LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY





(a) Install the striker with the 2 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Adjust the striker Adjustments.
