Trunk / Liftgate: Description and Operation

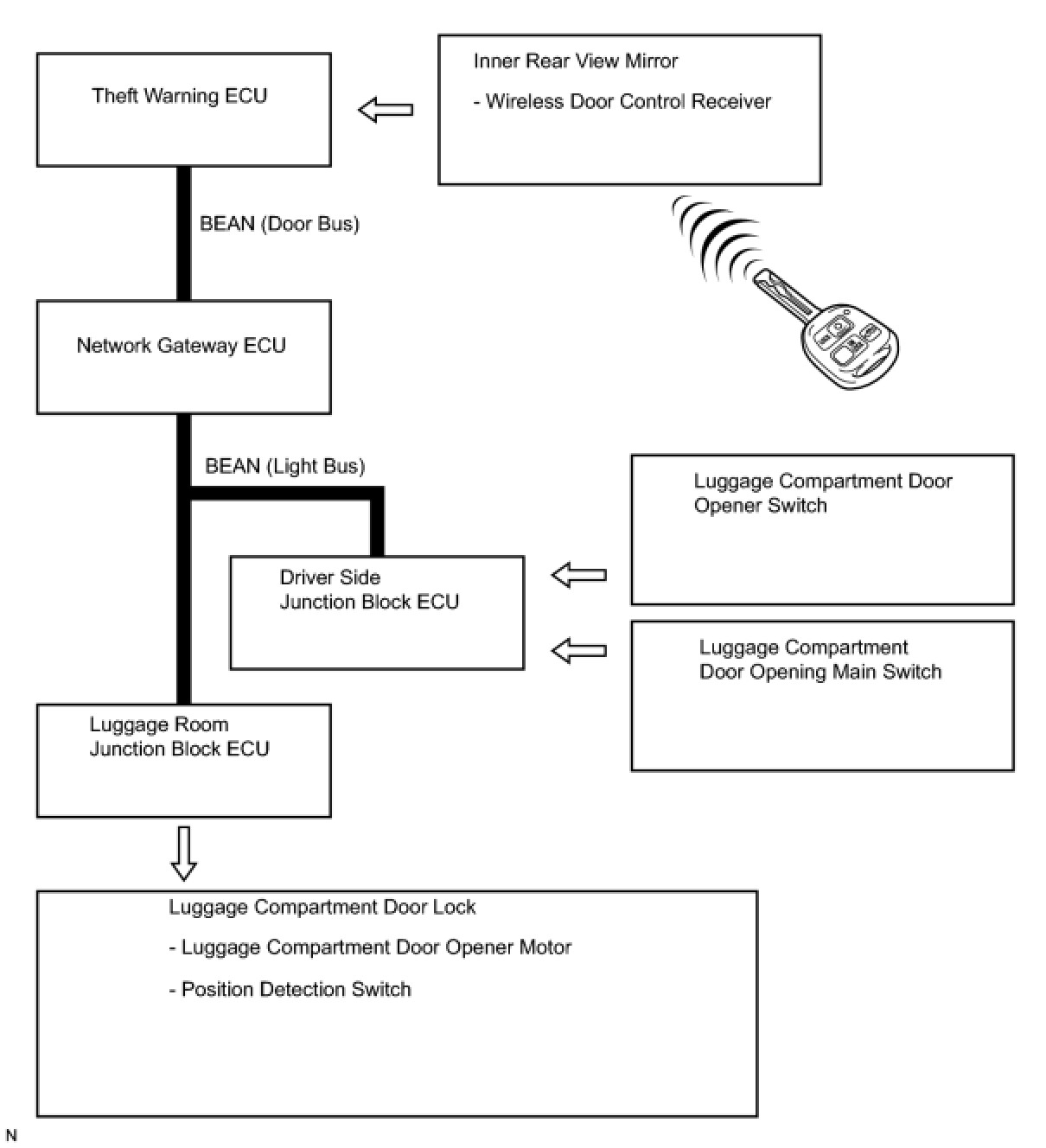

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER SYSTEM: SYSTEM DIAGRAM










ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER SYSTEM: SYSTEM DESCRIPTION

1. LUGGAGE COMPARTMENT DOOR OPENER SYSTEM DESCRIPTION

The luggage compartment door opener switch signal is transmitted multiple times to the theft warning ECU from the driver side junction block. Then, when the theft warning ECU recognizes the main key, the luggage room junction block drives the luggage compartment door opener motor.

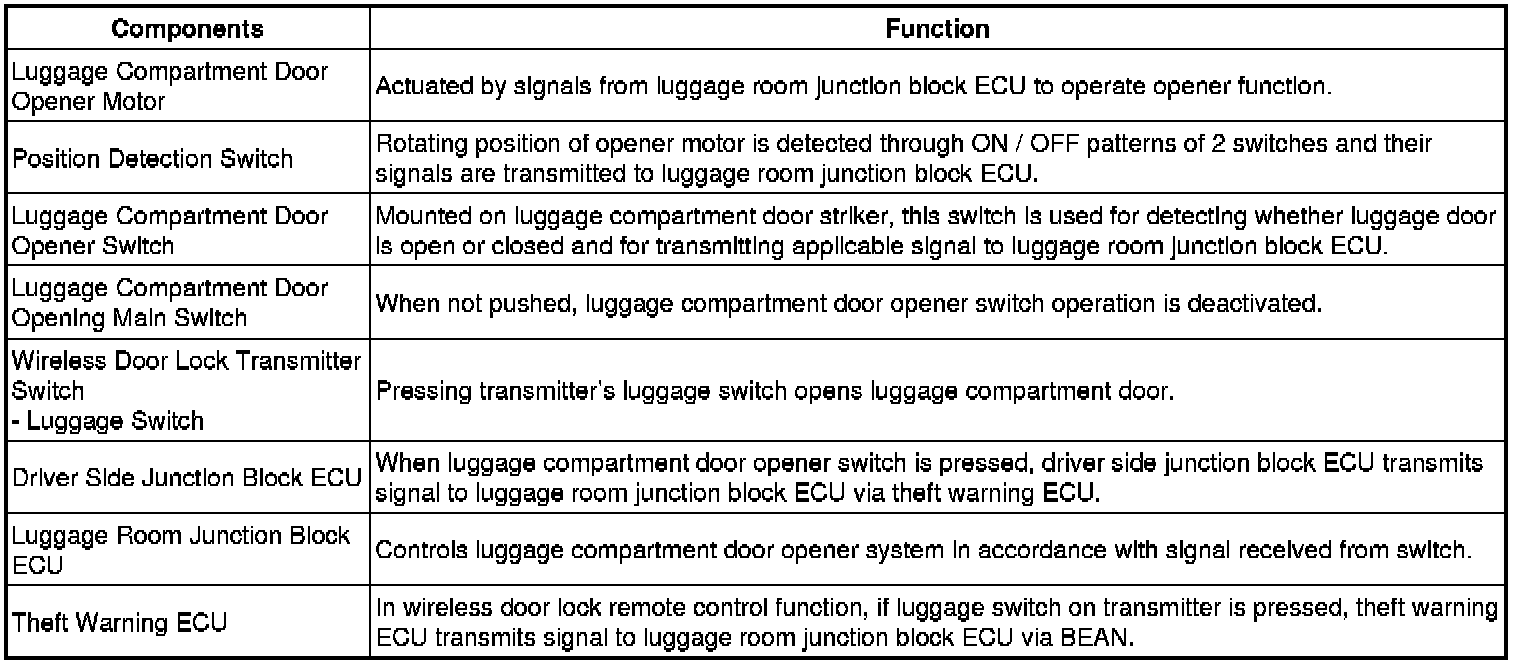

2. FUNCTION OF MAIN COMPONENTS

The luggage compartment door opener system mainly consists of a luggage door lock and the luggage room junction block ECU. The luggage door lock contains switches and a motor. The constituent parts provide the functions listed below.
