Diagnosis System

ENGINE HOOD / DOOR: FUEL LID OPENER SYSTEM: DIAGNOSIS SYSTEM

1. DESCRIPTION

Fuel lid opener system data can be read through the Data Link Connector 3 (DLC3) of the vehicle. When the system seems to be malfunctioning, use the Techstream (with CAN VIM) to check for malfunctions and perform repairs.

2. CHECK DLC3





The vehicle's ECU uses the ISO 15765-4 communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format.

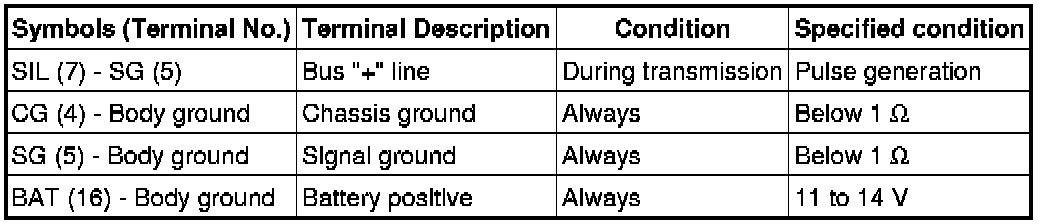

* If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.

HINT
Connect the cable of the Techstream to the DLC3, turn the ignition switch ON and attempt to use the tester. If the screen displays UNABLE TO CONNECT TO VEHICLE, a problem exists in the vehicle side or the tester side.

If communication is normal when the tester is connected to another vehicle, inspect the DLC3 on the original vehicle.

If communication is still not possible when the tester is connected to another vehicle, the problem is probably in the tester itself. Consult the Service Department listed in the tester's instruction manual.
