Luggage Room J/B ECU Power Source Circuit

ENGINE HOOD / DOOR: FUEL LID OPENER SYSTEM: Luggage Room J/B ECU Power Source Circuit
- Luggage Room J/B ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the luggage room junction block ECU.

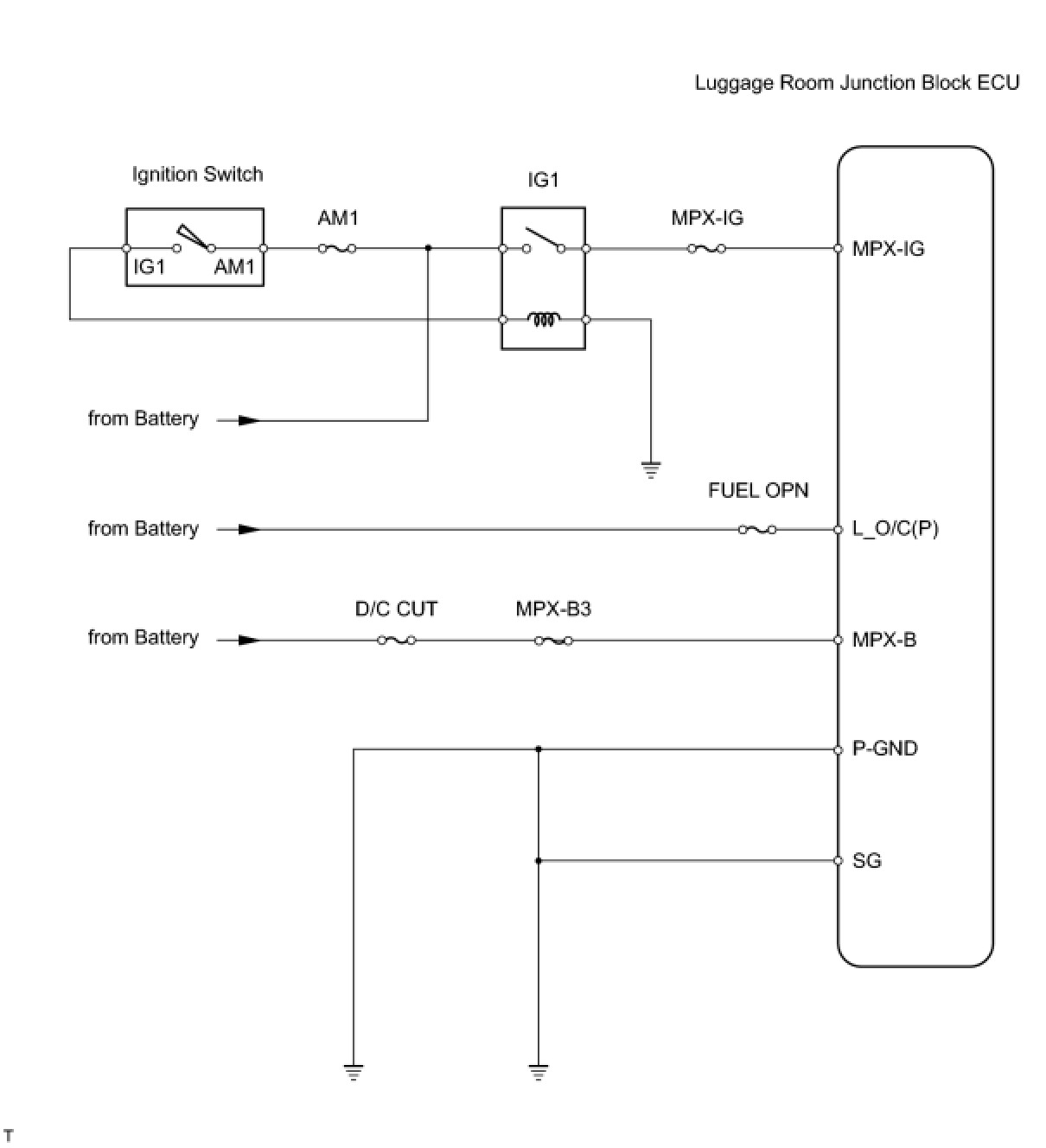

WIRING DIAGRAM





INSEPCTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (AM1, MPX-IG, MPX-B3, FUEL OPN, D/C CUT)

(a) Remove the AM1 and MPX-IG fuses from the driver side junction block.

(b) Remove the MPX-B3 fuse from the passenger side junction block.

(c) Remove the FUEL OPN fuse from the luggage room junction block.

(d) Remove the D/C CUT fuse from the engine room No. 1 relay block.

(e) Measure the resistance of the fuses.

Standard resistance:

Below 1 Ohms

NG -- REPLACE FUSE
OK -- Continue to next step.

2. INSPECT IG1 RELAY

(a) Remove the IG1 relay from the driver side junction block.





(b) Measure the resistance of the relay.

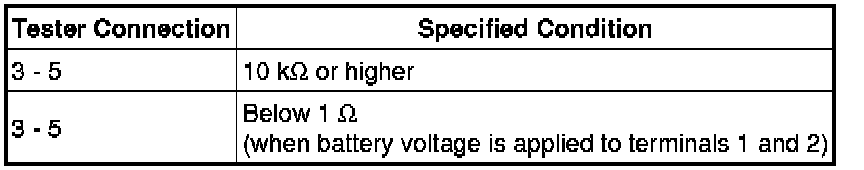

Standard resistance:





NG -- REPLACE IG1 RELAY
OK -- Continue to next step.

3. CHECK WIRE HARNESS (LUGGAGE ROOM JUNCTION BLOCK ECU - BATTERY AND BODY GROUND)





(a) Disconnect the 6A, 6F and 6L junction block connectors.

(b) Disconnect the L24 ECU connector.

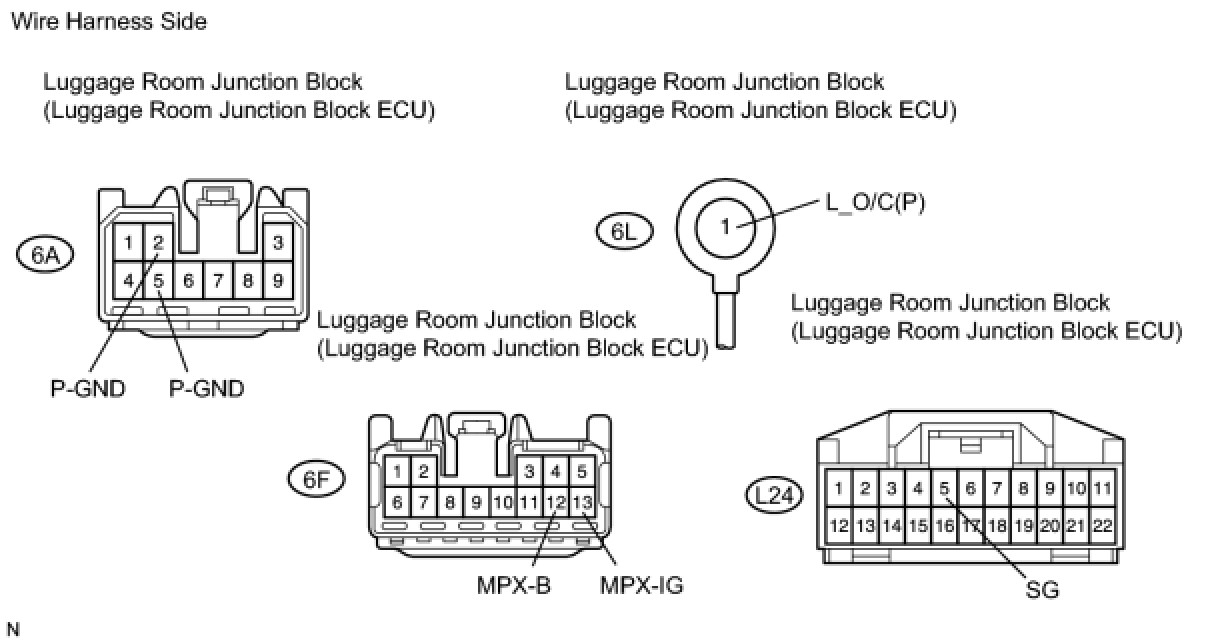

(c) Measure the voltage and resistance of the wire harness side connectors.

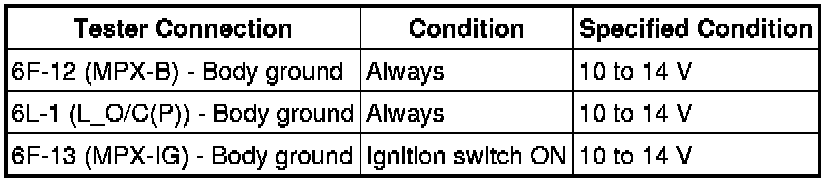

Standard voltage:

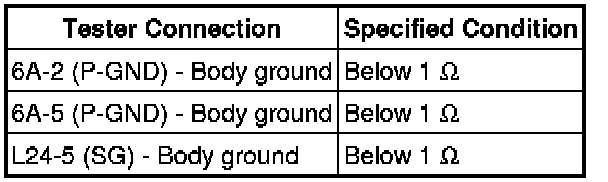

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR

OK -- REPLACE LUGGAGE ROOM JUNCTION BLOCK
