CD Cannot Be Inserted / Played or CD is Ejected Right After Insertion

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Navigation System for DVD): CD cannot be Inserted / Played or CD is Ejected Right After Insertion
- CD cannot be Inserted / Played or CD is Ejected Right After Insertion

INSEPCTION PROCEDURE

PROCEDURE

1. CHECK IF A PROPER CD IS INSERTED

(a) Make sure that the CD is a normal audio CD, and that it is not deformed, flawed, stained, burred or otherwise defective.

OK:

Normal audio CD.

HINT
* Translucent or uniquely-shaped CDs cannot be played.
* CDs for personal computers (with music recorded in) and CD-Rs cannot be played.
* Use an adapter to play 8 cm (3.2 in.) CDs.
NG -- CD IS FAULTY
OK -- Continue to next step.

2. CHECK THAT CD IS INSERTED PROPERLY

(a) Check whether or not the CD is inserted upside down.

OK:

CD is properly inserted.

NG -- SET CD PROPERLY
OK -- Continue to next step.

3. CLEAN CD

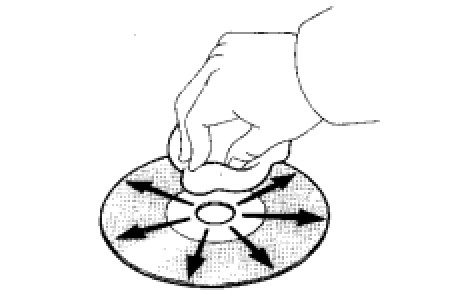

(a) Clean the disc by wiping the CD's underside radially with a soft cloth.





OK:

Malfunction disappears.

NOTICE:
Do not use a conventional record cleaner or anti-static preservative.

OK -- CD WAS DIRTY
NG -- Continue to next step.

4. REPLACE CD WITH ANOTHER AND RECHECK

(a) Replace the CD with a normal one and check if the same problem occurs again.

OK:

Malfunction disappears.

NG -- REPLACE RADIO RECEIVER ASSEMBLY

OK -- CD IS FAULTY
