USB Device Or "iPod" Cannot Charge

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Navigation System for HDD): USB Device or "iPod" cannot Charge
- USB Device or "iPod" cannot Charge

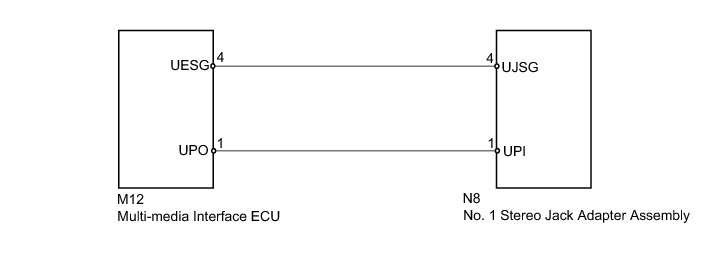

WIRING DIAGRAM





INSEPCTION PROCEDURE

PROCEDURE

1. REPLACE USB DEVICE OR "iPod"

(a) Disconnect the USB device or "iPod" from the No. 1 stereo jack adapter assembly.

(b) Turn the ignition switch off.

HINT
When this malfunction occurs, it is necessary to turn off the ignition switch to make it possible for the vehicle to recognize a new device when it is connected.

(c) Turn the ignition switch to ACC.

(d) Connect a known good USB device or "iPod" to the No. 1 stereo jack adapter assembly.

OK:

USB device or "iPod" charge.

NG -- INSPECT MULTI-MEDIA INTERFACE ECU

OK -- USB DEVICE OR "iPod" WAS DEFECTIVE

2. INSPECT MULTI-MEDIA INTERFACE ECU

(a) Disconnect the No. 1 stereo jack adapter assembly connector.

(b) Measure the voltage according to the value(s) in the table below.





Standard Voltage:





Text in Illustration





NG -- CHECK HARNESS AND CONNECTOR (MULTI-MEDIA INTERFACE ECU - NO. 1 STEREO JACK ADAPTER)

OK -- REPLACE NO. 1 STEREO JACK ADAPTER ASSEMBLY

3. CHECK HARNESS AND CONNECTOR (MULTI-MEDIA INTERFACE ECU - NO. 1 STEREO JACK ADAPTER)

(a) Disconnect the multi-media interface ECU connector.

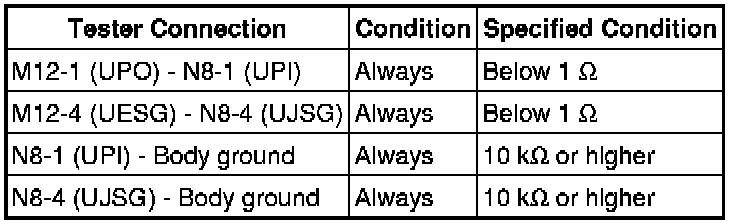

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
